Datasheet ERA-5+ Full Version (Mini-Circuits) - 6

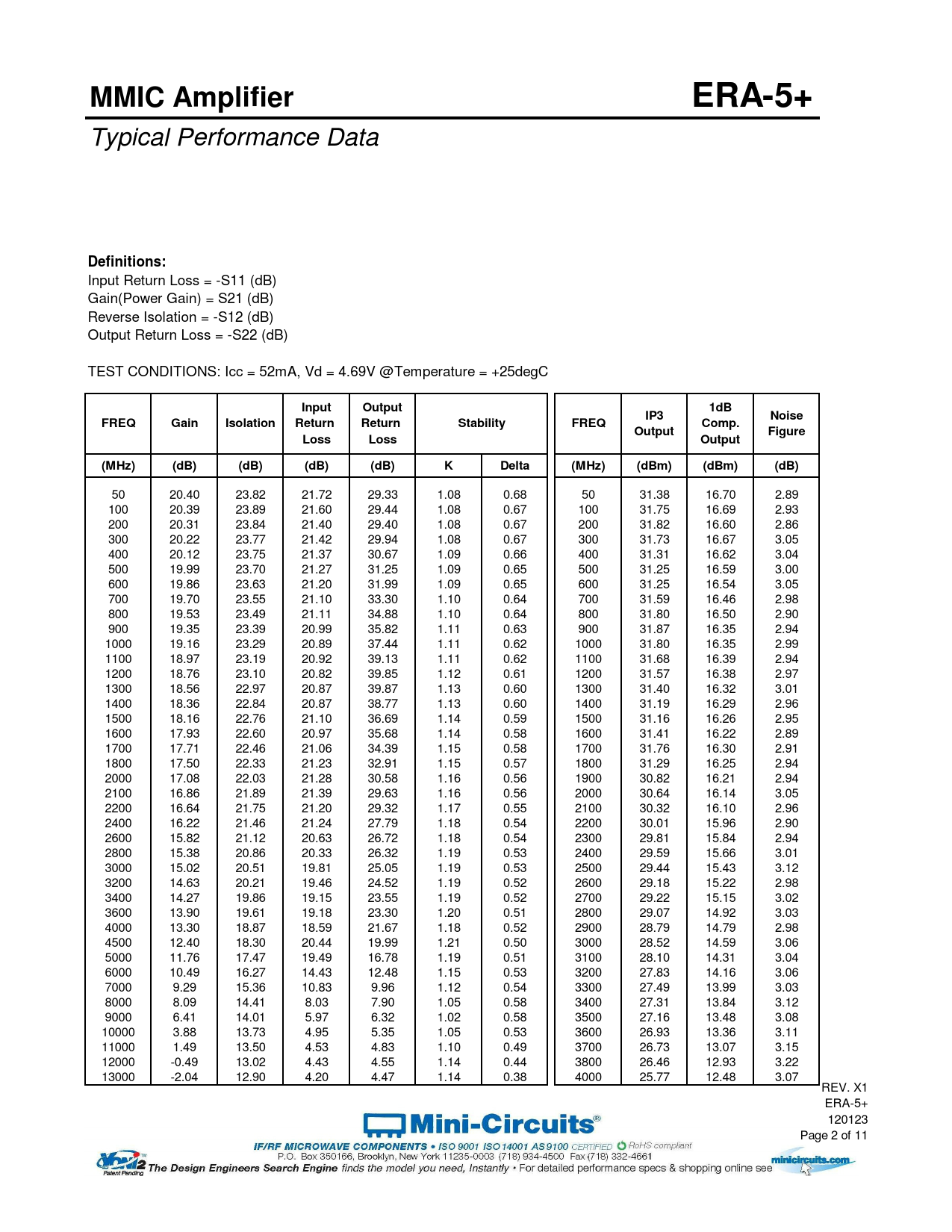

MMIC Amplifier ERA-5+
Typical Performance Data
Definitions:
Input Return Loss = -S11 (dB) Gain(Power Gain) = S21 (dB) Reverse Isolation = -S12 (dB) Output Return Loss = -S22 (dB) TEST CONDITIONS: Icc = 52mA, Vd = 4.69V @Temperature = +25degC
Input Output 1dB IP3 Noise FREQ Gain Isolation Return Return Stability FREQ Comp. Output Figure Loss Loss Output (MHz) (dB) (dB) (dB) (dB) K Delta (MHz) (dBm) (dBm) (dB)
50 20.40 23.82 21.72 29.33 1.08 0.68 50 31.38 16.70 2.89 100 20.39 23.89 21.60 29.44 1.08 0.67 100 31.75 16.69 2.93 200 20.31 23.84 21.40 29.40 1.08 0.67 200 31.82 16.60 2.86 300 20.22 23.77 21.42 29.94 1.08 0.67 300 31.73 16.67 3.05 400 20.12 23.75 21.37 30.67 1.09 0.66 400 31.31 16.62 3.04 500 19.99 23.70 21.27 31.25 1.09 0.65 500 31.25 16.59 3.00 600 19.86 23.63 21.20 31.99 1.09 0.65 600 31.25 16.54 3.05 700 19.70 23.55 21.10 33.30 1.10 0.64 700 31.59 16.46 2.98 800 19.53 23.49 21.11 34.88 1.10 0.64 800 31.80 16.50 2.90 900 19.35 23.39 20.99 35.82 1.11 0.63 900 31.87 16.35 2.94 1000 19.16 23.29 20.89 37.44 1.11 0.62 1000 31.80 16.35 2.99 1100 18.97 23.19 20.92 39.13 1.11 0.62 1100 31.68 16.39 2.94 1200 18.76 23.10 20.82 39.85 1.12 0.61 1200 31.57 16.38 2.97 1300 18.56 22.97 20.87 39.87 1.13 0.60 1300 31.40 16.32 3.01 1400 18.36 22.84 20.87 38.77 1.13 0.60 1400 31.19 16.29 2.96 1500 18.16 22.76 21.10 36.69 1.14 0.59 1500 31.16 16.26 2.95 1600 17.93 22.60 20.97 35.68 1.14 0.58 1600 31.41 16.22 2.89 1700 17.71 22.46 21.06 34.39 1.15 0.58 1700 31.76 16.30 2.91 1800 17.50 22.33 21.23 32.91 1.15 0.57 1800 31.29 16.25 2.94 2000 17.08 22.03 21.28 30.58 1.16 0.56 1900 30.82 16.21 2.94 2100 16.86 21.89 21.39 29.63 1.16 0.56 2000 30.64 16.14 3.05 2200 16.64 21.75 21.20 29.32 1.17 0.55 2100 30.32 16.10 2.96 2400 16.22 21.46 21.24 27.79 1.18 0.54 2200 30.01 15.96 2.90 2600 15.82 21.12 20.63 26.72 1.18 0.54 2300 29.81 15.84 2.94 2800 15.38 20.86 20.33 26.32 1.19 0.53 2400 29.59 15.66 3.01 3000 15.02 20.51 19.81 25.05 1.19 0.53 2500 29.44 15.43 3.12 3200 14.63 20.21 19.46 24.52 1.19 0.52 2600 29.18 15.22 2.98 3400 14.27 19.86 19.15 23.55 1.19 0.52 2700 29.22 15.15 3.02 3600 13.90 19.61 19.18 23.30 1.20 0.51 2800 29.07 14.92 3.03 4000 13.30 18.87 18.59 21.67 1.18 0.52 2900 28.79 14.79 2.98 4500 12.40 18.30 20.44 19.99 1.21 0.50 3000 28.52 14.59 3.06 5000 11.76 17.47 19.49 16.78 1.19 0.51 3100 28.10 14.31 3.04 6000 10.49 16.27 14.43 12.48 1.15 0.53 3200 27.83 14.16 3.06 7000 9.29 15.36 10.83 9.96 1.12 0.54 3300 27.49 13.99 3.03 8000 8.09 14.41 8.03 7.90 1.05 0.58 3400 27.31 13.84 3.12 9000 6.41 14.01 5.97 6.32 1.02 0.58 3500 27.16 13.48 3.08 10000 3.88 13.73 4.95 5.35 1.05 0.53 3600 26.93 13.36 3.11 11000 1.49 13.50 4.53 4.83 1.10 0.49 3700 26.73 13.07 3.15 12000 -0.49 13.02 4.43 4.55 1.14 0.44 3800 26.46 12.93 3.22 13000 -2.04 12.90 4.20 4.47 1.14 0.38 4000 25.77 12.48 3.07 REV. X1 ERA-5+ 120123 Page 2 of 11 Document Outline ERA-5+ Data Sheet View Data View Graphs Case Style Tape and Reel PCB Layout Eval Board Enviromental Ratings
