Micrel, Inc. MIC4680 Bode Plots
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Micrel, Inc. MIC4680 Bode Plots

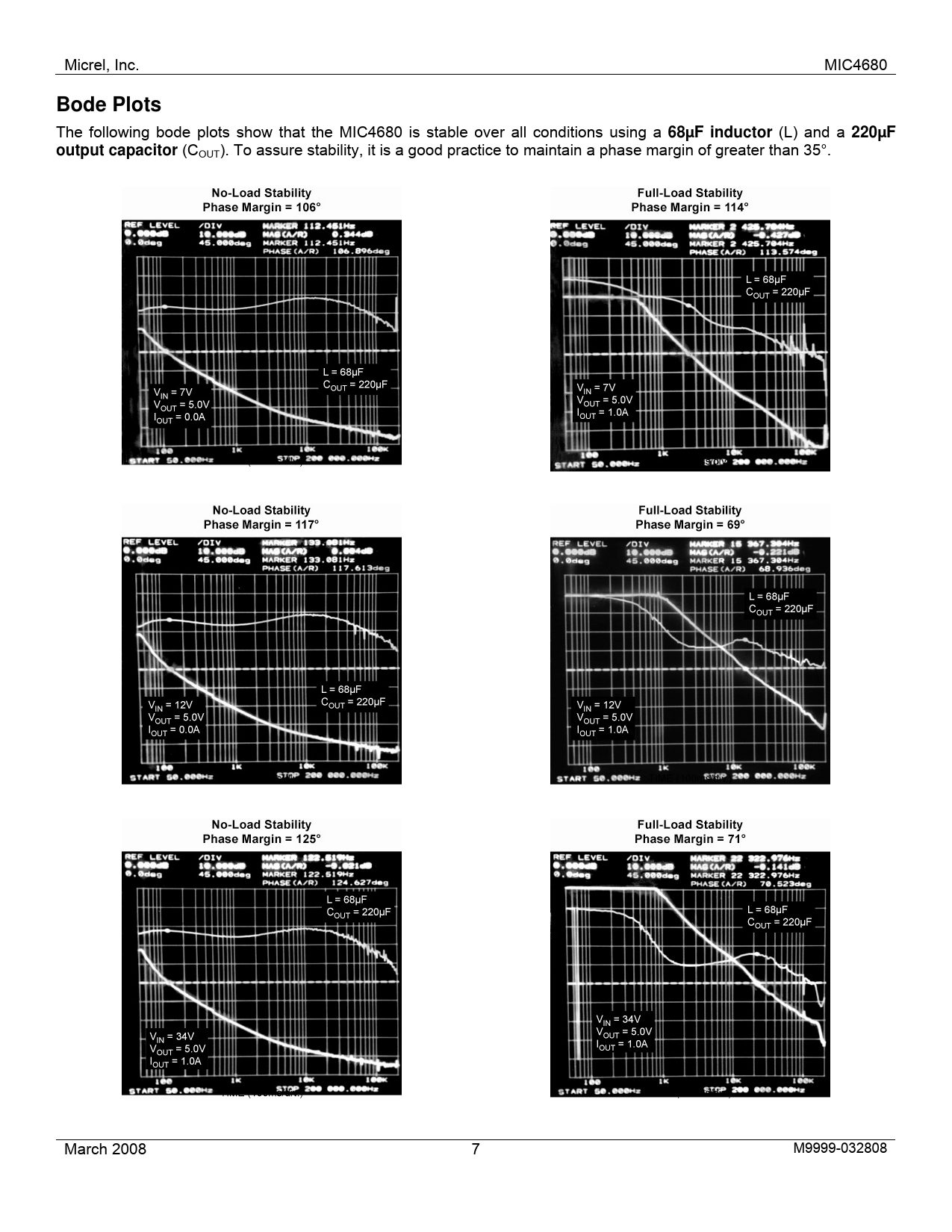

The following bode plots show that the MIC4680 is stable over all conditions using a 68µF inductor (L) and a 220µF
output capacitor (COUT). To assure stability, it is a good practice to maintain a phase margin of greater than 35°. March 2008 7 M9999-032808
The following bode plots show that the MIC4680 is stable over all conditions using a 68µF inductor (L) and a 220µF
output capacitor (COUT). To assure stability, it is a good practice to maintain a phase margin of greater than 35°. March 2008 7 M9999-032808
