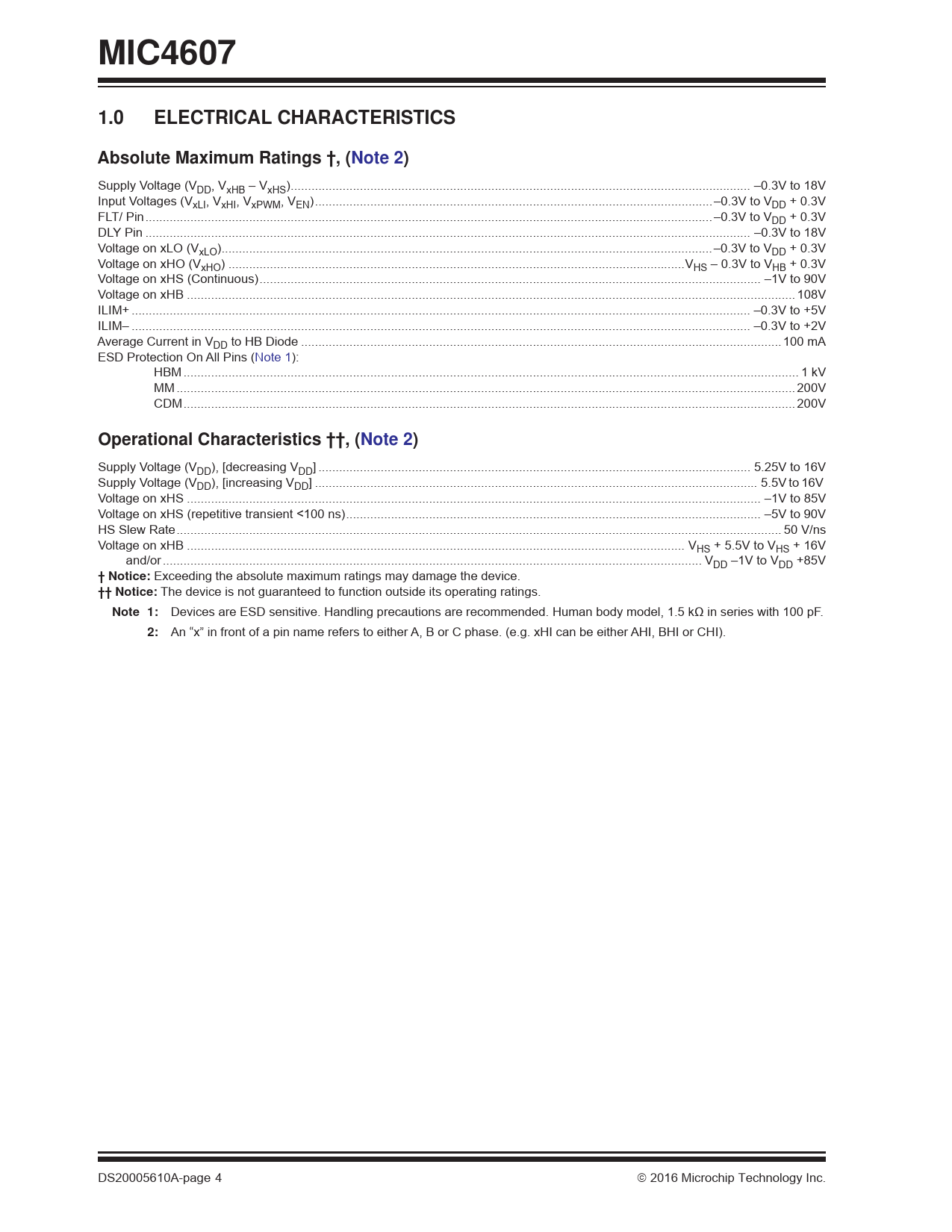

MIC4607. 1.0 ELECTRICAL CHARACTERISTICS Absolute Maximum Ratings †, (Note 2)
Textversion des Dokuments
MIC4607
1.0 ELECTRICAL CHARACTERISTICS Absolute Maximum Ratings †, (Note 2)
Supply Voltage (VDD, VxHB – VxHS). –0.3V to 18V
Input Voltages (VxLI, VxHI, VxPWM, VEN). –0.3V to VDD + 0.3V
FLT/ Pin. –0.3V to VDD + 0.3V
DLY Pin . –0.3V to 18V
Voltage on xLO (VxLO). –0.3V to VDD + 0.3V
Voltage on xHO (VxHO) .VHS – 0.3V to VHB + 0.3V
Voltage on xHS (Continuous). –1V to 90V
Voltage on xHB . 108V
ILIM+ . –0.3V to +5V
ILIM– . –0.3V to +2V
Average Current in VDD to HB Diode . 100 mA
ESD Protection On All Pins (Note 1):
HBM . 1 kV
MM . 200V
CDM. 200V Operational Characteristics ††, (Note 2)
Supply Voltage (VDD), [decreasing VDD] . 5.25V to 16V
Supply Voltage (VDD), [increasing VDD] . 5.5V to 16V
Voltage on xHS . –1V to 85V
Voltage on xHS (repetitive transient
