Datasheet ADIS16364 (Analog Devices) - 8
| Hersteller | Analog Devices |
| Beschreibung | Six Degrees of Freedom Inertial Sensor |
| Seiten / Seite | 21 / 8 — Data Sheet. ADIS16364. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. TOP … |
| Revision | F |
| Dateiformat / Größe | PDF / 397 Kb |
| Dokumentensprache | Englisch |
Data Sheet. ADIS16364. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. TOP VIEW. (Not to Scale). _ADC. IO3. IO1. IO2. DNC. AUX. _DAC. IO4
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 8

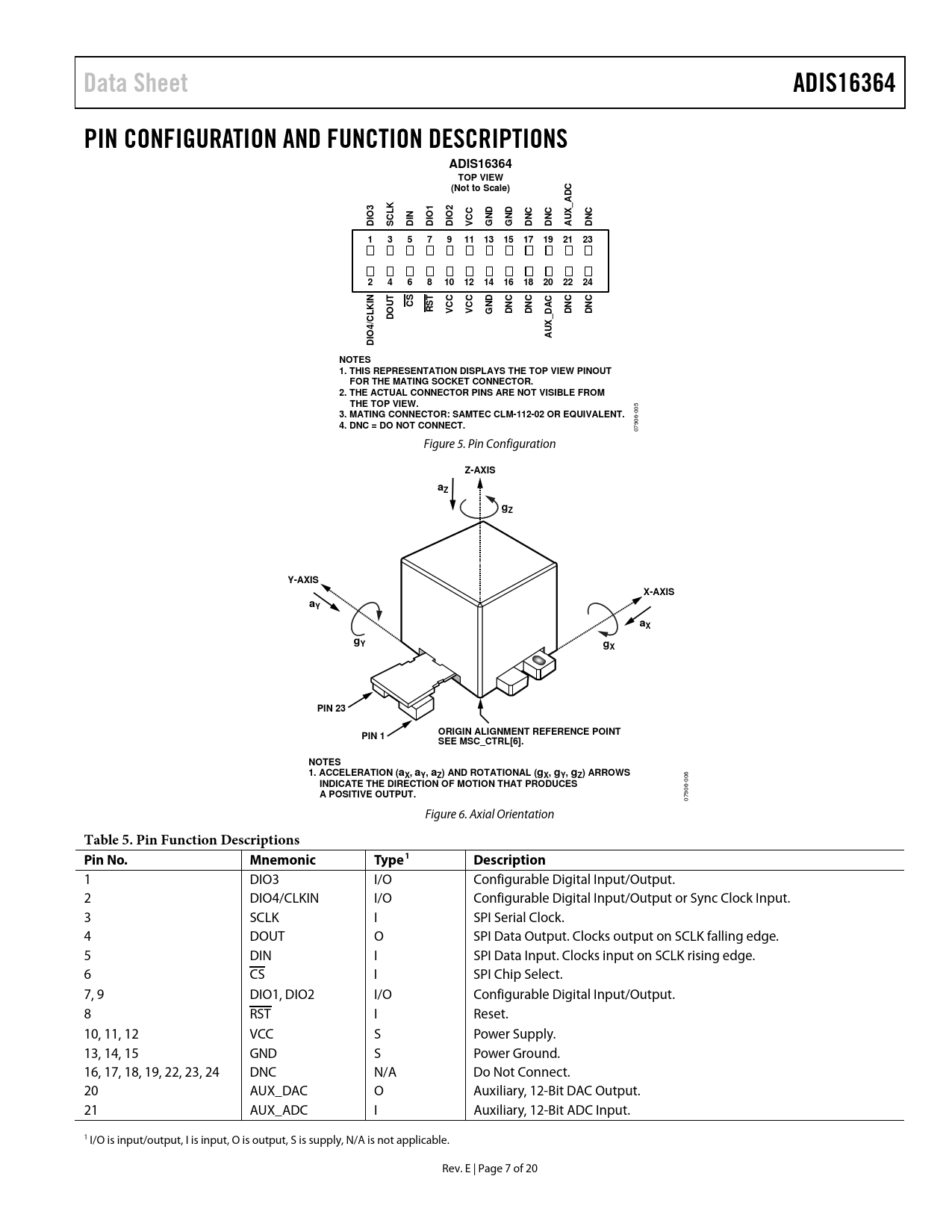

Data Sheet ADIS16364 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS ADIS16364 TOP VIEW (Not to Scale) K _ADC IO3 CL N IO1 IO2 CC ND ND D S DI D D V G G DNC DNC AUX DNC 1 3 5 7 9 11 13 15 17 19 21 23 2 4 6 8 10 12 14 16 18 20 22 24 IN T UT CS CC CC ND LK RS V V G DNC DNC DNC DNC DO _DAC /C IO4 AUX D NOTES 1. THIS REPRESENTATION DISPLAYS THE TOP VIEW PINOUT FOR THE MATING SOCKET CONNECTOR. 2. THE ACTUAL CONNECTOR PINS ARE NOT VISIBLE FROM THE TOP VIEW. 3. MATING CONNECTOR: SAMTEC CLM-112-02 OR EQUIVALENT.
005
4. DNC = DO NOT CONNECT.
07906- Figure 5. Pin Configuration
Z-AXIS aZ gZ Y-AXIS X-AXIS aY aX gY gX PIN 23 ORIGIN ALIGNMENT REFERENCE POINT PIN 1 SEE MSC_CTRL[6]. NOTES 1. ACCELERATION (aX, aY, aZ) AND ROTATIONAL (gX, gY, gZ) ARROWS INDICATE THE DIRECTION OF MOTION THAT PRODUCES
006
A POSITIVE OUTPUT.
07906- Figure 6. Axial Orientation
Table 5. Pin Function Descriptions Pin No. Mnemonic Type1 Description
1 DIO3 I/O Configurable Digital Input/Output. 2 DIO4/CLKIN I/O Configurable Digital Input/Output or Sync Clock Input. 3 SCLK I SPI Serial Clock. 4 DOUT O SPI Data Output. Clocks output on SCLK falling edge. 5 DIN I SPI Data Input. Clocks input on SCLK rising edge. 6 CS I SPI Chip Select. 7, 9 DIO1, DIO2 I/O Configurable Digital Input/Output. 8 RST I Reset. 10, 11, 12 VCC S Power Supply. 13, 14, 15 GND S Power Ground. 16, 17, 18, 19, 22, 23, 24 DNC N/A Do Not Connect. 20 AUX_DAC O Auxiliary, 12-Bit DAC Output. 21 AUX_ADC I Auxiliary, 12-Bit ADC Input. 1 I/O is input/output, I is input, O is output, S is supply, N/A is not applicable. Rev. E | Page 7 of 20 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Timing Specifications Timing Diagrams Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Basic Operation Reading Sensor Data Device Configuration Memory Map Burst Read Data Collection Output Data Registers Calibration Manual Bias Calibration Gyroscope Automatic Bias Null Calibration Gyroscope Precision Automatic Bias Null Calibration Restoring Factory Calibration Linear Acceleration Bias Compensation (Gyroscope) Operational Control Global Commands Internal Sample Rate Power Management Sensor Bandwidth Digital Filtering Dynamic Range Input/Output Functions General-Purpose I/O Input Clock Configuration Data Ready I/O Indicator Auxiliary DAC Diagnostics Self-Test Memory Test Status Alarm Registers Product Identification Applications Information Installation/Handling Gyroscope Bias Optimization Input ADC Channel Interface Printed Circuit Board (PCB) Outline Dimensions Ordering Guide
