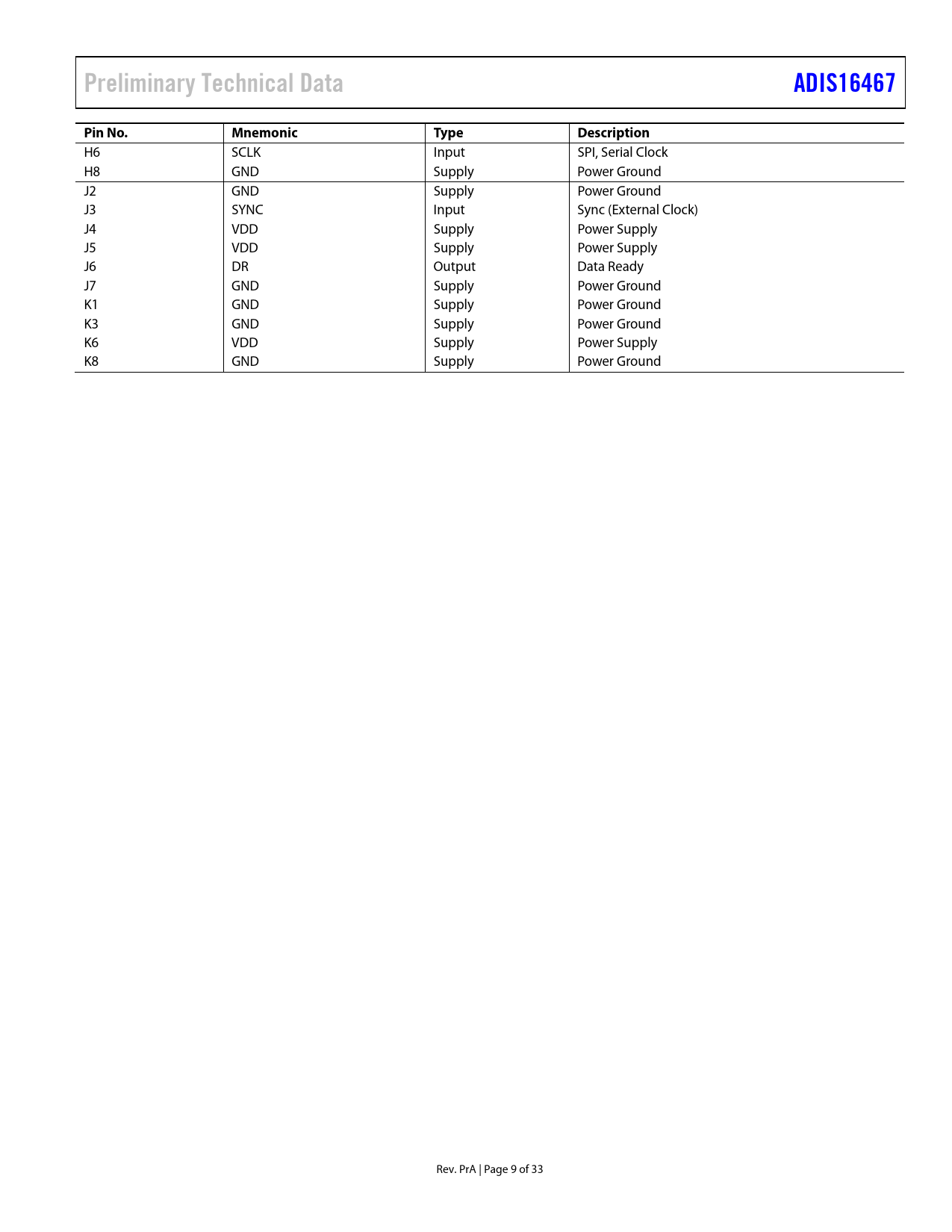

Preliminary Technical Data. ADIS16467. Pin No. Mnemonic. Type. Description
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Preliminary Technical Data ADIS16467 Pin No. Mnemonic Type Description
H6 SCLK Input SPI, Serial Clock H8 GND Supply Power Ground J2 GND Supply Power Ground J3 SYNC Input Sync (External Clock) J4 VDD Supply Power Supply J5 VDD Supply Power Supply J6 DR Output Data Ready J7 GND Supply Power Ground K1 GND Supply Power Ground K3 GND Supply Power Ground K6 VDD Supply Power Supply K8 GND Supply Power Ground Rev. PrA | Page 9 of 33
