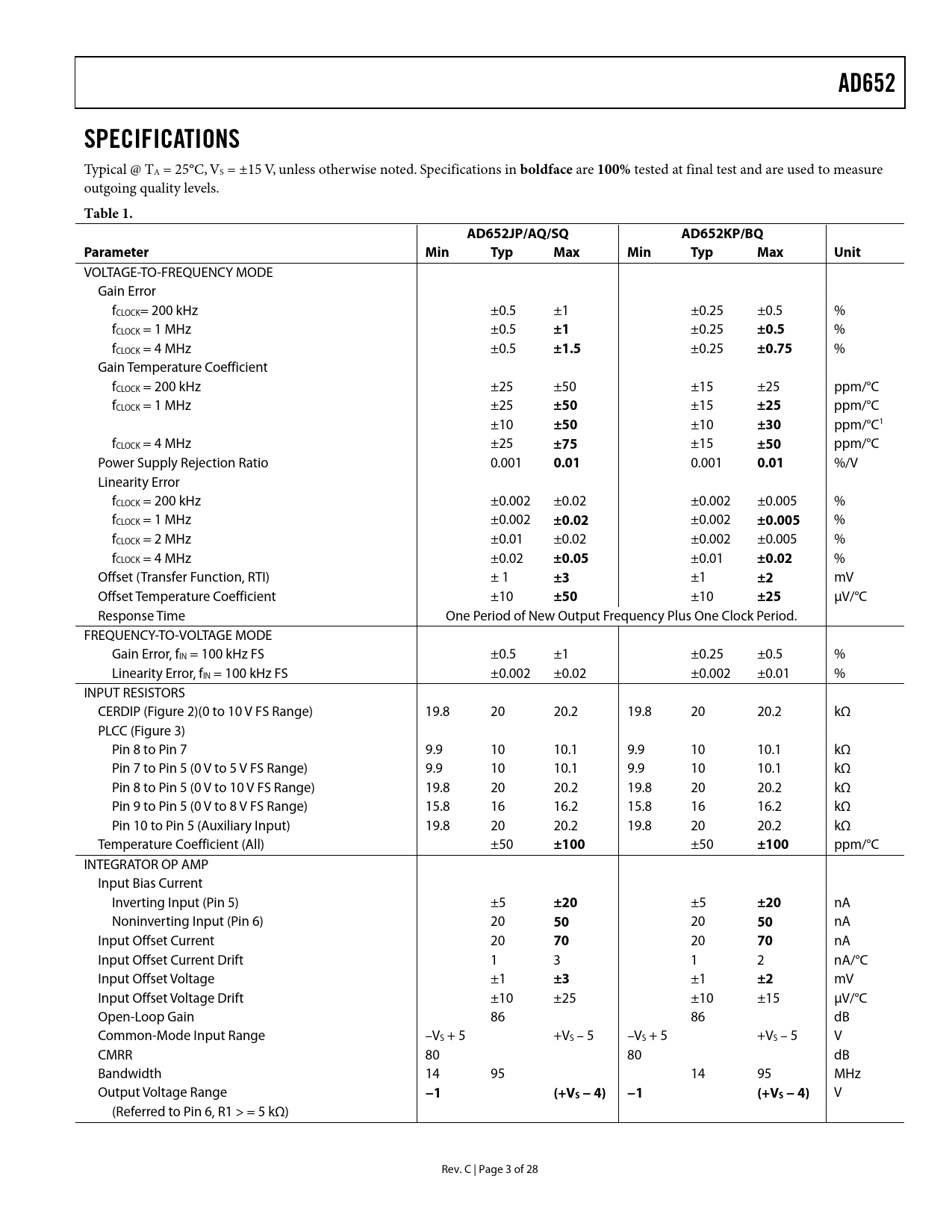

AD652 SPECIFICATIONS
Typical @ TA = 25°C, VS = ±15 V, unless otherwise noted. Specifications in
boldface
are
100%
tested at final test and are used to measure outgoing quality levels.
Table 1. AD652JP/AQ/SQ AD652KP/BQ Parameter Min Typ Max Min Typ Max Unit
VOLTAGE-TO-FREQUENCY MODE Gain Error fCLOCK= 200 kHz ±0.5 ±1 ±0.25 ±0.5 % fCLOCK = 1 MHz ±0.5
±1
±0.25
±0.5
% fCLOCK = 4 MHz ±0.5
±1.5
±0.25
±0.75
% Gain Temperature Coefficient fCLOCK = 200 kHz ±25 ±50 ±15 ±25 ppm/°C fCLOCK = 1 MHz ±25
±50
±15
±25
ppm/°C ±10
±50
±10
±30
ppm/°C1 fCLOCK = 4 MHz ±25
±75
±15
±50
ppm/°C Power Supply Rejection Ratio 0.001
0.01
0.001
0.01
%/V Linearity Error fCLOCK = 200 kHz ±0.002 ±0.02 ±0.002 ±0.005 % fCLOCK = 1 MHz ±0.002
±0.02
±0.002
±0.005
% fCLOCK = 2 MHz ±0.01 ±0.02 ±0.002 ±0.005 % fCLOCK = 4 MHz ±0.02
±0.05
±0.01
±0.02
% Offset (Transfer Function, RTI) ± 1
±3
±1
±2
mV Offset Temperature Coefficient ±10
±50
±10
±25
µV/°C Response Time One Period of New Output Frequency Plus One Clock Period. FREQUENCY-TO-VOLTAGE MODE Gain Error, fIN = 100 kHz FS ±0.5 ±1 ±0.25 ±0.5 % Linearity Error, fIN = 100 kHz FS ±0.002 ±0.02 ±0.002 ±0.01 % INPUT RESISTORS CERDIP (Figure 2)(0 to 10 V FS Range) 19.8 20 20.2 19.8 20 20.2 kΩ PLCC (Figure 3) Pin 8 to Pin 7 9.9 10 10.1 9.9 10 10.1 kΩ Pin 7 to Pin 5 (0 V to 5 V FS Range) 9.9 10 10.1 9.9 10 10.1 kΩ Pin 8 to Pin 5 (0 V to 10 V FS Range) 19.8 20 20.2 19.8 20 20.2 kΩ Pin 9 to Pin 5 (0 V to 8 V FS Range) 15.8 16 16.2 15.8 16 16.2 kΩ Pin 10 to Pin 5 (Auxiliary Input) 19.8 20 20.2 19.8 20 20.2 kΩ Temperature Coefficient (All) ±50
±100
±50
±100
ppm/°C INTEGRATOR OP AMP Input Bias Current Inverting Input (Pin 5) ±5
±20
±5
±20
nA Noninverting Input (Pin 6) 20
50
20
50
nA Input Offset Current 20
70
20
70
nA Input Offset Current Drift 1 3 1 2 nA/°C Input Offset Voltage ±1
±3
±1
±2
mV Input Offset Voltage Drift ±10 ±25 ±10 ±15 µV/°C Open-Loop Gain 86 86 dB Common-Mode Input Range –VS + 5 +VS – 5 –VS + 5 +VS – 5 V CMRR 80 80 dB Bandwidth 14 95 14 95 MHz Output Voltage Range
−1 (+VS − 4) −1 (+VS − 4)
V (Referred to Pin 6, R1 > = 5 kΩ) Rev. C | Page 3 of 28 Document Outline FEATURES PRODUCT DESCRIPTION PRODUCT HIGHLIGHTS FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION DEFINITIONS OF SPECIFICATIONS THEORY OF OPERATION OVERRANGE SVFC CONNECTION FOR DUAL SUPPLY, POSITIVE INPUT VOLTAGES SVFC CONNECTIONS FOR NEGATIVE INPUT VOLTAGES SVFC CONNECTION FOR BIPOLAR INPUT VOLTAGES PLCC CONNECTIONS GAIN AND OFFSET CALIBRATION GAIN PERFORMANCE REFERENCE NOISE DIGITAL INTERFACING CONSIDERATIONS COMPONENT SELECTION DIGITAL GROUND SINGLE-SUPPLY OPERATION FREQUENCY-TO-VOLTAGE CONVERTER DECOUPLING AND GROUNDING FREQUENCY OUTPUT MULTIPLIER SINGLE-LINE MULTIPLEXED DATA TRANSMISSION Multiplexer Transmitter SVFC Demultiplexer Analog Signal Reconstruction ISOLATED FRONT END A-TO-D CONVERSION DELTA MODULATOR BRIDGE TRANSDUCER INTERFACE OUTLINE DIMENSIONS ORDERING GUIDE
