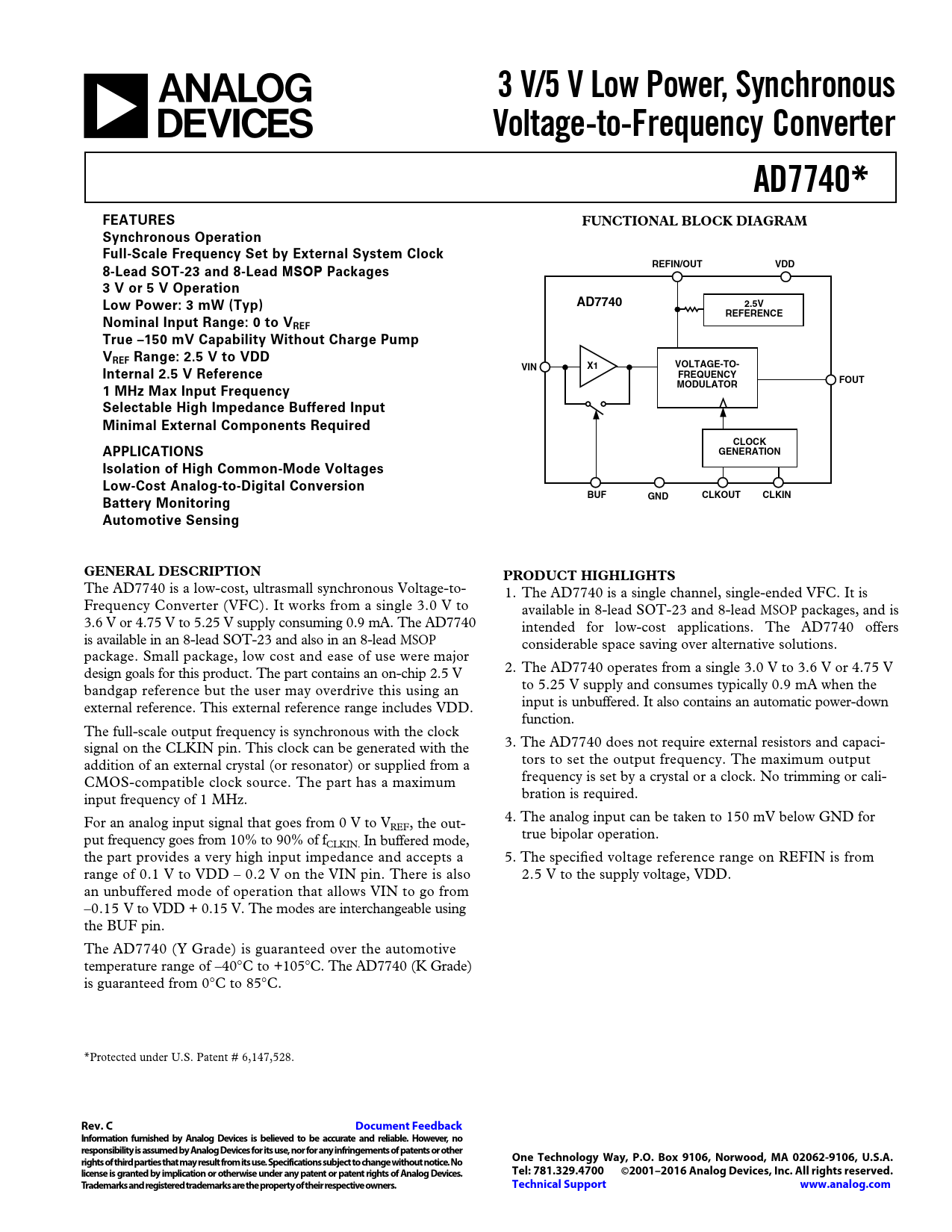

Datasheet AD7740 (Analog Devices)

a
3 V/5 V Low Power, Synchronous Voltage-to-Frequency Converter AD7740* FEATURES FUNCTIONAL BLOCK DIAGRAM Synchronous Operation Full-Scale Frequency Set by External System Clock REFIN/OUT VDD 8-Lead SOT-23 and 8-Lead MSOP Packages 3 V or 5 V Operation AD7740 2.5V Low Power: 3 mW (Typ) REFERENCE Nominal Input Range: 0 to VREF True –150 mV Capability Without Charge Pump VREF Range: 2.5 V to VDD VIN X1 VOLTAGE-TO- Internal 2.5 V Reference FREQUENCY FOUT MODULATOR 1 MHz Max Input Frequency Selectable High Impedance Buffered Input Minimal External Components Required CLOCK APPLICATIONS GENERATION Isolation of High Common-Mode Voltages Low-Cost Analog-to-Digital Conversion BUF GND CLKOUT CLKIN Battery Monitoring Automotive Sensing GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The AD7740 is a low-cost, ultrasmall synchronous Voltage-to- 1. The AD7740 is a single channel, single-ended VFC. It is Frequency Converter (VFC). It works from a single 3.0 V to available in 8-lead SOT-23 and 8-lead MSOP packages, and is 3.6 V or 4.75 V to 5.25 V supply consuming 0.9 mA. The AD7740 intended for low-cost applications. The AD7740 offers is available in an 8-lead SOT-23 and also in an 8-lead MSOP considerable space saving over alternative solutions. package. Small package, low cost and ease of use were major design goals for this product. The part contains an on-chip 2.5 V 2. The AD7740 operates from a single 3.0 V to 3.6 V or 4.75 V bandgap reference but the user may overdrive this using an to 5.25 V supply and consumes typically 0.9 mA when the external reference. This external reference range includes VDD. input is unbuffered. It also contains an automatic power-down function. The full-scale output frequency is synchronous with the clock signal on the CLKIN pin. This clock can be generated with the 3. The AD7740 does not require external resistors and capaci- addition of an external crystal (or resonator) or supplied from a tors to set the output frequency. The maximum output CMOS-compatible clock source. The part has a maximum frequency is set by a crystal or a clock. No trimming or cali- input frequency of 1 MHz. bration is required. For an analog input signal that goes from 0 V to V 4. The analog input can be taken to 150 mV below GND for REF, the out- put frequency goes from 10% to 90% of f true bipolar operation. CLKIN. In buffered mode, the part provides a very high input impedance and accepts a 5. The specified voltage reference range on REFIN is from range of 0.1 V to VDD – 0.2 V on the VIN pin. There is also 2.5 V to the supply voltage, VDD. an unbuffered mode of operation that allows VIN to go from –0.15 V to VDD + 0.15 V. The modes are interchangeable using the BUF pin. The AD7740 (Y Grade) is guaranteed over the automotive temperature range of –40°C to +105°C. The AD7740 (K Grade) is guaranteed from 0°C to 85°C. *Protected under U.S. Patent # 6,147,528.
Rev. C Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2001–2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
