Datasheet ADXL335 (Analog Devices)
| Hersteller | Analog Devices |
| Beschreibung | Small, Low Power, 3-Axis ±3 g Accelerometer |
| Seiten / Seite | 17 / 1 — Small, Low Power, 3-Axis ±3 g. Accelerometer. ADXL335. FEATURES. GENERAL … |
| Revision | B |
| Dateiformat / Größe | PDF / 384 Kb |
| Dokumentensprache | Englisch |
Small, Low Power, 3-Axis ±3 g. Accelerometer. ADXL335. FEATURES. GENERAL DESCRIPTION. 3-axis sensing. Small, low profile package
Modelllinie für dieses Datenblatt
Textversion des Dokuments

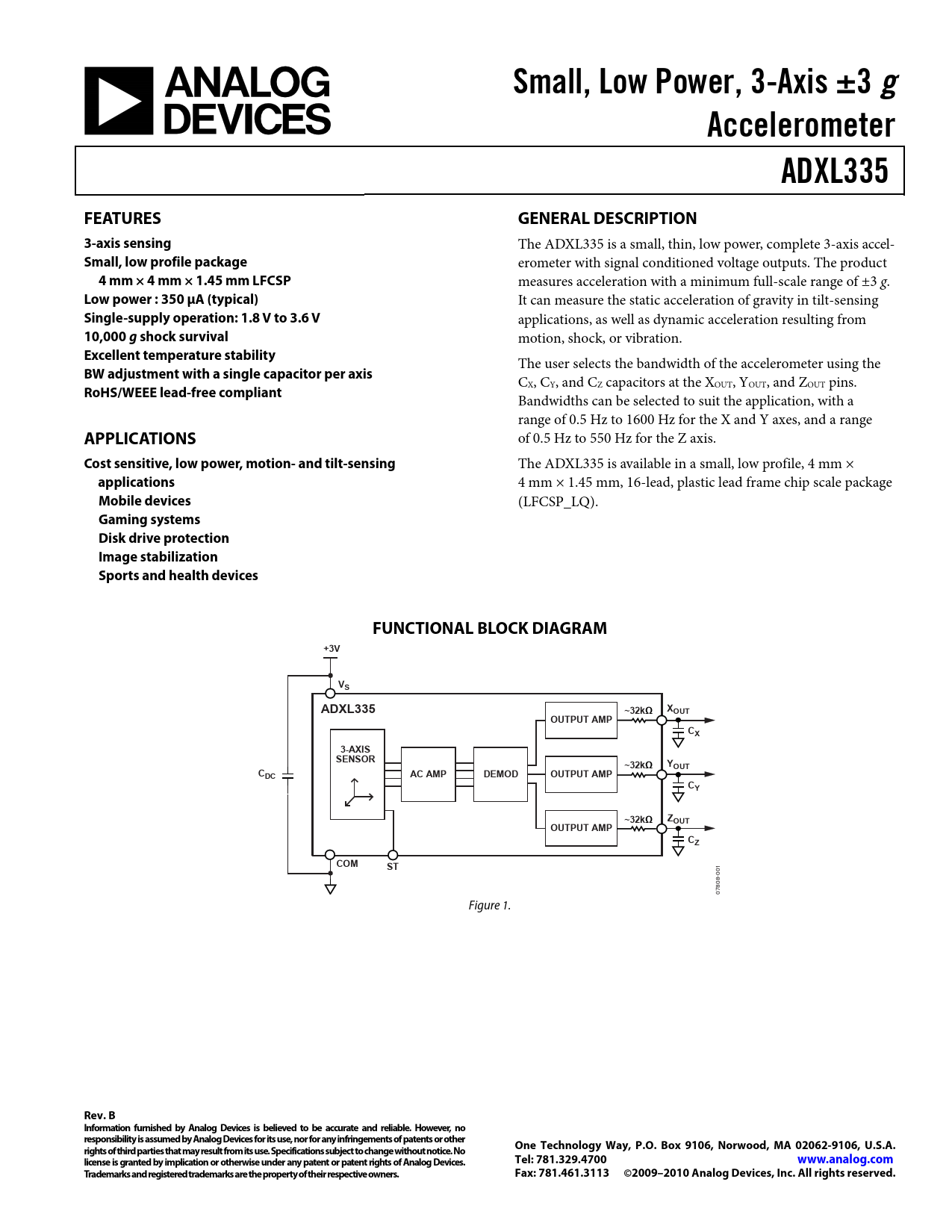

Small, Low Power, 3-Axis ±3 g Accelerometer ADXL335 FEATURES GENERAL DESCRIPTION 3-axis sensing
The ADXL335 is a small, thin, low power, complete 3-axis accel-
Small, low profile package
erometer with signal conditioned voltage outputs. The product
4 mm × 4 mm × 1.45 mm LFCSP
measures acceleration with a minimum full-scale range of ±3 g.
Low power : 350 μA (typical)
It can measure the static acceleration of gravity in tilt-sensing
Single-supply operation: 1.8 V to 3.6 V
applications, as well as dynamic acceleration resulting from
10,000 g shock survival
motion, shock, or vibration.
Excellent temperature stability
The user selects the bandwidth of the accelerometer using the
BW adjustment with a single capacitor per axis
CX, CY, and CZ capacitors at the XOUT, YOUT, and ZOUT pins.
RoHS/WEEE lead-free compliant
Bandwidths can be selected to suit the application, with a range of 0.5 Hz to 1600 Hz for the X and Y axes, and a range
APPLICATIONS
of 0.5 Hz to 550 Hz for the Z axis.
Cost sensitive, low power, motion- and tilt-sensing
The ADXL335 is available in a small, low profile, 4 mm ×
applications
4 mm × 1.45 mm, 16-lead, plastic lead frame chip scale package
Mobile devices
(LFCSP_LQ).
Gaming systems Disk drive protection Image stabilization Sports and health devices FUNCTIONAL BLOCK DIAGRAM +3V VS ADXL335 ~32kΩ XOUT OUTPUT AMP CX 3-AXIS SENSOR ~32kΩ YOUT CDC AC AMP DEMOD OUTPUT AMP CY ~32kΩ ZOUT OUTPUT AMP CZ COM ST
-001 08 78 0 Figure 1.
Rev. B Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2009–2010 Analog Devices, Inc. All rights reserved.
Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION MECHANICAL SENSOR PERFORMANCE APPLICATIONS INFORMATION POWER SUPPLY DECOUPLING SETTING THE BANDWIDTH USING CX, CY, AND CZ SELF-TEST DESIGN TRADE-OFFS FOR SELECTING FILTER CHARACTERISTICS: THE NOISE/BW TRADE-OFF USE WITH OPERATING VOLTAGES OTHER THAN 3 V AXES OF ACCELERATION SENSITIVITY LAYOUT AND DESIGN RECOMMENDATIONS OUTLINE DIMENSIONS ORDERING GUIDE
