Datasheet ADXL345 (Analog Devices) - 3

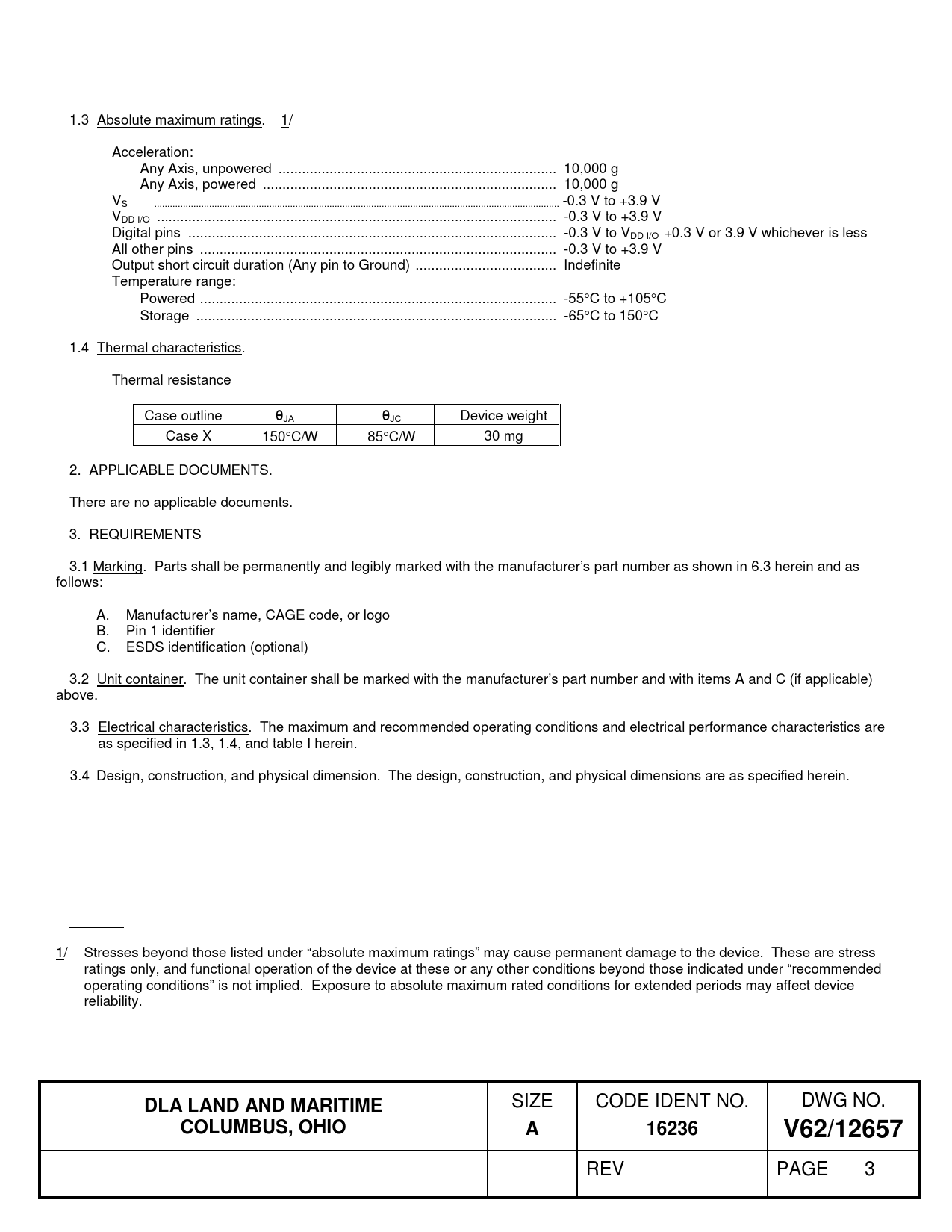

1.3 Absolute maximum ratings. 1/ Acceleration: Any Axis, unpowered ... 10,000 g Any Axis, powered ... 10,000 g VS ... -0.3 V to +3.9 V VDD I/O .. -0.3 V to +3.9 V Digital pins .. -0.3 V to VDD I/O +0.3 V or 3.9 V whichever is less All other pins ... -0.3 V to +3.9 V Output short circuit duration (Any pin to Ground) .. Indefinite Temperature range: Powered ... -55°C to +105°C Storage .. -65°C to 150°C 1.4 Thermal characteristics. Thermal resistance Case outline θJA θJC Device weight Case X 150°C/W 85°C/W 30 mg 2. APPLICABLE DOCUMENTS. There are no applicable documents. 3. REQUIREMENTS 3.1 Marking. Parts shall be permanently and legibly marked with the manufacturer’s part number as shown in 6.3 herein and as follows: A. Manufacturer’s name, CAGE code, or logo B. Pin 1 identifier C. ESDS identification (optional) 3.2 Unit container. The unit container shall be marked with the manufacturer’s part number and with items A and C (if applicable) above. 3.3 Electrical characteristics. The maximum and recommended operating conditions and electrical performance characteristics are as specified in 1.3, 1.4, and table I herein. 3.4 Design, construction, and physical dimension. The design, construction, and physical dimensions are as specified herein. 1/ Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute maximum rated conditions for extended periods may affect device reliability.
