Datasheet ADXL345-EP (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | 3-Axis, ±2 g/±4 g/±8 g/±16 g Digital Accelerometer |
| Seiten / Seite | 12 / 5 — Enhanced Product. ADXL345-EP. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL … |
| Revision | B |
| Dateiformat / Größe | PDF / 359 Kb |
| Dokumentensprache | Englisch |

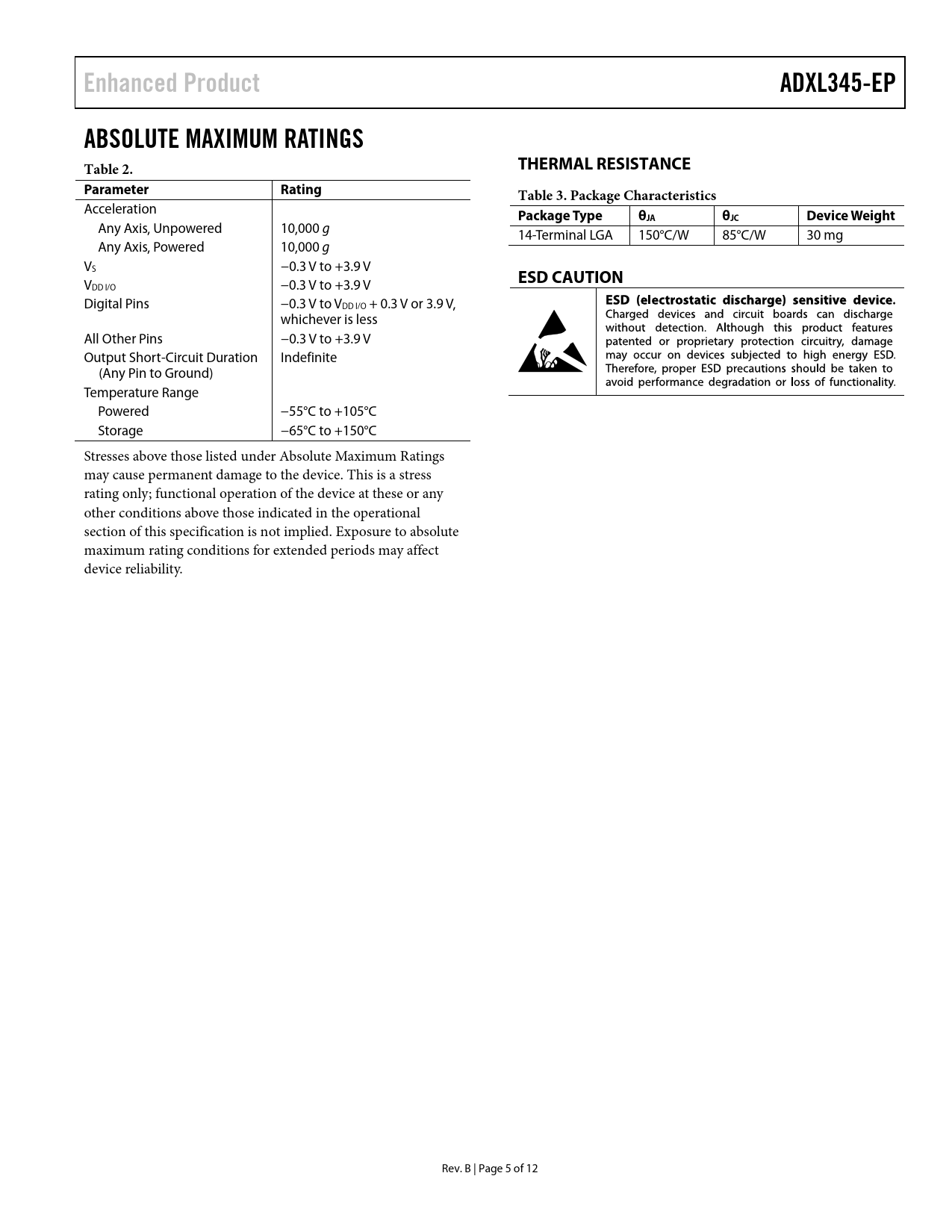

Enhanced Product. ADXL345-EP. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. Parameter. Rating
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Enhanced Product ADXL345-EP ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating Table 3. Package Characteristics
Acceleration
Package Type θJA θJC Device Weight
Any Axis, Unpowered 10,000 g 14-Terminal LGA 150°C/W 85°C/W 30 mg Any Axis, Powered 10,000 g VS −0.3 V to +3.9 V V
ESD CAUTION
DD I/O −0.3 V to +3.9 V Digital Pins −0.3 V to VDD I/O + 0.3 V or 3.9 V, whichever is less All Other Pins −0.3 V to +3.9 V Output Short-Circuit Duration Indefinite (Any Pin to Ground) Temperature Range Powered −55°C to +105°C Storage −65°C to +150°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. B | Page 5 of 12 Document Outline Features Enhanced Product Features Applications General Description Functional Block Diagram Revision History Related Documents Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Outline Dimensions Ordering Guide
