Datasheet ADXL206 (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | Precision, ±5 g, Dual-Axis, High Temperature iMEMS Accelerometer |
| Seiten / Seite | 13 / 6 — Data Sheet. ADXL206. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. COM. 1 … |
| Revision | B |
| Dateiformat / Größe | PDF / 453 Kb |
| Dokumentensprache | Englisch |

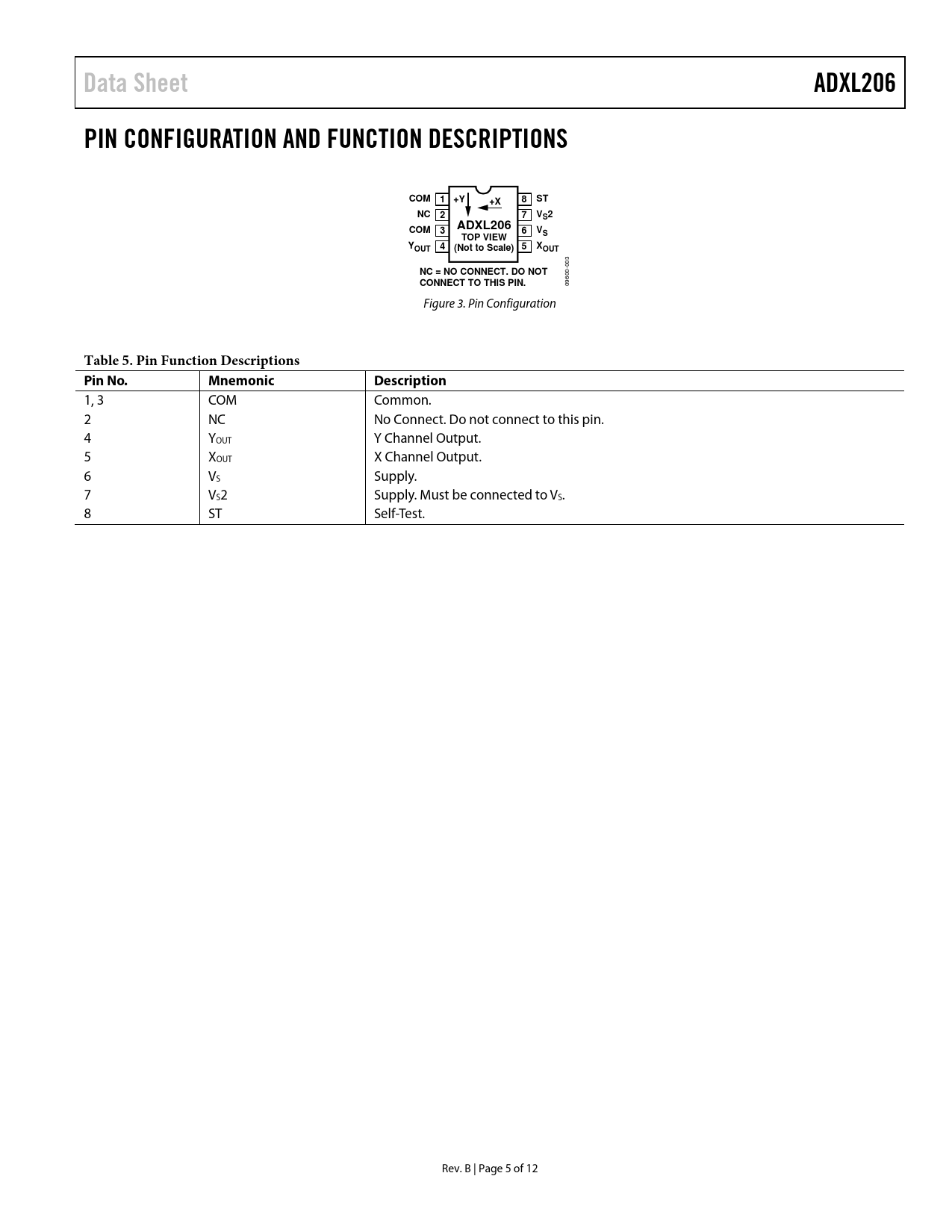

Data Sheet. ADXL206. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. COM. 1 +Y. VS2. TOP VIEW. YOUT 4. (Not to Scale). OUT
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Data Sheet ADXL206 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS COM 1 +Y 8 ST +X NC 2 7 VS2 ADXL206 COM 3 6 VS TOP VIEW YOUT 4 5 X (Not to Scale) OUT
003
NC = NO CONNECT. DO NOT CONNECT TO THIS PIN.
09600- Figure 3. Pin Configuration
Table 5. Pin Function Descriptions Pin No. Mnemonic Description
1, 3 COM Common. 2 NC No Connect. Do not connect to this pin. 4 YOUT Y Channel Output. 5 XOUT X Channel Output. 6 VS Supply. 7 VS2 Supply. Must be connected to VS. 8 ST Self-Test. Rev. B | Page 5 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION PERFORMANCE APPLICATIONS INFORMATION POWER SUPPLY DECOUPLING SETTING THE BANDWIDTH USING CX AND CY SELF-TEST DESIGN TRADE-OFFS FOR SELECTING FILTER CHARACTERISTICS: NOISE/BANDWIDTH TRADE-OFF USING THE ADXL206 WITH OPERATING VOLTAGES OTHER THAN 5 V USING THE ADXL206 AS A DUAL-AXIS TILT SENSOR Dual-Axis Tilt Sensor: Converting Acceleration to Tilt OUTLINE DIMENSIONS ORDERING GUIDE
