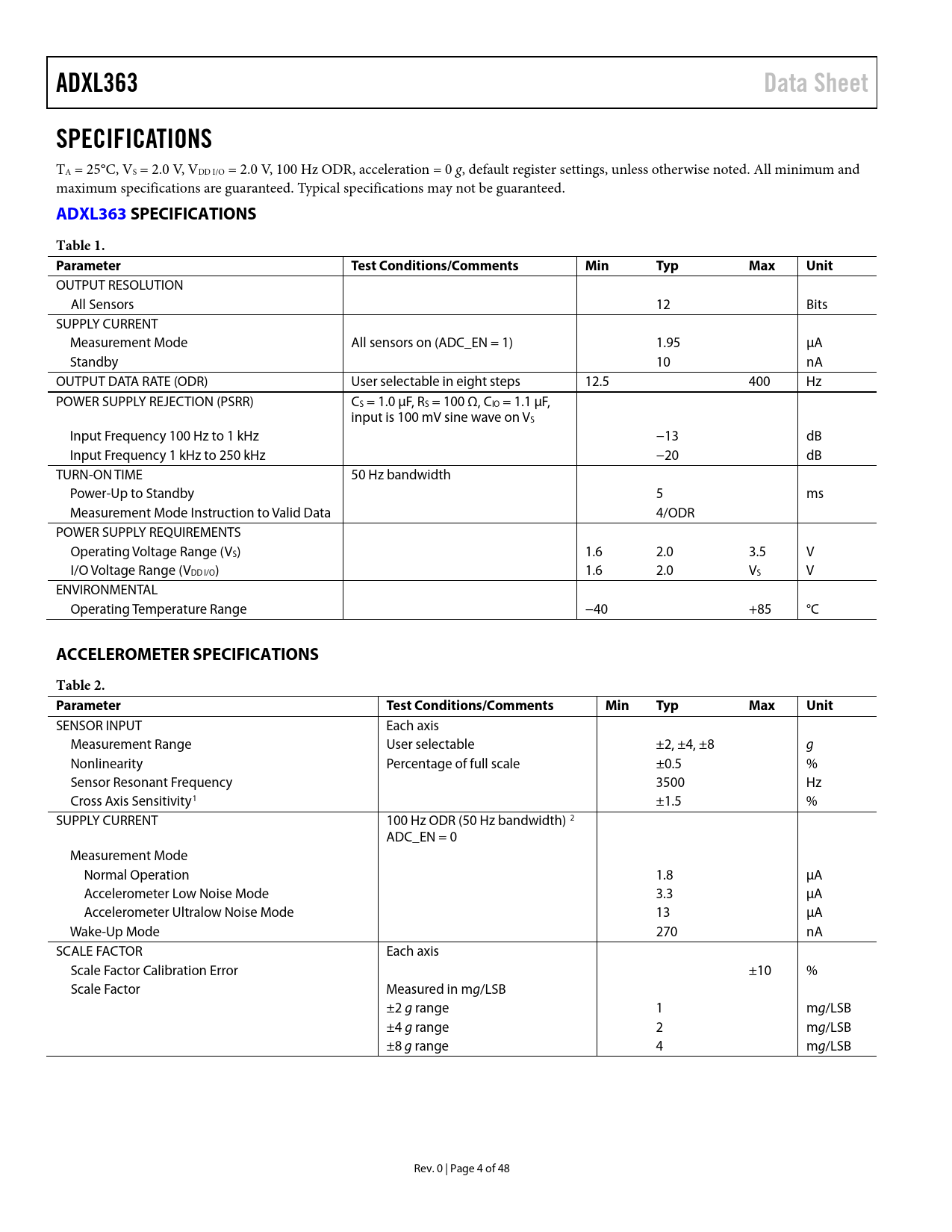

ADXL363 Data Sheet SPECIFICATIONS
TA = 25°C, VS = 2.0 V, VDD I/O = 2.0 V, 100 Hz ODR, acceleration = 0 g, default register settings, unless otherwise noted. Al minimum and maximum specifications are guaranteed. Typical specifications may not be guaranteed.
ADXL363 S PECIFICATIONS Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
OUTPUT RESOLUTION All Sensors 12 Bits SUPPLY CURRENT Measurement Mode All sensors on (ADC_EN = 1) 1.95 µA Standby 10 nA OUTPUT DATA RATE (ODR) User selectable in eight steps 12.5 400 Hz POWER SUPPLY REJECTION (PSRR) CS = 1.0 µF, RS = 100 Ω, CIO = 1.1 µF, input is 100 mV sine wave on VS Input Frequency 100 Hz to 1 kHz −13 dB Input Frequency 1 kHz to 250 kHz −20 dB TURN-ON TIME 50 Hz bandwidth Power-Up to Standby 5 ms Measurement Mode Instruction to Valid Data 4/ODR POWER SUPPLY REQUIREMENTS Operating Voltage Range (VS) 1.6 2.0 3.5 V I/O Voltage Range (VDD I/O) 1.6 2.0 VS V ENVIRONMENTAL Operating Temperature Range −40 +85 °C
