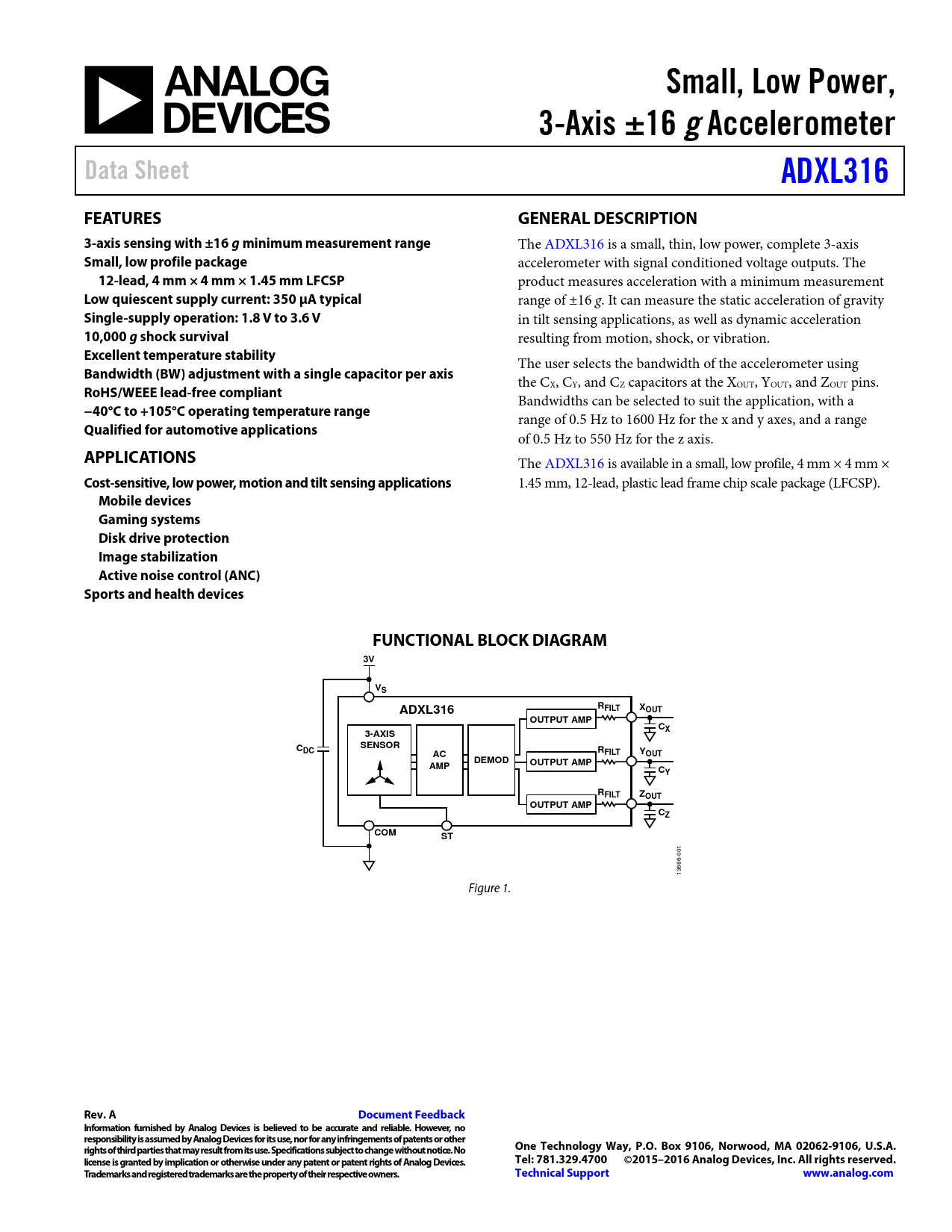

Datasheet ADXL316 (Analog Devices)

Smal , Low Power, 3-Axis ±16 g Accelerometer Data Sheet ADXL316 FEATURES GENERAL DESCRIPTION 3-axis sensing with ±16 g minimum measurement range
The ADXL316 is a small, thin, low power, complete 3-axis
Small, low profile package
accelerometer with signal conditioned voltage outputs. The
12-lead, 4 mm × 4 mm × 1.45 mm LFCSP
product measures acceleration with a minimum measurement
Low quiescent supply current: 350 µA typical
range of ±16 g. It can measure the static acceleration of gravity
Single-supply operation: 1.8 V to 3.6 V
in tilt sensing applications, as well as dynamic acceleration
10,000 g shock survival
resulting from motion, shock, or vibration.
Excellent temperature stability
The user selects the bandwidth of the accelerometer using
Bandwidth (BW) adjustment with a single capacitor per axis
the C
RoHS/WEEE lead-free compliant
X, CY, and CZ capacitors at the XOUT, YOUT, and ZOUT pins. Bandwidths can be selected to suit the application, with a
−40°C to +105°C operating temperature range
range of 0.5 Hz to 1600 Hz for the x and y axes, and a range
Qualified for automotive applications
of 0.5 Hz to 550 Hz for the z axis.
APPLICATIONS
The ADXL316 is available in a small, low profile, 4 mm × 4 mm ×
Cost-sensitive, low power, motion and tilt sensing applications
1.45 mm, 12-lead, plastic lead frame chip scale package (LFCSP).
Mobile devices Gaming systems Disk drive protection Image stabilization Active noise control (ANC) Sports and health devices FUNCTIONAL BLOCK DIAGRAM 3V VS ADXL316 RFILT XOUT OUTPUT AMP CX 3-AXIS SENSOR CDC RFILT Y AC OUT DEMOD OUTPUT AMP AMP CY RFILT ZOUT OUTPUT AMP CZ COM ST
001 13686- Figure 1.
Rev. A Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2015–2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
