Datasheet LTC5564 (Analog Devices) - 2
| Hersteller | Analog Devices |
| Beschreibung | UltraFast 7ns Response Time 15GHz RF Power Detector with Comparator |
| Seiten / Seite | 16 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION … |
| Dateiformat / Größe | PDF / 475 Kb |
| Dokumentensprache | Englisch |

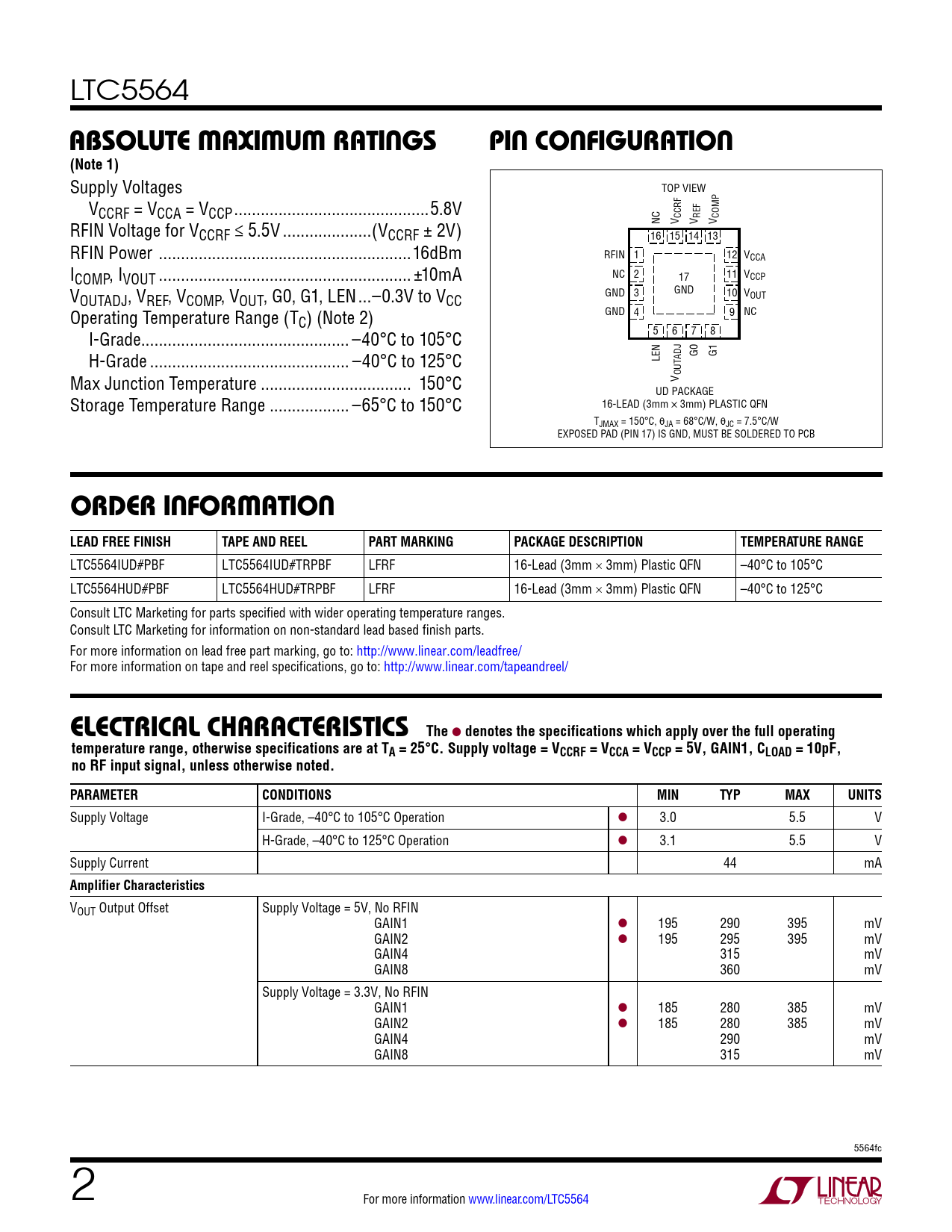

ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC5564
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Supply Voltages TOP VIEW VCCRF = VCCA = VCCP ..5.8V RFIN Voltage for V NC V CCRF V REF V COMP CCRF ≤ 5.5V ..(VCCRF ± 2V) 16 15 14 13 RFIN Power ...16dBm RFIN 1 12 VCCA ICOMP, IVOUT ...±10mA NC 2 17 11 VCCP V GND OUTADJ, VREF, VCOMP, VOUT, G0, G1, LEN ...–0.3V to VCC GND 3 10 VOUT Operating Temperature Range (T GND 4 9 NC C) (Note 2) I-Grade... –40°C to 105°C 5 6 7 8 H-Grade ... –40°C to 125°C LEN G0 G1 Max Junction Temperature .. 150°C V OUTADJ UD PACKAGE Storage Temperature Range .. –65°C to 150°C 16-LEAD (3mm × 3mm) PLASTIC QFN TJMAX = 150°C, θJA = 68°C/W, θJC = 7.5°C/W EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC5564IUD#PBF LTC5564IUD#TRPBF LFRF 16-Lead (3mm × 3mm) Plastic QFN –40°C to 105°C LTC5564HUD#PBF LTC5564HUD#TRPBF LFRF 16-Lead (3mm × 3mm) Plastic QFN –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. Supply voltage = VCCRF = VCCA = VCCP = 5V, GAIN1, CLOAD = 10pF, no RF input signal, unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
Supply Voltage I-Grade, –40°C to 105°C Operation l 3.0 5.5 V H-Grade, –40°C to 125°C Operation l 3.1 5.5 V Supply Current 44 mA
Amplifier Characteristics
VOUT Output Offset Supply Voltage = 5V, No RFIN GAIN1 l 195 290 395 mV GAIN2 l 195 295 395 mV GAIN4 315 mV GAIN8 360 mV Supply Voltage = 3.3V, No RFIN GAIN1 l 185 280 385 mV GAIN2 l 185 280 385 mV GAIN4 290 mV GAIN8 315 mV 5564fc 2 For more information www.linear.com/LTC5564 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Block Diagram Applications Information Revision History Typical Application Related Parts
