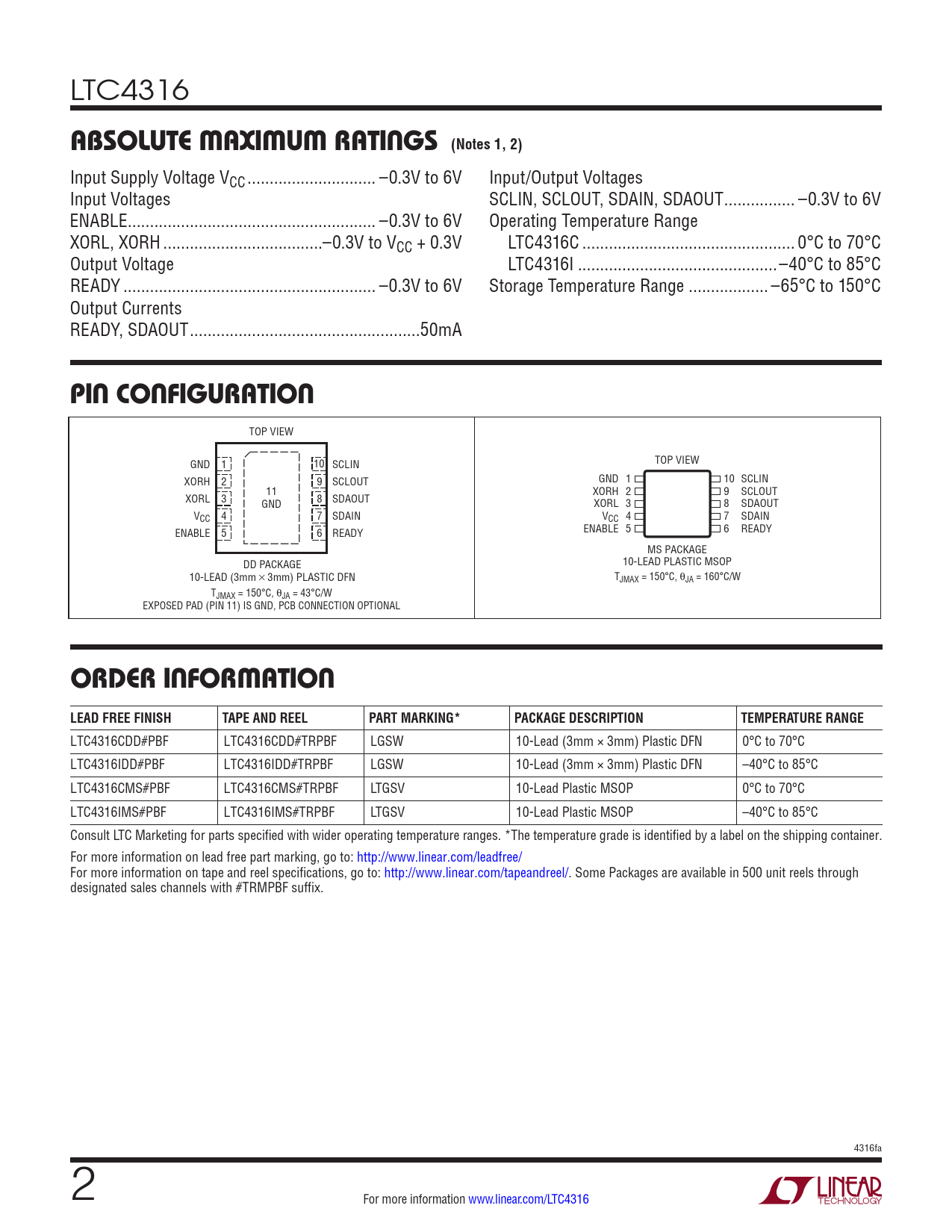

LTC4316
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Input Supply Voltage VCC ... –0.3V to 6V Input/Output Voltages Input Voltages SCLIN, SCLOUT, SDAIN, SDAOUT .. –0.3V to 6V ENABLE .. –0.3V to 6V Operating Temperature Range XORL, XORH ..–0.3V to VCC + 0.3V LTC4316C .. 0°C to 70°C Output Voltage LTC4316I ...–40°C to 85°C READY ... –0.3V to 6V Storage Temperature Range .. –65°C to 150°C Output Currents READY, SDAOUT ..50mA
PIN CONFIGURATION
TOP VIEW GND 1 10 SCLIN TOP VIEW XORH 2 9 SCLOUT GND 1 10 SCLIN 11 XORH 2 9 SCLOUT XORL 3 GND 8 SDAOUT XORL 3 8 SDAOUT VCC 4 7 SDAIN VCC 4 7 SDAIN ENABLE 5 6 READY ENABLE 5 6 READY MS PACKAGE DD PACKAGE 10-LEAD PLASTIC MSOP 10-LEAD (3mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 160°C/W TJMAX = 150°C, θJA = 43°C/W EXPOSED PAD (PIN 11) IS GND, PCB CONNECTION OPTIONAL
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC4316CDD#PBF LTC4316CDD#TRPBF LGSW 10-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC4316IDD#PBF LTC4316IDD#TRPBF LGSW 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC4316CMS#PBF LTC4316CMS#TRPBF LTGSV 10-Lead Plastic MSOP 0°C to 70°C LTC4316IMS#PBF LTC4316IMS#TRPBF LTGSV 10-Lead Plastic MSOP –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some Packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 4316fa 2 For more information www.linear.com/LTC4316
