Datasheet LTC4311 (Analog Devices) - 3
| Hersteller | Analog Devices |
| Beschreibung | Low Voltage I2C/SMBus Accelerator |
| Seiten / Seite | 12 / 3 — ELECTRICAL CHARACTERISTICS. • The. denotes the specifi cations which apply … |
| Dateiformat / Größe | PDF / 142 Kb |
| Dokumentensprache | Englisch |

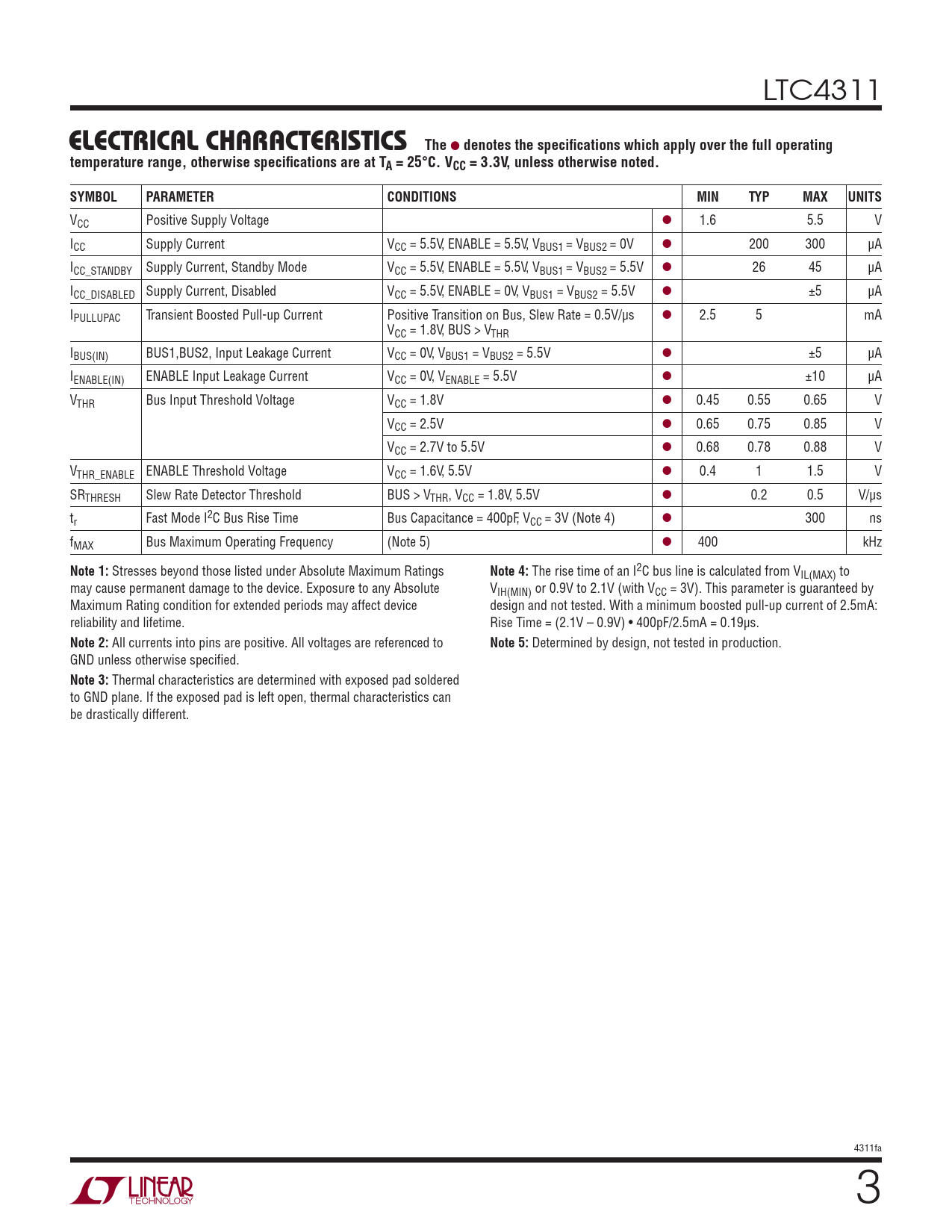

ELECTRICAL CHARACTERISTICS. • The. denotes the specifi cations which apply over the full operating
Modelllinie für dieses Datenblatt
- LTC4311CDC#PBF LTC4311CDC#TRMPBF LTC4311CDC#TRMPBF LTC4311CDC#TRPBF LTC4311CDC#TRPBF LTC4311CSC6#PBF LTC4311CSC6#TRMPBF LTC4311CSC6#TRMPBF LTC4311CSC6#TRPBF LTC4311CSC6#TRPBF LTC4311IDC#PBF LTC4311IDC#TRMPBF LTC4311IDC#TRMPBF LTC4311IDC#TRPBF LTC4311IDC#TRPBF LTC4311ISC6#PBF LTC4311ISC6#TRMPBF LTC4311ISC6#TRMPBF LTC4311ISC6#TRPBF LTC4311ISC6#TRPBF
Textversion des Dokuments
LTC4311
ELECTRICAL CHARACTERISTICS • The
●
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VCC = 3.3V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VCC Positive Supply Voltage ● 1.6 5.5 V ICC Supply Current VCC = 5.5V, ENABLE = 5.5V, VBUS1 = VBUS2 = 0V ● 200 300 μA ICC_STANDBY Supply Current, Standby Mode VCC = 5.5V, ENABLE = 5.5V, VBUS1 = VBUS2 = 5.5V ● 26 45 μA ICC_DISABLED Supply Current, Disabled VCC = 5.5V, ENABLE = 0V, VBUS1 = VBUS2 = 5.5V ● ±5 μA IPULLUPAC Transient Boosted Pull-up Current Positive Transition on Bus, Slew Rate = 0.5V/μs ● 2.5 5 mA VCC = 1.8V, BUS > VTHR IBUS(IN) BUS1,BUS2, Input Leakage Current VCC = 0V, VBUS1 = VBUS2 = 5.5V ● ±5 μA IENABLE(IN) ENABLE Input Leakage Current VCC = 0V, VENABLE = 5.5V ● ±10 μA VTHR Bus Input Threshold Voltage VCC = 1.8V ● 0.45 0.55 0.65 V VCC = 2.5V ● 0.65 0.75 0.85 V VCC = 2.7V to 5.5V ● 0.68 0.78 0.88 V VTHR_ENABLE ENABLE Threshold Voltage VCC = 1.6V, 5.5V ● 0.4 1 1.5 V SRTHRESH Slew Rate Detector Threshold BUS > VTHR, VCC = 1.8V, 5.5V ● 0.2 0.5 V/μs tr Fast Mode I2C Bus Rise Time Bus Capacitance = 400pF, VCC = 3V (Note 4) ● 300 ns fMAX Bus Maximum Operating Frequency (Note 5) ● 400 kHz
