Datasheet DN2535 (Microchip) - 5
| Hersteller | Microchip |
| Beschreibung | N-Channel Depletion-Mode Vertical DMOS FETs Features |
| Seiten / Seite | 6 / 5 — DN2535. 3-Lead TO-92 Package Outline (N3). 1 2 3. Front View. Side View. … |
| Dateiformat / Größe | PDF / 772 Kb |
| Dokumentensprache | Englisch |
DN2535. 3-Lead TO-92 Package Outline (N3). 1 2 3. Front View. Side View. Bottom View. Symbol. Drawings not to scale. Supertex Doc.#:
Modelllinie für dieses Datenblatt
Textversion des Dokuments

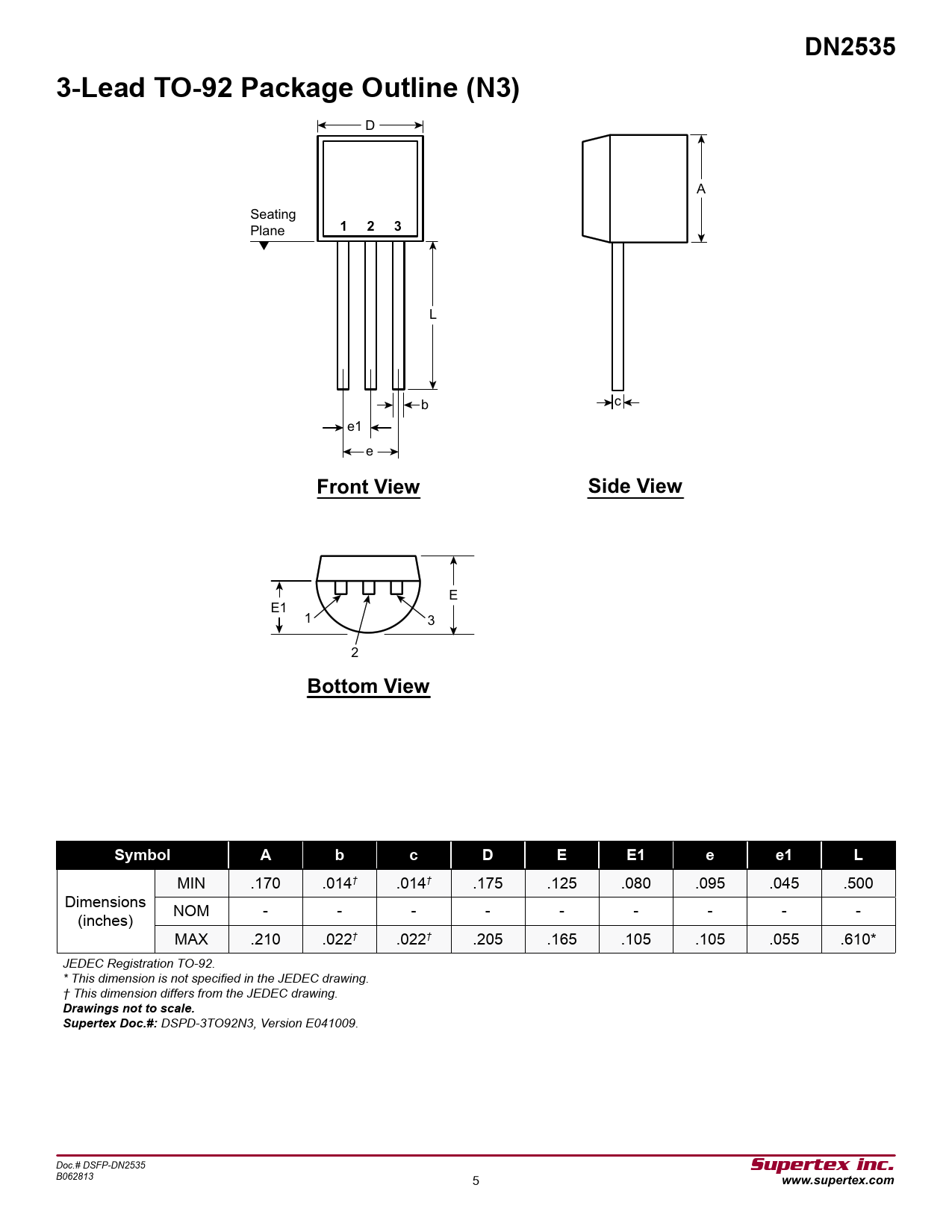

DN2535 3-Lead TO-92 Package Outline (N3)
D A Seating Plane
1 2 3
L c b e1 e
Front View Side View
E E1 1 3 2
Bottom View Symbol A b c D E E1 e e1 L
MIN .170 .014† .014† .175 .125 .080 .095 .045 .500 Dimensions (inches) NOM - - - - - - - - - MAX .210 .022† .022† .205 .165 .105 .105 .055 .610* JEDEC Registration TO-92. * This dimension is not specified in the JEDEC drawing. † This dimension differs from the JEDEC drawing.
Drawings not to scale. Supertex Doc.#:
DSPD-3TO92N3, Version E041009. Doc.# DSFP-DN2535
Supertex inc.
B062813 5
www.supertex.com
