Datasheet Datasheet ATtiny24A, ATtiny44A, ATtiny84A. Summary (Microchip) - 3

HerstellerMicrochip
Beschreibung8-bit Microcontroller with 2K/4K/8K Bytes In-System Programmable Flash
Seiten / Seite22 / 3 — ATtiny24A/44A/84A. 1.1. Pin Descriptions. 1.1.1. VCC. 1.1.2. GND. 1.1.3. …
Dateiformat / GrößePDF / 707 Kb
DokumentenspracheEnglisch

ATtiny24A/44A/84A. 1.1. Pin Descriptions. 1.1.1. VCC. 1.1.2. GND. 1.1.3. Port B (PB3:PB0). 1.1.4. RESET. 1.1.5. Port A (PA7:PA0)

ATtiny24A/44A/84A 1.1 Pin Descriptions 1.1.1 VCC 1.1.2 GND 1.1.3 Port B (PB3:PB0) 1.1.4 RESET 1.1.5 Port A (PA7:PA0)

Modelllinie für dieses Datenblatt

Textversion des Dokuments

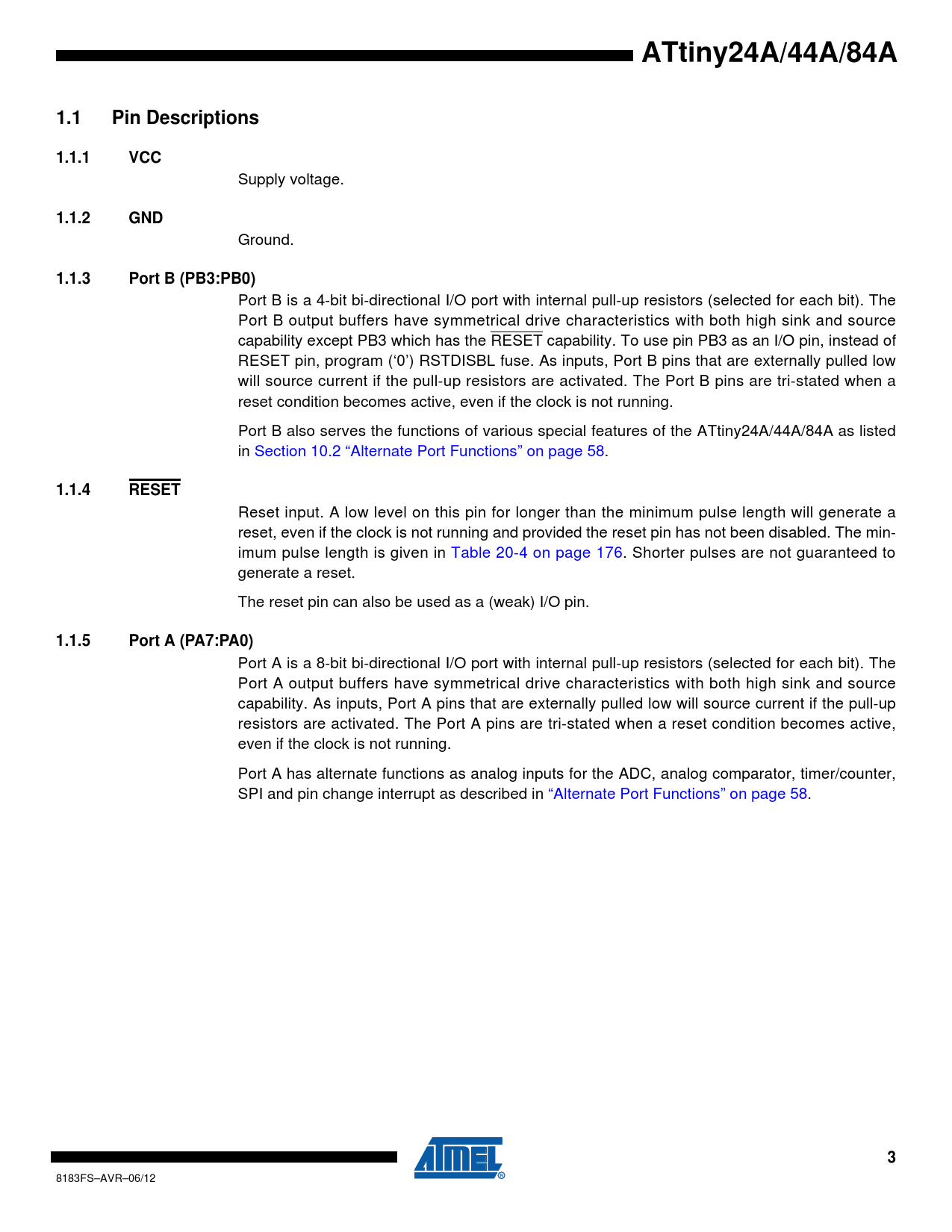

ATtiny24A/44A/84A 1.1 Pin Descriptions 1.1.1 VCC
Supply voltage.
1.1.2 GND
Ground.
1.1.3 Port B (PB3:PB0)
Port B is a 4-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port B output buffers have symmetrical drive characteristics with both high sink and source capability except PB3 which has the RESET capability. To use pin PB3 as an I/O pin, instead of RESET pin, program (‘0’) RSTDISBL fuse. As inputs, Port B pins that are externally pulled low will source current if the pull-up resistors are activated. The Port B pins are tri-stated when a reset condition becomes active, even if the clock is not running. Port B also serves the functions of various special features of the ATtiny24A/44A/84A as listed in Section 10.2 “Alternate Port Functions” on page 58.
1.1.4 RESET
Reset input. A low level on this pin for longer than the minimum pulse length will generate a reset, even if the clock is not running and provided the reset pin has not been disabled. The min- imum pulse length is given in Table 20-4 on page 176. Shorter pulses are not guaranteed to generate a reset. The reset pin can also be used as a (weak) I/O pin.
1.1.5 Port A (PA7:PA0)
Port A is a 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port A output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port A pins that are externally pulled low will source current if the pull-up resistors are activated. The Port A pins are tri-stated when a reset condition becomes active, even if the clock is not running. Port A has alternate functions as analog inputs for the ADC, analog comparator, timer/counter, SPI and pin change interrupt as described in “Alternate Port Functions” on page 58.
