Datasheet ATtiny24A, ATtiny44A. Appendix A. Specification at 105°C (Microchip) - 10
| Hersteller | Microchip |
| Beschreibung | 8-bit Microcontroller with 2K/4K Bytes In-System Programmable Flash |
| Seiten / Seite | 60 / 10 — Typical Characteristics. 3.1. ATtiny24A. 3.1.1. Current Consumption in … |
| Dateiformat / Größe | PDF / 3.3 Mb |
| Dokumentensprache | Englisch |
Typical Characteristics. 3.1. ATtiny24A. 3.1.1. Current Consumption in Active Mode. Figure 3-1. Figure 3-2. ATtiny24A/44A
Modelllinie für dieses Datenblatt
- ATTINY24A-CCU ATTINY24A-CCUR ATTINY24A-MF ATTINY24A-MFR ATTINY24A-MM8 ATTINY24A-MM8R ATTINY24A-MMH ATTINY24A-MMHR ATTINY24A-MU ATTINY24A-MUR ATTINY24A-PU ATTINY24A-SSF ATTINY24A-SSFR ATTINY24A-SSN ATTINY24A-SSNR ATTINY24A-SSU ATTINY24A-SSUR
Textversion des Dokuments

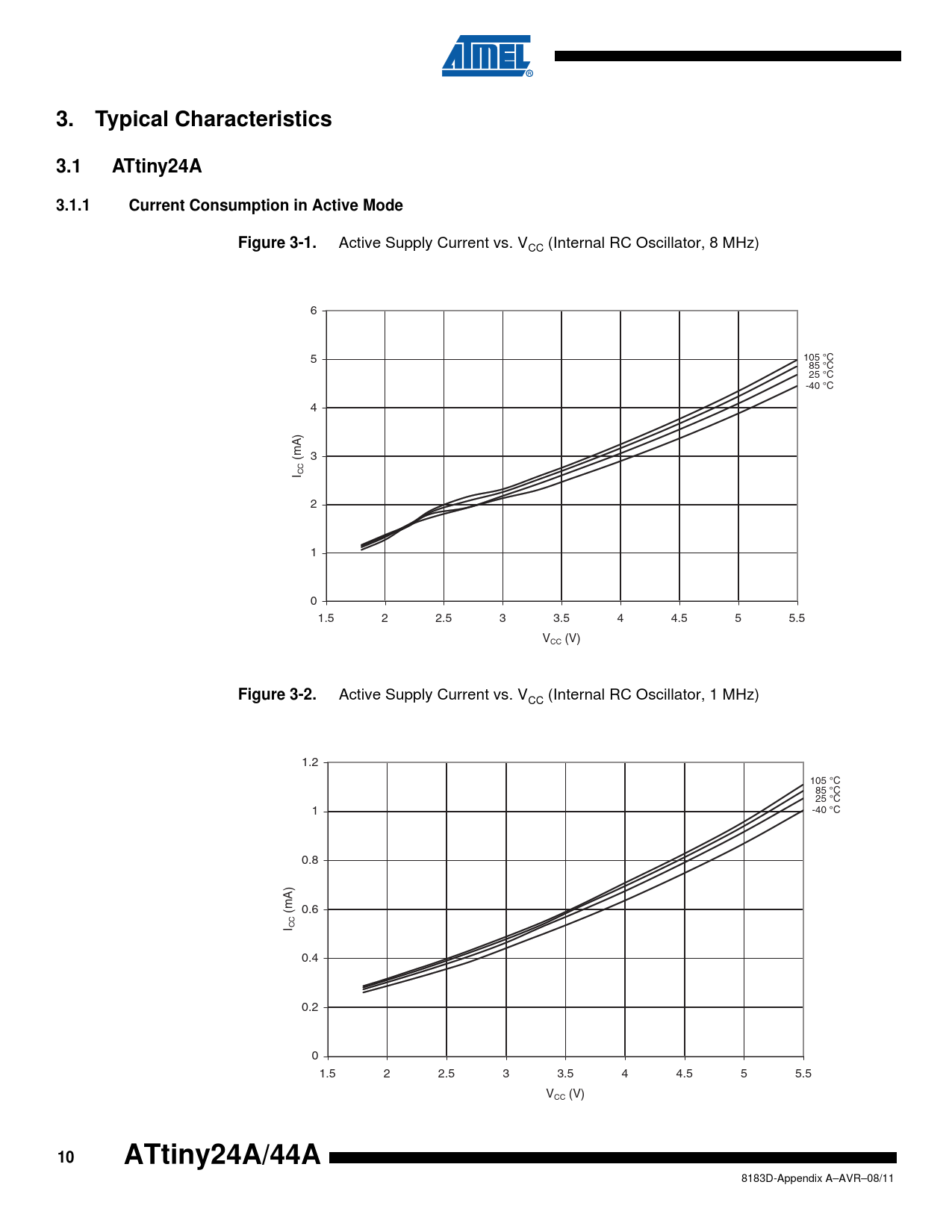

3. Typical Characteristics 3.1 ATtiny24A 3.1.1 Current Consumption in Active Mode Figure 3-1.
Active Supply Current vs. V (Internal RC Oscillator, 8 MHz) CC 6 105 °C 5 85 °C 25 °C -40 °C 4 3 (mA) I CC 2 1 0 1.5 2 2.5 3 3.5 4 4.5 5 5.5 VCC (V)
Figure 3-2.
Active Supply Current vs. V (Internal RC Oscillator, 1 MHz) CC 1.2 105 °C 85 °C 25 °C -40 °C 1 0.8 0.6 (mA) I CC 0.4 0.2 0 1.5 2 2.5 3 3.5 4 4.5 5 5.5 VCC (V)
10 ATtiny24A/44A
