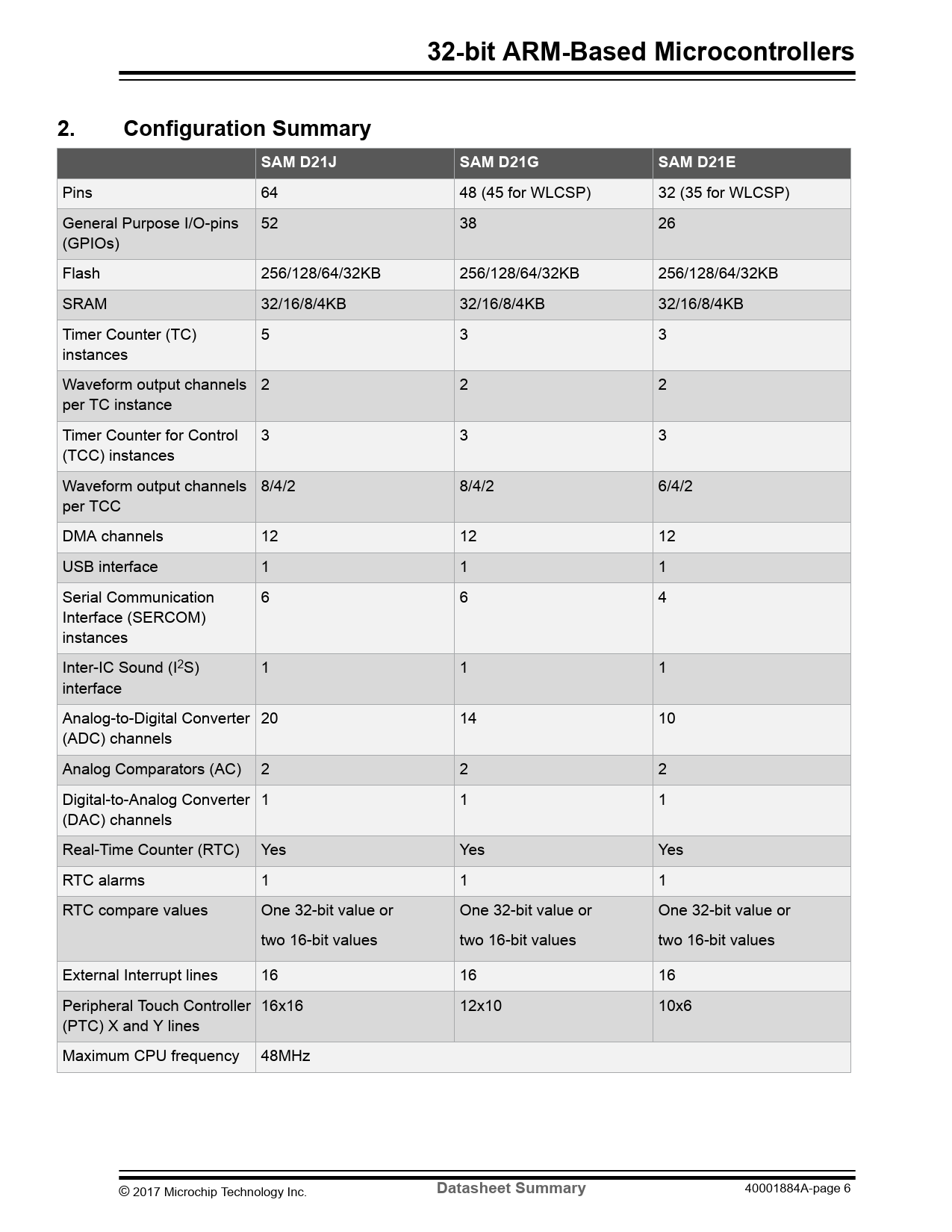

32-bit ARM-Based Microcontrollers 2. Configuration Summary SAM D21J SAM D21G SAM D21E
Pins 64 48 (45 for WLCSP) 32 (35 for WLCSP) General Purpose I/O-pins 52 38 26 (GPIOs) Flash 256/128/64/32KB 256/128/64/32KB 256/128/64/32KB SRAM 32/16/8/4KB 32/16/8/4KB 32/16/8/4KB Timer Counter (TC) 5 3 3 instances Waveform output channels 2 2 2 per TC instance Timer Counter for Control 3 3 3 (TCC) instances Waveform output channels 8/4/2 8/4/2 6/4/2 per TCC DMA channels 12 12 12 USB interface 1 1 1 Serial Communication 6 6 4 Interface (SERCOM) instances Inter-IC Sound (I2S) 1 1 1 interface Analog-to-Digital Converter 20 14 10 (ADC) channels Analog Comparators (AC) 2 2 2 Digital-to-Analog Converter 1 1 1 (DAC) channels Real-Time Counter (RTC) Yes Yes Yes RTC alarms 1 1 1 RTC compare values One 32-bit value or One 32-bit value or One 32-bit value or two 16-bit values two 16-bit values two 16-bit values External Interrupt lines 16 16 16 Peripheral Touch Controller 16x16 12x10 10x6 (PTC) X and Y lines Maximum CPU frequency 48MHz © 2017 Microchip Technology Inc.
Datasheet Summary
