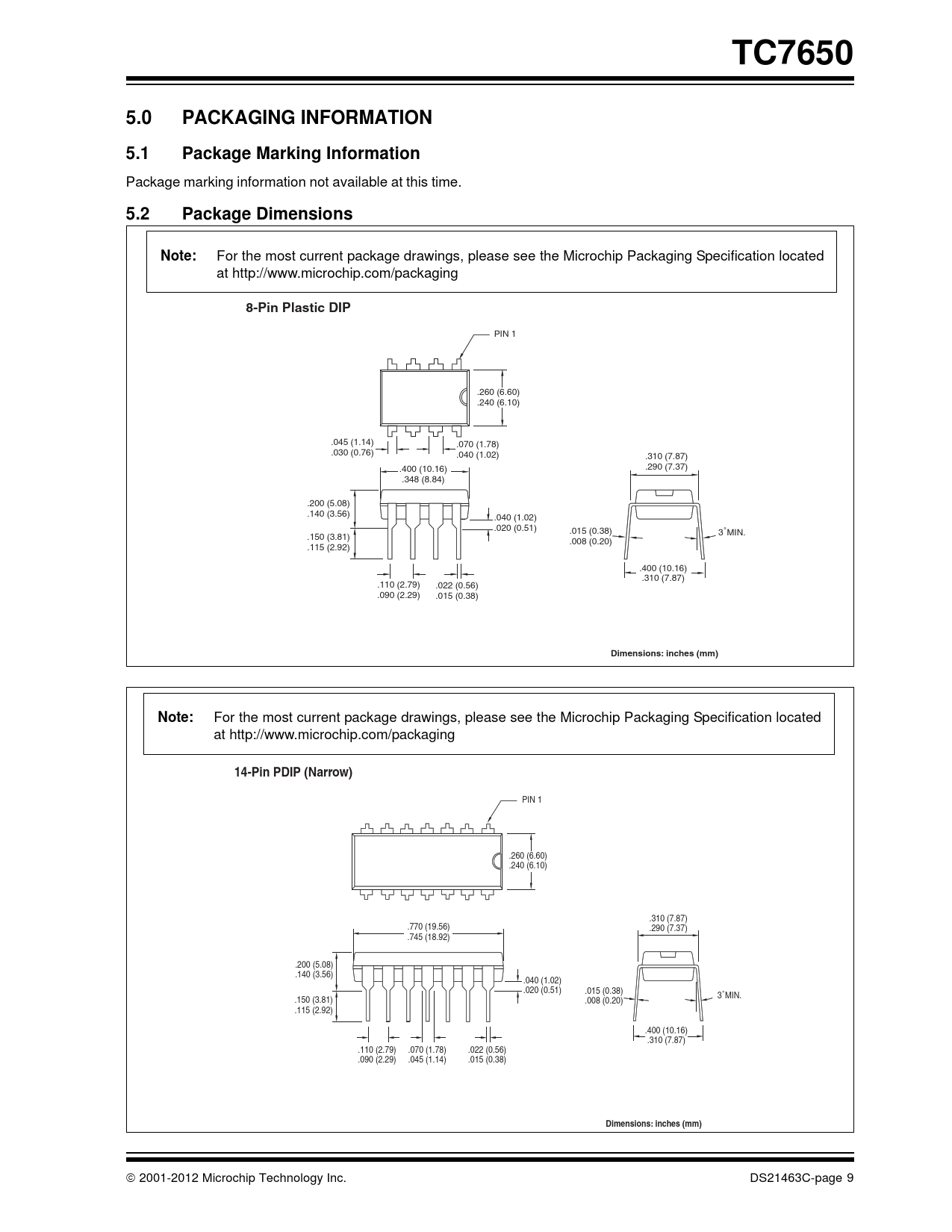

TC7650. 5.0. PACKAGING INFORMATION. 5.1. Package Marking Information. 5.2. Package Dimensions. Note:. 8-Pin Plastic DIP
Modelllinie für dieses Datenblatt
Textversion des Dokuments
TC7650 5.0 PACKAGING INFORMATION 5.1 Package Marking Information
Package marking information not available at this time.
5.2 Package Dimensions Note:
For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging
8-Pin Plastic DIP
PIN 1 .260 (6.60) .240 (6.10) .045 (1.14) .070 (1.78) .030 (0.76) .040 (1.02) .310 (7.87) .400 (10.16) .290 (7.37) .348 (8.84) .200 (5.08) .140 (3.56) .040 (1.02) .020 (0.51) .015 (0.38) 3˚MIN. .150 (3.81) .008 (0.20) .115 (2.92) .400 (10.16) .310 (7.87) .110 (2.79) .022 (0.56) .090 (2.29) .015 (0.38)
Dimensions: inches (mm) Note:
For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging
14-Pin PDIP (Narrow)
PIN 1 .260 (6.60) .240 (6.10) .310 (7.87) .770 (19.56) .290 (7.37) .745 (18.92) .200 (5.08) .140 (3.56) .040 (1.02) .020 (0.51) .015 (0.38) 3˚MIN. .150 (3.81) .008 (0.20) .115 (2.92) .400 (10.16) .310 (7.87) .110 (2.79) .070 (1.78) .022 (0.56) .090 (2.29) .045 (1.14) .015 (0.38)
Dimensions: inches (mm)
2001-2012 Microchip Technology Inc. DS21463C-page 9
