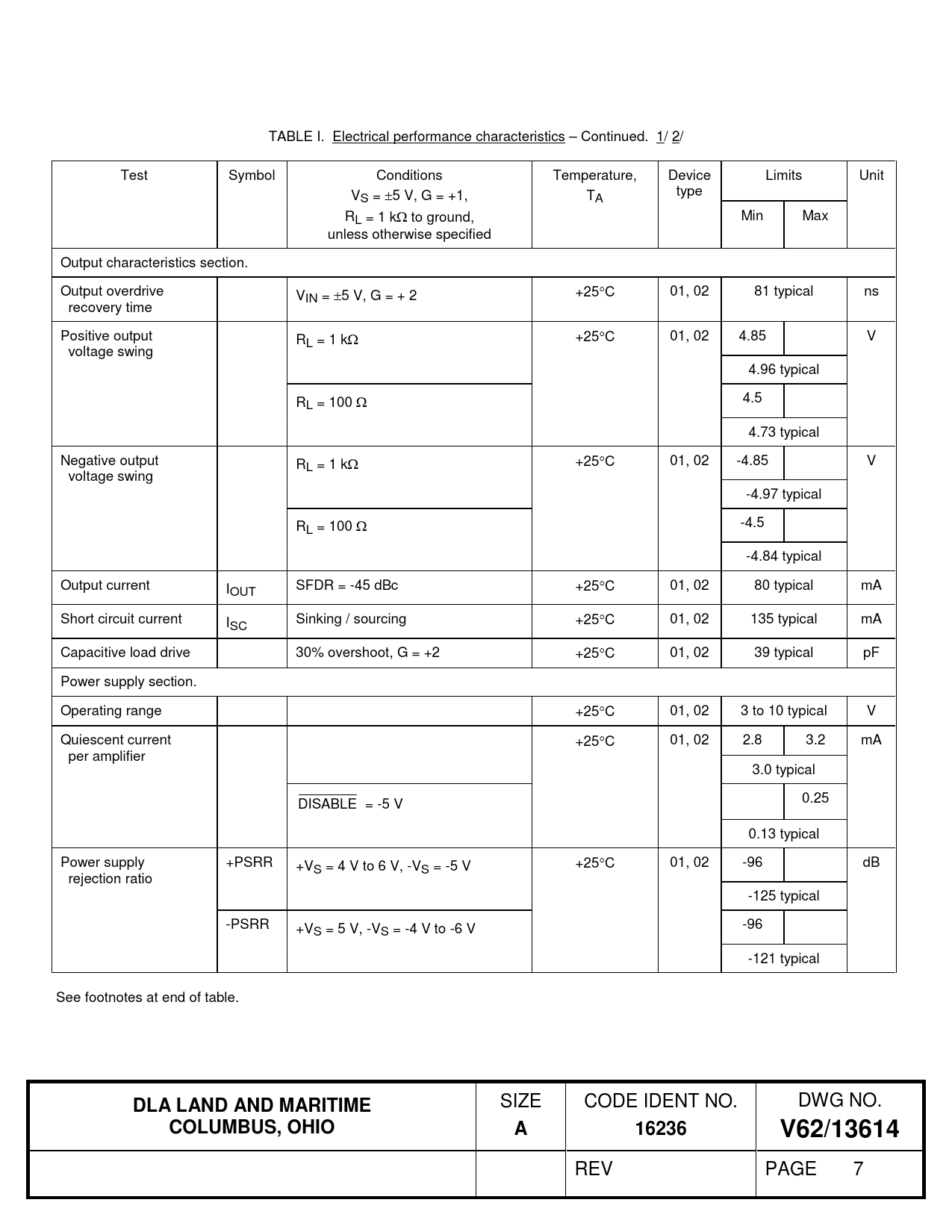

TABLE I. Electrical performance characteristics – Continued. 1/ 2/ Test Symbol Conditions Temperature, Device Limits Unit V type S = ±5 V, G = +1, TA R L = 1 kΩ to ground, Min Max unless otherwise specified Output characteristics section. Output overdrive VIN = ±5 V, G = + 2 +25°C 01, 02 81 typical ns recovery time Positive output RL = 1 kΩ +25°C 01, 02 4.85 V voltage swing 4.96 typical RL = 100 Ω 4.5 4.73 typical Negative output RL = 1 kΩ +25°C 01, 02 -4.85 V voltage swing -4.97 typical RL = 100 Ω -4.5 -4.84 typical Output current IOUT SFDR = -45 dBc +25°C 01, 02 80 typical mA Short circuit current ISC Sinking / sourcing +25°C 01, 02 135 typical mA Capacitive load drive 30% overshoot, G = +2 +25°C 01, 02 39 typical pF Power supply section. Operating range +25°C 01, 02 3 to 10 typical V Quiescent current +25°C 01, 02 2.8 3.2 mA per amplifier 3.0 typical DISABLE = -5 V 0.25 0.13 typical Power supply +PSRR +VS = 4 V to 6 V, -VS = -5 V +25°C 01, 02 -96 dB rejection ratio -125 typical -PSRR +VS = 5 V, -VS = -4 V to -6 V -96 -121 typical See footnotes at end of table.
