Datasheet ADA4897-2 (Analog Devices) - 5

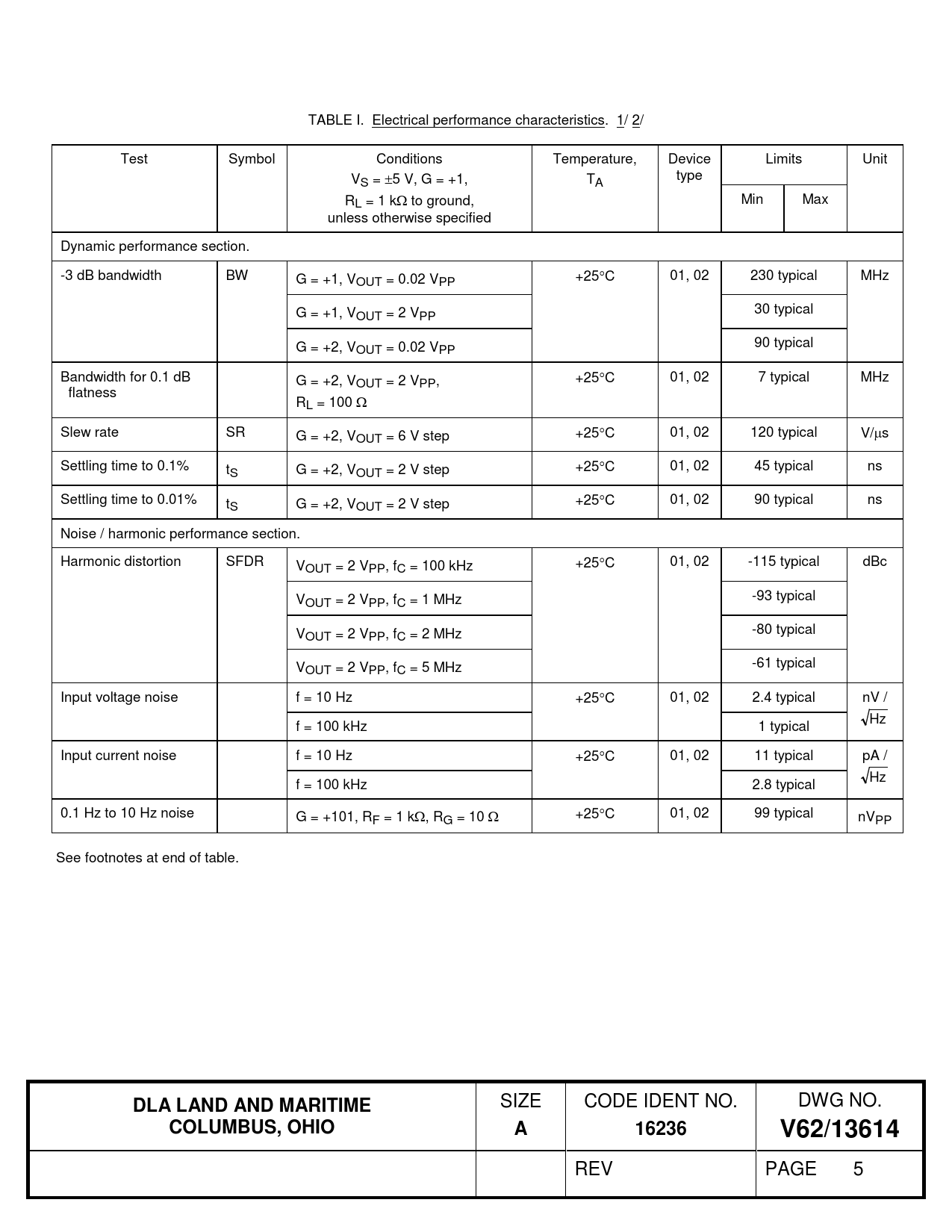

TABLE I. Electrical performance characteristics. 1/ 2/ Test Symbol Conditions Temperature, Device Limits Unit V type S = ±5 V, G = +1, TA R L = 1 kΩ to ground, Min Max unless otherwise specified Dynamic performance section. -3 dB bandwidth BW G = +1, VOUT = 0.02 VPP +25°C 01, 02 230 typical MHz G = +1, VOUT = 2 VPP 30 typical G = +2, VOUT = 0.02 VPP 90 typical Bandwidth for 0.1 dB G = +2, V +25°C 01, 02 7 typical MHz OUT = 2 VPP, flatness RL = 100 Ω Slew rate SR G = +2, VOUT = 6 V step +25°C 01, 02 120 typical V/µs Settling time to 0.1% tS G = +2, VOUT = 2 V step +25°C 01, 02 45 typical ns Settling time to 0.01% tS G = +2, VOUT = 2 V step +25°C 01, 02 90 typical ns Noise / harmonic performance section. Harmonic distortion SFDR VOUT = 2 VPP, fC = 100 kHz +25°C 01, 02 -115 typical dBc VOUT = 2 VPP, fC = 1 MHz -93 typical VOUT = 2 VPP, fC = 2 MHz -80 typical VOUT = 2 VPP, fC = 5 MHz -61 typical Input voltage noise f = 10 Hz +25°C 01, 02 2.4 typical nV / Hz f = 100 kHz 1 typical Input current noise f = 10 Hz +25°C 01, 02 11 typical pA / Hz f = 100 kHz 2.8 typical 0.1 Hz to 10 Hz noise G = +101, RF = 1 kΩ, RG = 10 Ω +25°C 01, 02 99 typical nVPP See footnotes at end of table.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/13614
REV PAGE 5 Document Outline DESCRIPTION REV REV PMIC N/A DLA LAND AND MARITIME TITLE SIZE A V62/13614 REV
