Datasheet ADA4528-2-EP (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | Precision, Ultralow Noise, RRIO, Zero-Drift Dual Op Amp |
| Seiten / Seite | 17 / 4 — ADA4528-2-EP. Enhanced Product. Parameter. Symbol. Test … |
| Dateiformat / Größe | PDF / 661 Kb |
| Dokumentensprache | Englisch |
ADA4528-2-EP. Enhanced Product. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max. Unit
Modelllinie für dieses Datenblatt
Textversion des Dokuments

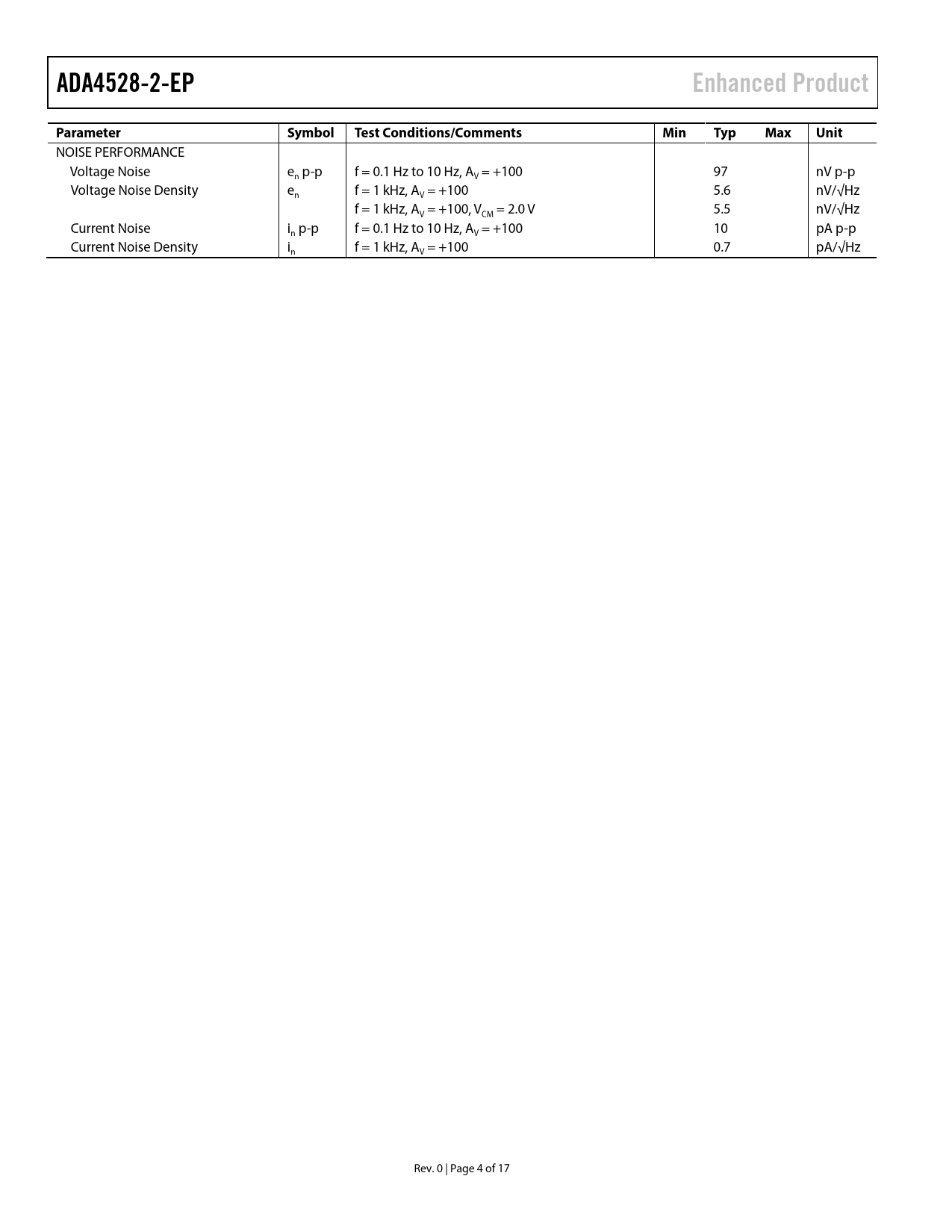

ADA4528-2-EP Enhanced Product Parameter Symbol Test Conditions/Comments Min Typ Max Unit
NOISE PERFORMANCE Voltage Noise e p-p f = 0.1 Hz to 10 Hz, A = +100 97 nV p-p n V Voltage Noise Density e f = 1 kHz, A = +100 5.6 nV/√Hz n V f = 1 kHz, A = +100, V = 2.0 V 5.5 nV/√Hz V CM Current Noise i p-p f = 0.1 Hz to 10 Hz, A = +100 10 pA p-p n V Current Noise Density i f = 1 kHz, A = +100 0.7 pA/√Hz n V Rev. 0 | Page 4 of 17 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS PIN CONNECTION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—2.5 V OPERATION ELECTRICAL CHARACTERISTICS—5 V OPERATION ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
