Datasheet ADA4805-2 (Analog Devices) - 6

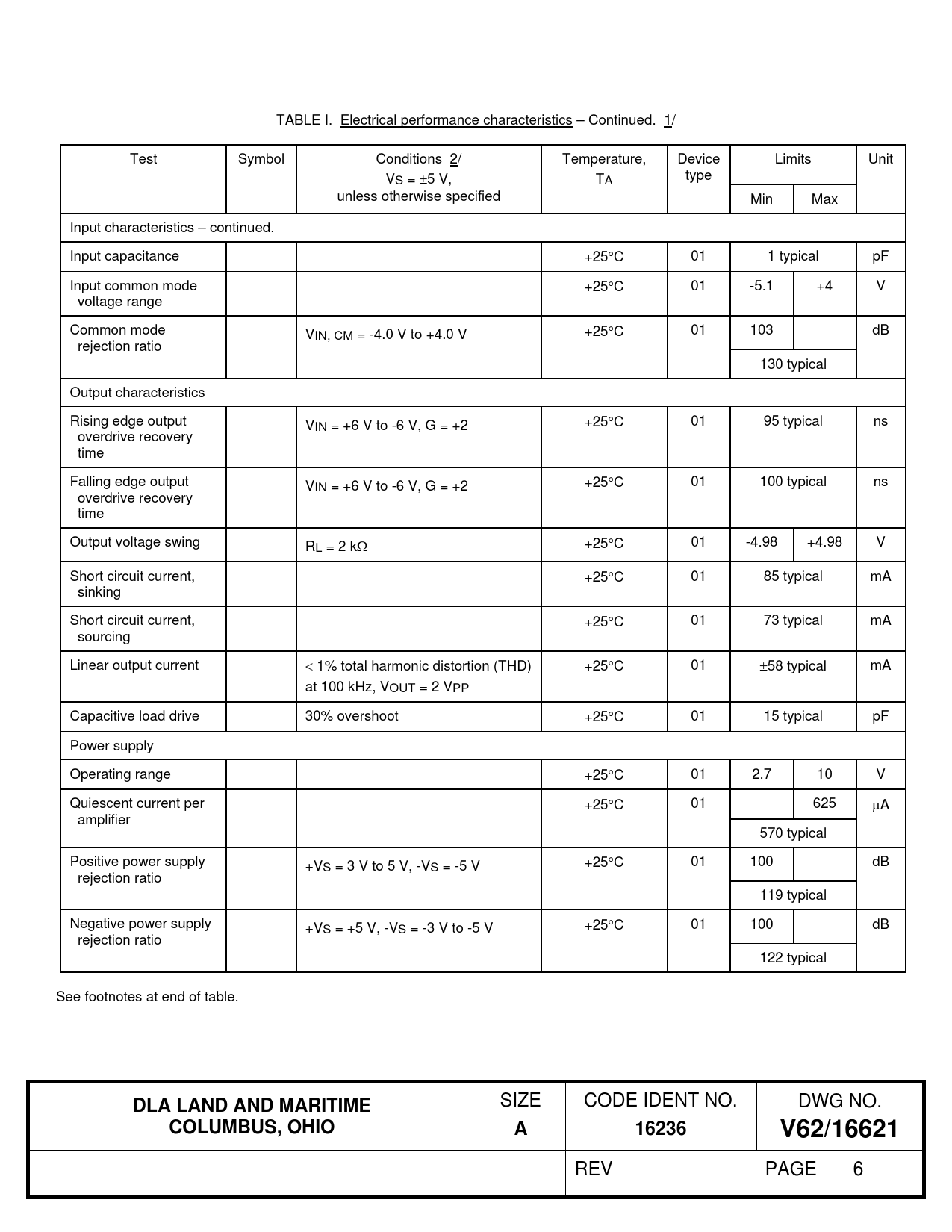

TABLE I. Electrical performance characteristics – Continued. 1/ Test Symbol Conditions 2/ Temperature, Device Limits Unit VS = 5 V, TA type unless otherwise specified Min Max Input characteristics – continued. Input capacitance +25C 01 1 typical pF Input common mode +25C 01 -5.1 +4 V voltage range Common mode VIN, CM = -4.0 V to +4.0 V +25C 01 103 dB rejection ratio 130 typical Output characteristics Rising edge output VIN = +6 V to -6 V, G = +2 +25C 01 95 typical ns overdrive recovery time Falling edge output VIN = +6 V to -6 V, G = +2 +25C 01 100 typical ns overdrive recovery time Output voltage swing RL = 2 k +25C 01 -4.98 +4.98 V Short circuit current, +25C 01 85 typical mA sinking Short circuit current, +25C 01 73 typical mA sourcing Linear output current  1% total harmonic distortion (THD) +25C 01 58 typical mA at 100 kHz, VOUT = 2 VPP Capacitive load drive 30% overshoot +25C 01 15 typical pF Power supply Operating range +25C 01 2.7 10 V Quiescent current per +25C 01 625 A amplifier 570 typical Positive power supply +VS = 3 V to 5 V, -VS = -5 V +25C 01 100 dB rejection ratio 119 typical Negative power supply +VS = +5 V, -VS = -3 V to -5 V +25C 01 100 dB rejection ratio 122 typical See footnotes at end of table.
