LTC6907

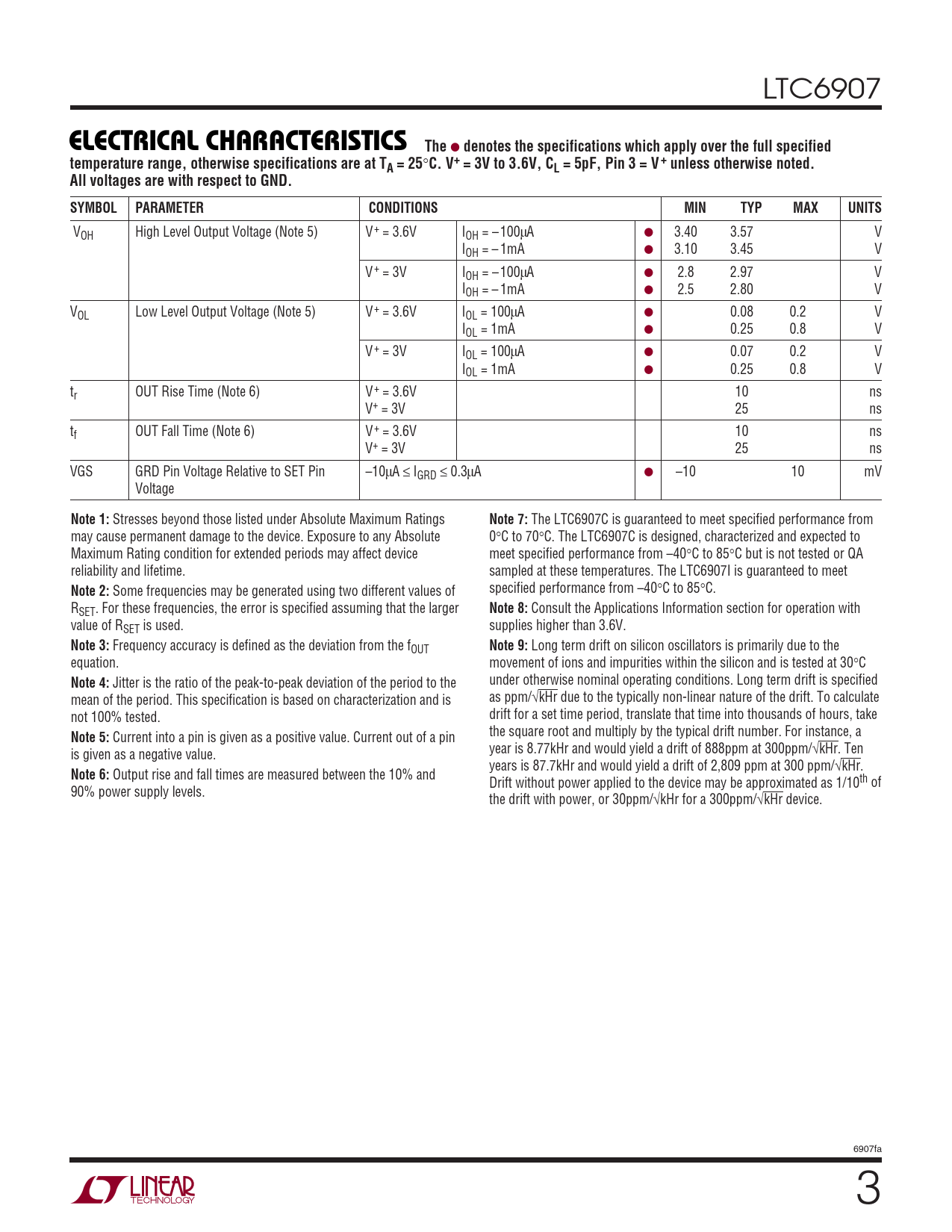

ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full specified temperature range, otherwise specifications are at TA = 25
°
C. V+ = 3V to 3.6V, CL = 5pF, Pin 3 = V+ unless otherwise noted. All voltages are with respect to GND. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOH High Level Output Voltage (Note 5) V+ = 3.6V IOH = – 100µA ● 3.40 3.57 V IOH = – 1mA ● 3.10 3.45 V V+ = 3V IOH = – 100µA ● 2.8 2.97 V IOH = – 1mA ● 2.5 2.80 V VOL Low Level Output Voltage (Note 5) V+ = 3.6V IOL = 100µA ● 0.08 0.2 V IOL = 1mA ● 0.25 0.8 V V+ = 3V IOL = 100µA ● 0.07 0.2 V IOL = 1mA ● 0.25 0.8 V tr OUT Rise Time (Note 6) V+ = 3.6V 10 ns V+ = 3V 25 ns tf OUT Fall Time (Note 6) V+ = 3.6V 10 ns V+ = 3V 25 ns VGS GRD Pin Voltage Relative to SET Pin –10µA ≤ IGRD ≤ 0.3µA ● –10 10 mV Voltage
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 7:
The LTC6907C is guaranteed to meet specified performance from may cause permanent damage to the device. Exposure to any Absolute 0°C to 70°C. The LTC6907C is designed, characterized and expected to Maximum Rating condition for extended periods may affect device meet specified performance from –40°C to 85°C but is not tested or QA reliability and lifetime. sampled at these temperatures. The LTC6907I is guaranteed to meet
Note 2:
Some frequencies may be generated using two different values of specified performance from –40°C to 85°C. RSET. For these frequencies, the error is specified assuming that the larger
Note 8:
Consult the Applications Information section for operation with value of RSET is used. supplies higher than 3.6V.
Note 3:
Frequency accuracy is defined as the deviation from the fOUT
Note 9:
Long term drift on silicon oscillators is primarily due to the equation. movement of ions and impurities within the silicon and is tested at 30°C
Note 4:
Jitter is the ratio of the peak-to-peak deviation of the period to the under otherwise nominal operating conditions. Long term drift is specified mean of the period. This specification is based on characterization and is as ppm/√kHr due to the typically non-linear nature of the drift. To calculate not 100% tested. drift for a set time period, translate that time into thousands of hours, take
Note 5:
Current into a pin is given as a positive value. Current out of a pin the square root and multiply by the typical drift number. For instance, a is given as a negative value. year is 8.77kHr and would yield a drift of 888ppm at 300ppm/√kHr. Ten years is 87.7kHr and would yield a drift of 2,809 ppm at 300 ppm/√kHr.
Note 6:
Output rise and fall times are measured between the 10% and Drift without power applied to the device may be approximated as 1/10th of 90% power supply levels. the drift with power, or 30ppm/√kHr for a 300ppm/√kHr device. 6907fa 3
