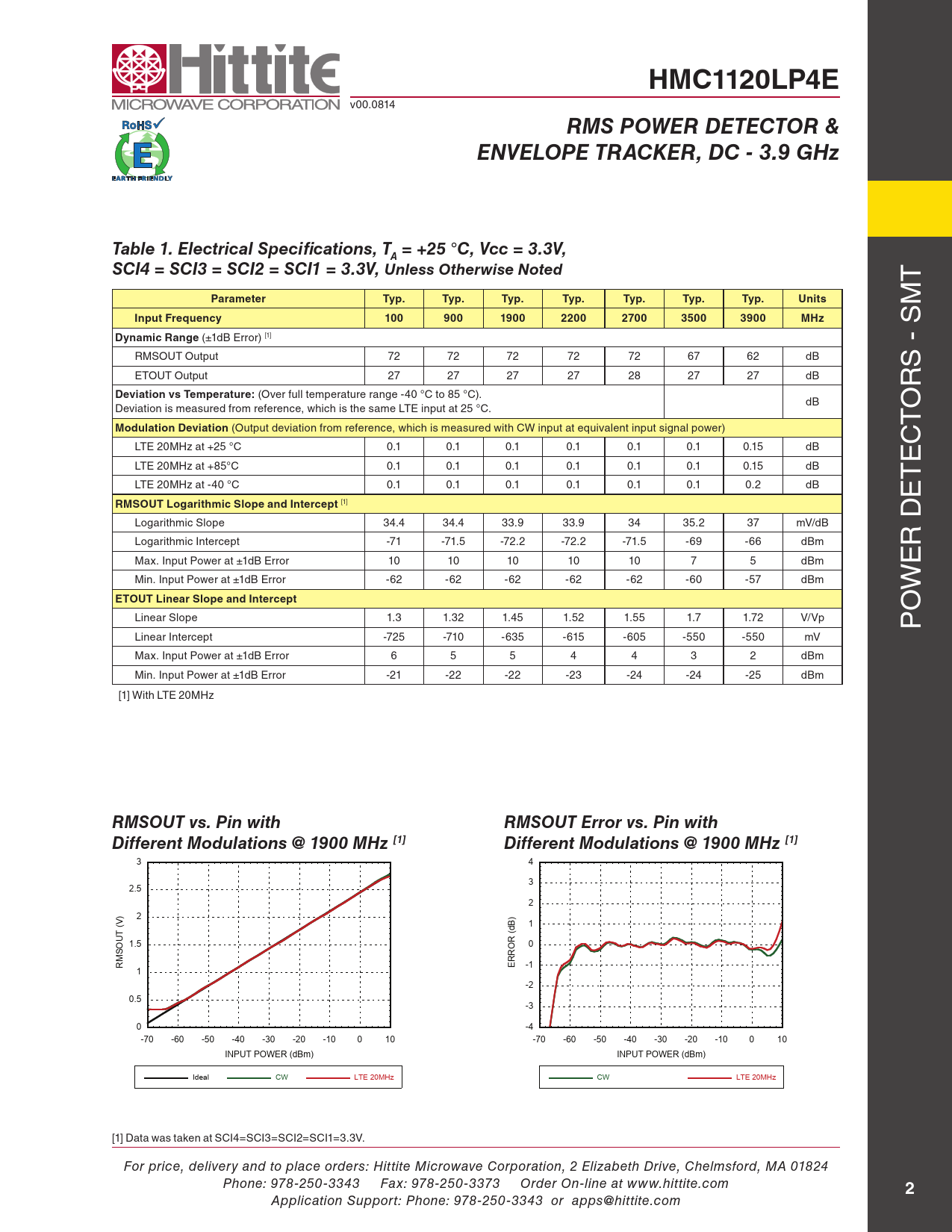

HMC1120LP4E. RMS POWER DETECTOR &. ENVELOPE TRACKER, DC - 3.9 GHz
Textversion des Dokuments
HMC1120LP4E
v00.0814
RMS POWER DETECTOR & ENVELOPE TRACKER, DC - 3.9 GHz Table 1. Electrical Specifications, T = +25 °C, Vcc = 3.3V, A SCi4 = SCi3 = SCi2 = SCi1 = 3.3V, Unless Otherwise Noted
T
Parameter Typ. Typ. Typ. Typ. Typ. Typ. Typ. Units
M
Input Frequency 100 900 1900 2200 2700 3500 3900 MHz
S
Dynamic Range
(±1dB Error) [1] - RMSOUT Output 72 72 72 72 72 67 62 dB ETOUT Output 27 27 27 27 28 27 27 dB RS
Deviation vs Temperature:
(Over full temperature range -40 °C to 85 °C). dB Deviation is measured from reference, which is the same LTE input at 25 °C. O T
Modulation Deviation
(Output deviation from reference, which is measured with CW input at equivalent input signal power) LTE 20MHz at +25 °C 0.1 0.1 0.1 0.1 0.1 0.1 0.15 dB C E LTE 20MHz at +85°C 0.1 0.1 0.1 0.1 0.1 0.1 0.15 dB T LTE 20MHz at -40 °C 0.1 0.1 0.1 0.1 0.1 0.1 0.2 dB E
RMSOUT Logarithmic Slope and Intercept
[1] Logarithmic Slope 34.4 34.4 33.9 33.9 34 35.2 37 mV/dB D Logarithmic Intercept -71 -71.5 -72.2 -72.2 -71.5 -69 -66 dBm R Max. Input Power at ±1dB Error 10 10 10 10 10 7 5 dBm E Min. Input Power at ±1dB Error -62 -62 -62 -62 -62 -60 -57 dBm W
ETOUT Linear Slope and Intercept
O Linear Slope 1.3 1.32 1.45 1.52 1.55 1.7 1.72 V/Vp P Linear Intercept -725 -710 -635 -615 -605 -550 -550 mV Max. Input Power at ±1dB Error 6 5 5 4 4 3 2 dBm Min. Input Power at ±1dB Error -21 -22 -22 -23 -24 -24 -25 dBm [1] With LTE 20MHz
RMSOUT vs. Pin with RMSOUT Error vs. Pin with Different Modulations @ 1900 MHz [1] Different Modulations @ 1900 MHz [1]
3 4 3 2.5 2 2 1 1.5 0 RMSOUT (V) ERROR (dB) -1 1 -2 0.5 -3 0 -4 -70 -60 -50 -40 -30 -20 -10 0 10 -70 -60 -50 -40 -30 -20 -10 0 10 INPUT POWER (dBm) INPUT POWER (dBm) Ideal CW LTE 20MHz CW LTE 20MHz [1] Data was taken at SCI4=SCI3=SCI2=SCI1=3.3V. For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com
2
