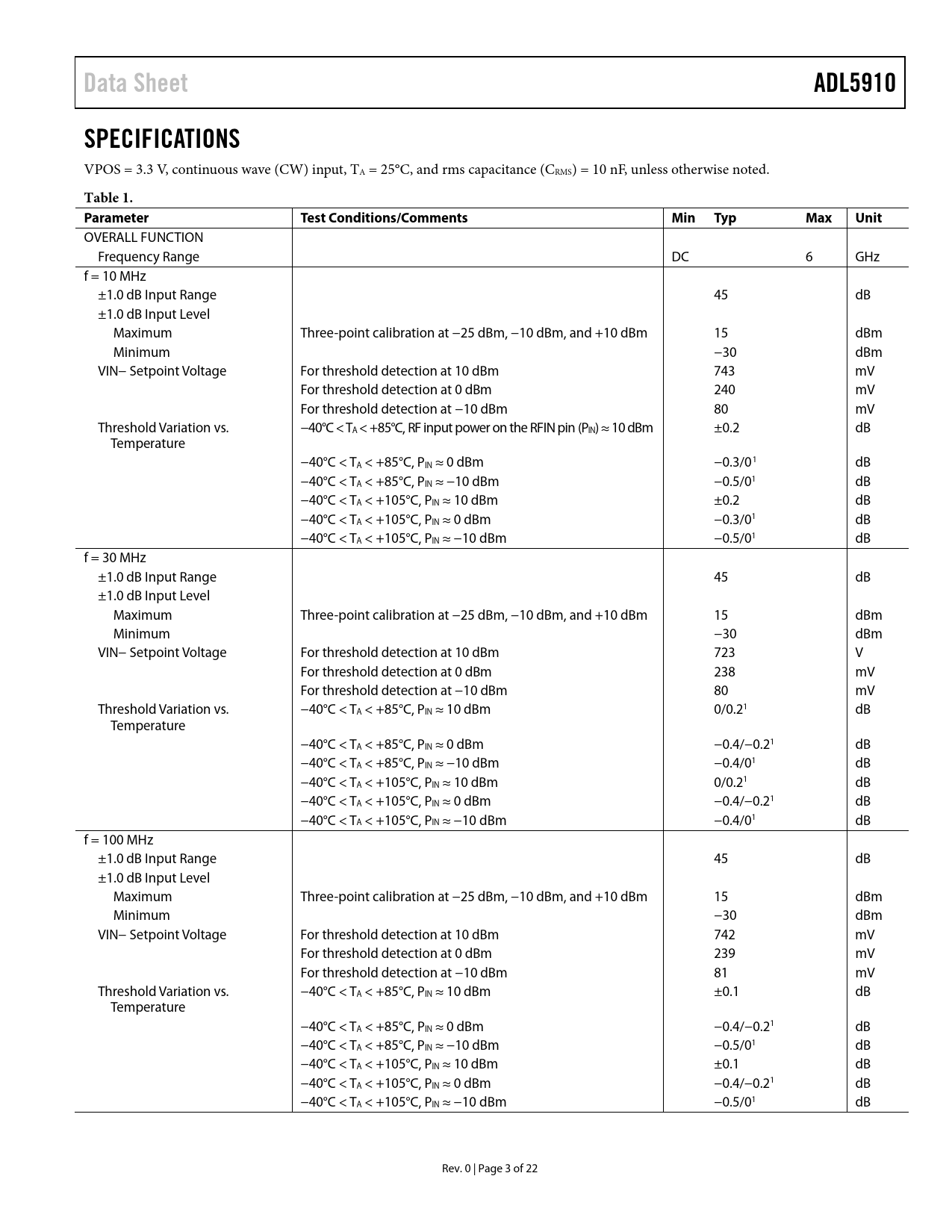

Data Sheet ADL5910 SPECIFICATIONS
VPOS = 3.3 V, continuous wave (CW) input, TA = 25°C, and rms capacitance (CRMS) = 10 nF, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
OVERALL FUNCTION Frequency Range DC 6 GHz f = 10 MHz ±1.0 dB Input Range 45 dB ±1.0 dB Input Level Maximum Three-point calibration at −25 dBm, −10 dBm, and +10 dBm 15 dBm Minimum −30 dBm VIN− Setpoint Voltage For threshold detection at 10 dBm 743 mV For threshold detection at 0 dBm 240 mV For threshold detection at −10 dBm 80 mV Threshold Variation vs. −40°C < TA < +85°C, RF input power on the RFIN pin (PIN) ≈ 10 dBm ±0.2 dB Temperature −40°C < TA < +85°C, PIN ≈ 0 dBm −0.3/01 dB −40°C < TA < +85°C, PIN ≈ −10 dBm −0.5/01 dB −40°C < TA < +105°C, PIN ≈ 10 dBm ±0.2 dB −40°C < TA < +105°C, PIN ≈ 0 dBm −0.3/01 dB −40°C < TA < +105°C, PIN ≈ −10 dBm −0.5/01 dB f = 30 MHz ±1.0 dB Input Range 45 dB ±1.0 dB Input Level Maximum Three-point calibration at −25 dBm, −10 dBm, and +10 dBm 15 dBm Minimum −30 dBm VIN− Setpoint Voltage For threshold detection at 10 dBm 723 V For threshold detection at 0 dBm 238 mV For threshold detection at −10 dBm 80 mV Threshold Variation vs. −40°C < TA < +85°C, PIN ≈ 10 dBm 0/0.21 dB Temperature −40°C < TA < +85°C, PIN ≈ 0 dBm −0.4/−0.21 dB −40°C < TA < +85°C, PIN ≈ −10 dBm −0.4/01 dB −40°C < TA < +105°C, PIN ≈ 10 dBm 0/0.21 dB −40°C < TA < +105°C, PIN ≈ 0 dBm −0.4/−0.21 dB −40°C < TA < +105°C, PIN ≈ −10 dBm −0.4/01 dB f = 100 MHz ±1.0 dB Input Range 45 dB ±1.0 dB Input Level Maximum Three-point calibration at −25 dBm, −10 dBm, and +10 dBm 15 dBm Minimum −30 dBm VIN− Setpoint Voltage For threshold detection at 10 dBm 742 mV For threshold detection at 0 dBm 239 mV For threshold detection at −10 dBm 81 mV Threshold Variation vs. −40°C < TA < +85°C, PIN ≈ 10 dBm ±0.1 dB Temperature −40°C < TA < +85°C, PIN ≈ 0 dBm −0.4/−0.21 dB −40°C < TA < +85°C, PIN ≈ −10 dBm −0.5/01 dB −40°C < TA < +105°C, PIN ≈ 10 dBm ±0.1 dB −40°C < TA < +105°C, PIN ≈ 0 dBm −0.4/−0.21 dB −40°C < TA < +105°C, PIN ≈ −10 dBm −0.5/01 dB Rev. 0 | Page 3 of 22 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION BASIC CONNECTIONS Q AND QB RESPONSE TIME SETTING THE VIN− THRESHOLD DETECTION VOLTAGE APPLICATIONS INFORMATION A COMPLETE INPUT PROTECTION CIRCUIT RESET ON ENABLE OR AT POWER-UP IMPROVING FREQUENCY FLATNESS EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
