Datasheet AD625 (Analog Devices) - 4

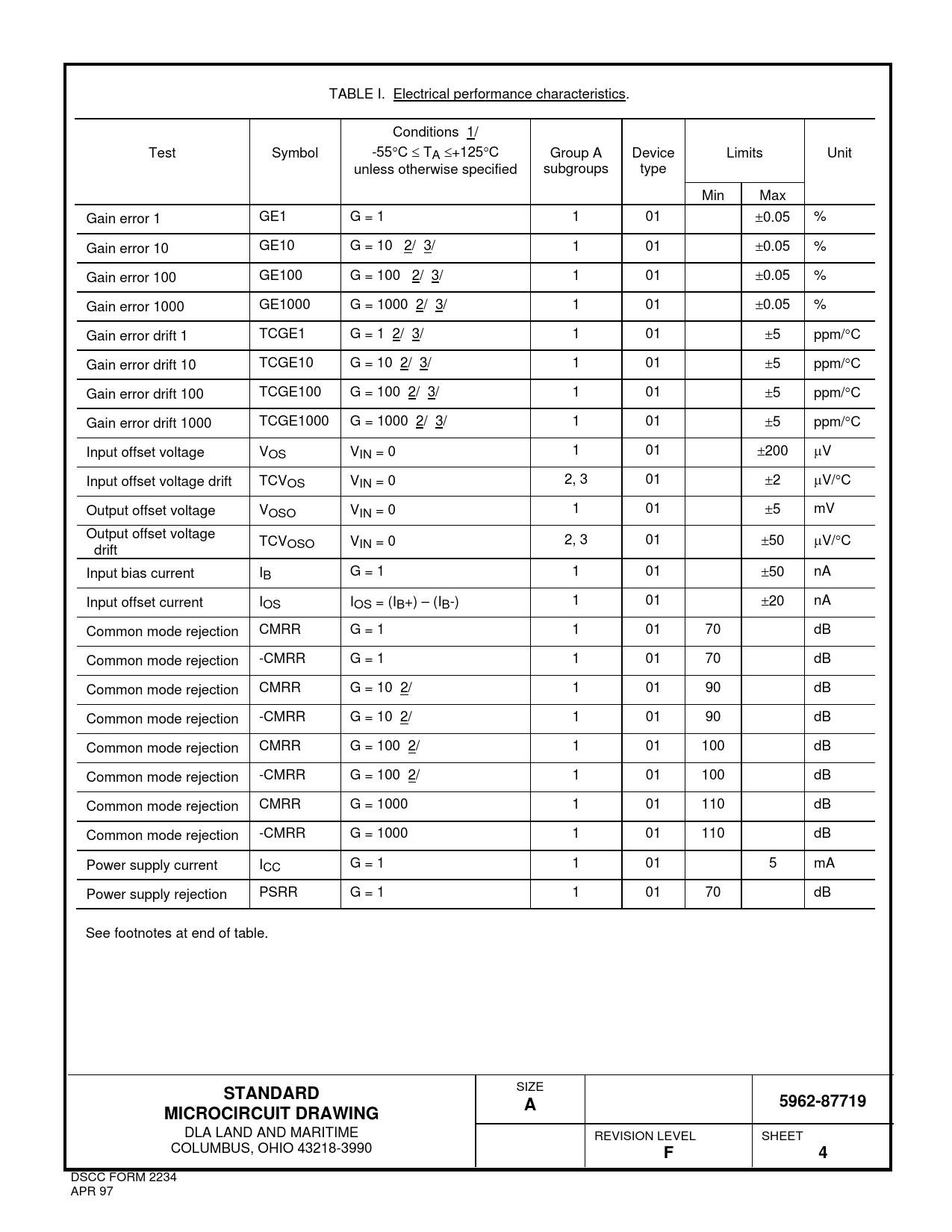

TABLE I. Electrical performance characteristics. Conditions 1/ Test Symbol -55C  TA +125C Group A Device Limits Unit unless otherwise specified subgroups type Min Max Gain error 1 GE1 G = 1 1 01 0.05 % Gain error 10 GE10 G = 10 2/ 3/ 1 01 0.05 % Gain error 100 GE100 G = 100 2/ 3/ 1 01 0.05 % Gain error 1000 GE1000 G = 1000 2/ 3/ 1 01 0.05 % Gain error drift 1 TCGE1 G = 1 2/ 3/ 1 01 5 ppm/C Gain error drift 10 TCGE10 G = 10 2/ 3/ 1 01 5 ppm/C Gain error drift 100 TCGE100 G = 100 2/ 3/ 1 01 5 ppm/C Gain error drift 1000 TCGE1000 G = 1000 2/ 3/ 1 01 5 ppm/C Input offset voltage VOS VIN = 0 1 01 200 V Input offset voltage drift TCVOS VIN = 0 2, 3 01 2 V/C Output offset voltage VOSO VIN = 0 1 01 5 mV Output offset voltage TCV drift OSO VIN = 0 2, 3 01 50 V/C Input bias current IB G = 1 1 01 50 nA Input offset current IOS IOS = (IB+) – (IB-) 1 01 20 nA Common mode rejection CMRR G = 1 1 01 70 dB Common mode rejection -CMRR G = 1 1 01 70 dB Common mode rejection CMRR G = 10 2/ 1 01 90 dB Common mode rejection -CMRR G = 10 2/ 1 01 90 dB Common mode rejection CMRR G = 100 2/ 1 01 100 dB Common mode rejection -CMRR G = 100 2/ 1 01 100 dB Common mode rejection CMRR G = 1000 1 01 110 dB Common mode rejection -CMRR G = 1000 1 01 110 dB Power supply current ICC G = 1 1 01 5 mA Power supply rejection PSRR G = 1 1 01 70 dB See footnotes at end of table.
STANDARD
SIZE
A 5962-87719 MICROCIRCUIT DRAWING
DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990
F 4
DSCC FORM 2234 APR 97
