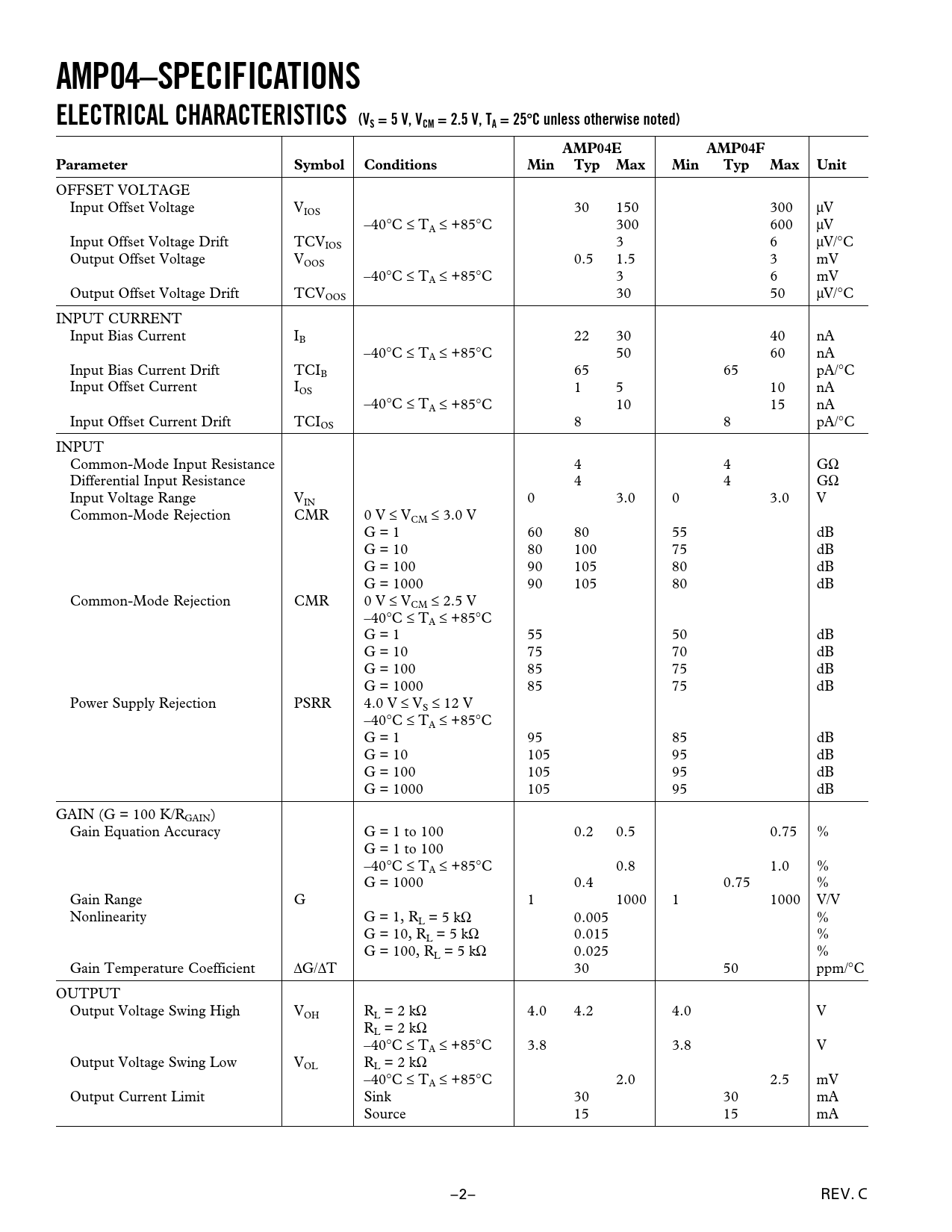

AMP04–SPECIFICATIONS ELECTRICAL CHARACTERISTICS (VS = 5 V, VCM = 2.5 V, TA = 25 C unless otherwise noted) AMP04E AMP04F Parameter Symbol Conditions Min Typ Max Min Typ Max Unit
OFFSET VOLTAGE Input Offset Voltage VIOS 30 150 300 µV –40°C ≤ TA ≤ +85°C 300 600 µV Input Offset Voltage Drift TCVIOS 3 6 µV/°C Output Offset Voltage VOOS 0.5 1.5 3 mV –40°C ≤ TA ≤ +85°C 3 6 mV Output Offset Voltage Drift TCVOOS 30 50 µV/°C INPUT CURRENT Input Bias Current IB 22 30 40 nA –40°C ≤ TA ≤ +85°C 50 60 nA Input Bias Current Drift TCIB 65 65 pA/°C Input Offset Current IOS 1 5 10 nA –40°C ≤ TA ≤ +85°C 10 15 nA Input Offset Current Drift TCIOS 8 8 pA/°C INPUT Common-Mode Input Resistance 4 4 GΩ Differential Input Resistance 4 4 GΩ Input Voltage Range VIN 0 3.0 0 3.0 V Common-Mode Rejection CMR 0 V ≤ VCM ≤ 3.0 V G = 1 60 80 55 dB G = 10 80 100 75 dB G = 100 90 105 80 dB G = 1000 90 105 80 dB Common-Mode Rejection CMR 0 V ≤ VCM ≤ 2.5 V –40°C ≤ TA ≤ +85°C G = 1 55 50 dB G = 10 75 70 dB G = 100 85 75 dB G = 1000 85 75 dB Power Supply Rejection PSRR 4.0 V ≤ VS ≤ 12 V –40°C ≤ TA ≤ +85°C G = 1 95 85 dB G = 10 105 95 dB G = 100 105 95 dB G = 1000 105 95 dB GAIN (G = 100 K/RGAIN) Gain Equation Accuracy G = 1 to 100 0.2 0.5 0.75 % G = 1 to 100 –40°C ≤ TA ≤ +85°C 0.8 1.0 % G = 1000 0.4 0.75 % Gain Range G 1 1000 1 1000 V/V Nonlinearity G = 1, RL = 5 kΩ 0.005 % G = 10, RL = 5 kΩ 0.015 % G = 100, RL = 5 kΩ 0.025 % Gain Temperature Coefficient ∆G/∆T 30 50 ppm/°C OUTPUT Output Voltage Swing High VOH RL = 2 kΩ 4.0 4.2 4.0 V RL = 2 kΩ –40°C ≤ TA ≤ +85°C 3.8 3.8 V Output Voltage Swing Low VOL RL = 2 kΩ –40°C ≤ TA ≤ +85°C 2.0 2.5 mV Output Current Limit Sink 30 30 mA Source 15 15 mA –2– REV. C
