DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/16619

DLA LAND AND MARITIME COLUMBUS, OHIO 16236 V62/16619

Modelllinie für dieses Datenblatt

Textversion des Dokuments

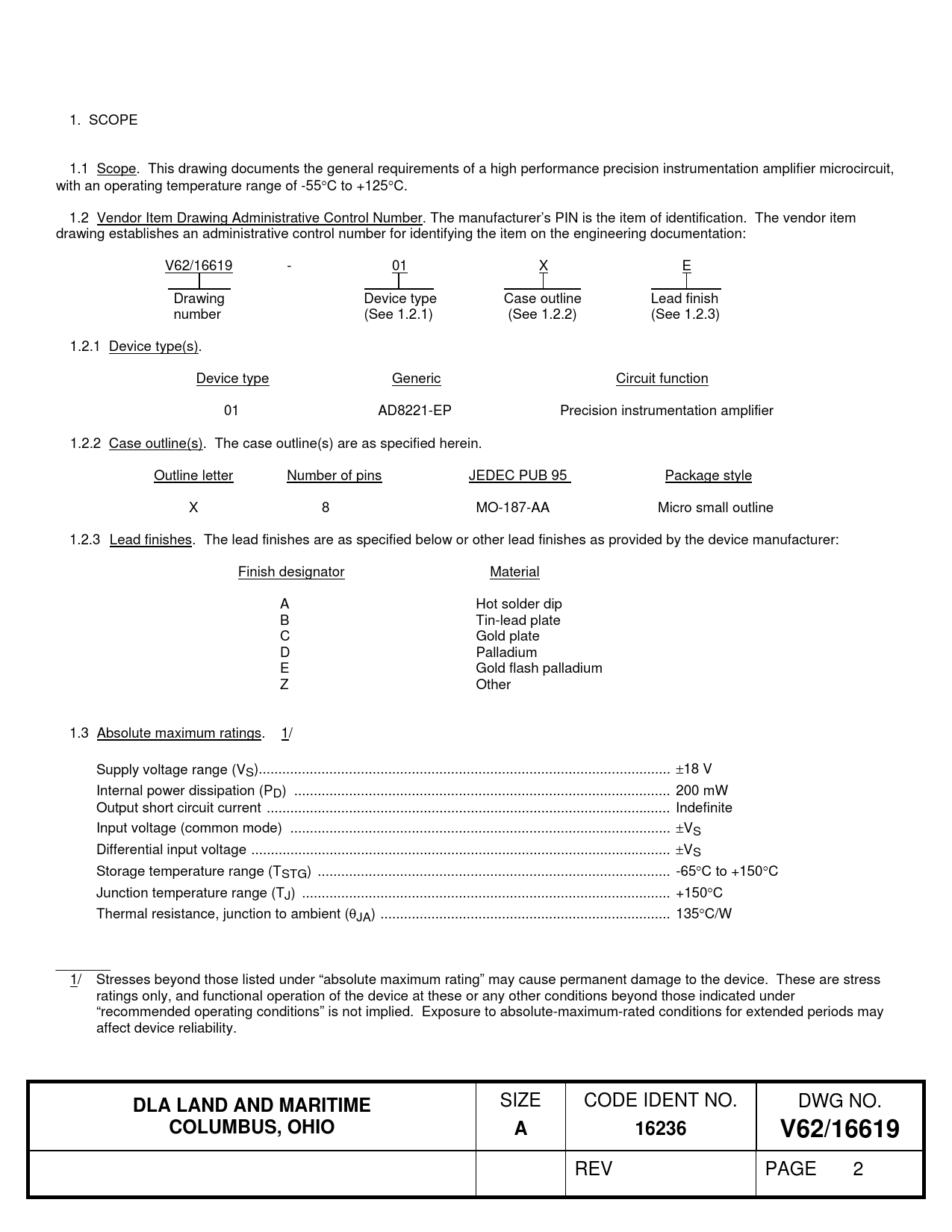

1. SCOPE 1.1 Scope. This drawing documents the general requirements of a high performance precision instrumentation amplifier microcircuit, with an operating temperature range of -55C to +125C. 1.2 Vendor Item Drawing Administrative Control Number. The manufacturer’s PIN is the item of identification. The vendor item drawing establishes an administrative control number for identifying the item on the engineering documentation: V62/16619 - 01 X E Drawing Device type Case outline Lead finish number (See 1.2.1) (See 1.2.2) (See 1.2.3) 1.2.1 Device type(s). Device type Generic Circuit function 01 AD8221-EP Precision instrumentation amplifier 1.2.2 Case outline(s). The case outline(s) are as specified herein. Outline letter Number of pins JEDEC PUB 95 Package style X 8 MO-187-AA Micro small outline 1.2.3 Lead finishes. The lead finishes are as specified below or other lead finishes as provided by the device manufacturer: Finish designator Material A Hot solder dip B Tin-lead plate C Gold plate D Palladium E Gold flash palladium Z Other 1.3 Absolute maximum ratings. 1/ Supply voltage range (VS)... 18 V Internal power dissipation (PD) .. 200 mW Output short circuit current ... Indefinite Input voltage (common mode) ... VS Differential input voltage ... VS Storage temperature range (TSTG) .. -65C to +150C Junction temperature range (TJ) .. +150C Thermal resistance, junction to ambient (JA) .. 135C/W _______ 1/ Stresses beyond those listed under “absolute maximum rating” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/16619
REV PAGE 2
