AD8293G80/AD8293G160. ABSOLUTE MAXIMUM RATINGS. Table 4. Parameter Rating. THERMAL RESISTANCE. Table 5. Package Type. θ 1. θJC Unit

AD8293G80/AD8293G160 ABSOLUTE MAXIMUM RATINGS Table 4 Parameter Rating THERMAL RESISTANCE Table 5 Package Type θ 1 θJC Unit

Modelllinie für dieses Datenblatt

Textversion des Dokuments

link to page 5 link to page 5

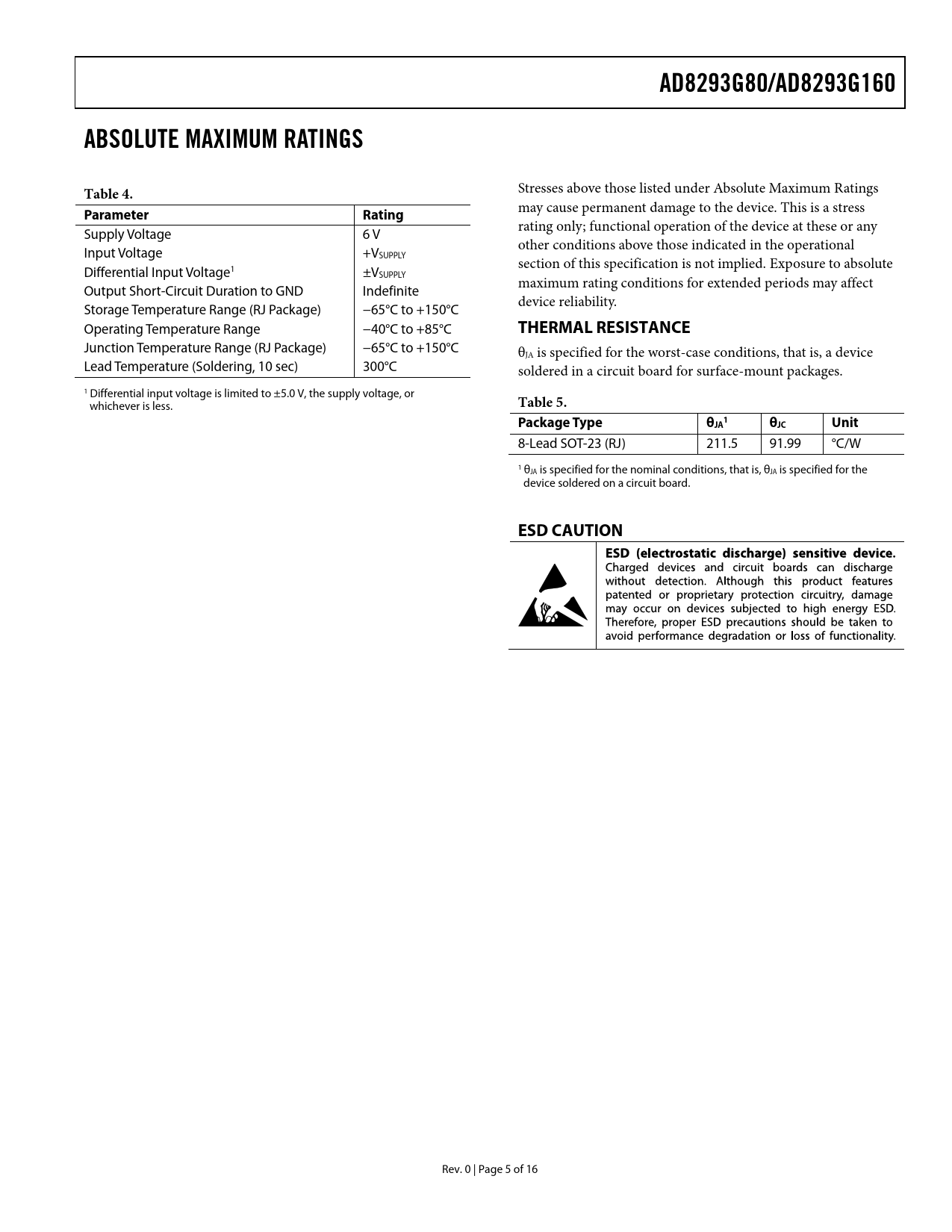

AD8293G80/AD8293G160 ABSOLUTE MAXIMUM RATINGS Table 4.
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Parameter Rating
rating only; functional operation of the device at these or any Supply Voltage 6 V other conditions above those indicated in the operational Input Voltage +VSUPPLY section of this specification is not implied. Exposure to absolute Differential Input Voltage1 ±VSUPPLY maximum rating conditions for extended periods may affect Output Short-Circuit Duration to GND Indefinite device reliability. Storage Temperature Range (RJ Package) −65°C to +150°C Operating Temperature Range −40°C to +85°C
THERMAL RESISTANCE
Junction Temperature Range (RJ Package) −65°C to +150°C θJA is specified for the worst-case conditions, that is, a device Lead Temperature (Soldering, 10 sec) 300°C soldered in a circuit board for surface-mount packages. 1 Differential input voltage is limited to ±5.0 V, the supply voltage, or whichever is less.
Table 5. Package Type θ 1 JA θJC Unit
8-Lead SOT-23 (RJ) 211.5 91.99 °C/W 1 θJA is specified for the nominal conditions, that is, θJA is specified for the device soldered on a circuit board.
ESD CAUTION
Rev. 0 | Page 5 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION HIGH PSR AND CMR 1/f NOISE CORRECTION APPLICATIONS INFORMATION OVERVIEW REFERENCE CONNECTION OUTPUT FILTERING CLOCK FEEDTHROUGH POWER SUPPLY BYPASSING INPUT OVERVOLTAGE PROTECTION OUTLINE DIMENSIONS ORDERING GUIDE
