Datasheet ADL5561 (Analog Devices) - 7
| Hersteller | Analog Devices |
| Beschreibung | 2.9 GHz Ultralow Distortion RF/IF Differential Amplifier |
| Seiten / Seite | 25 / 7 — ADL5561. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. … |
| Revision | G |
| Dateiformat / Größe | PDF / 773 Kb |
| Dokumentensprache | Englisch |
ADL5561. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments

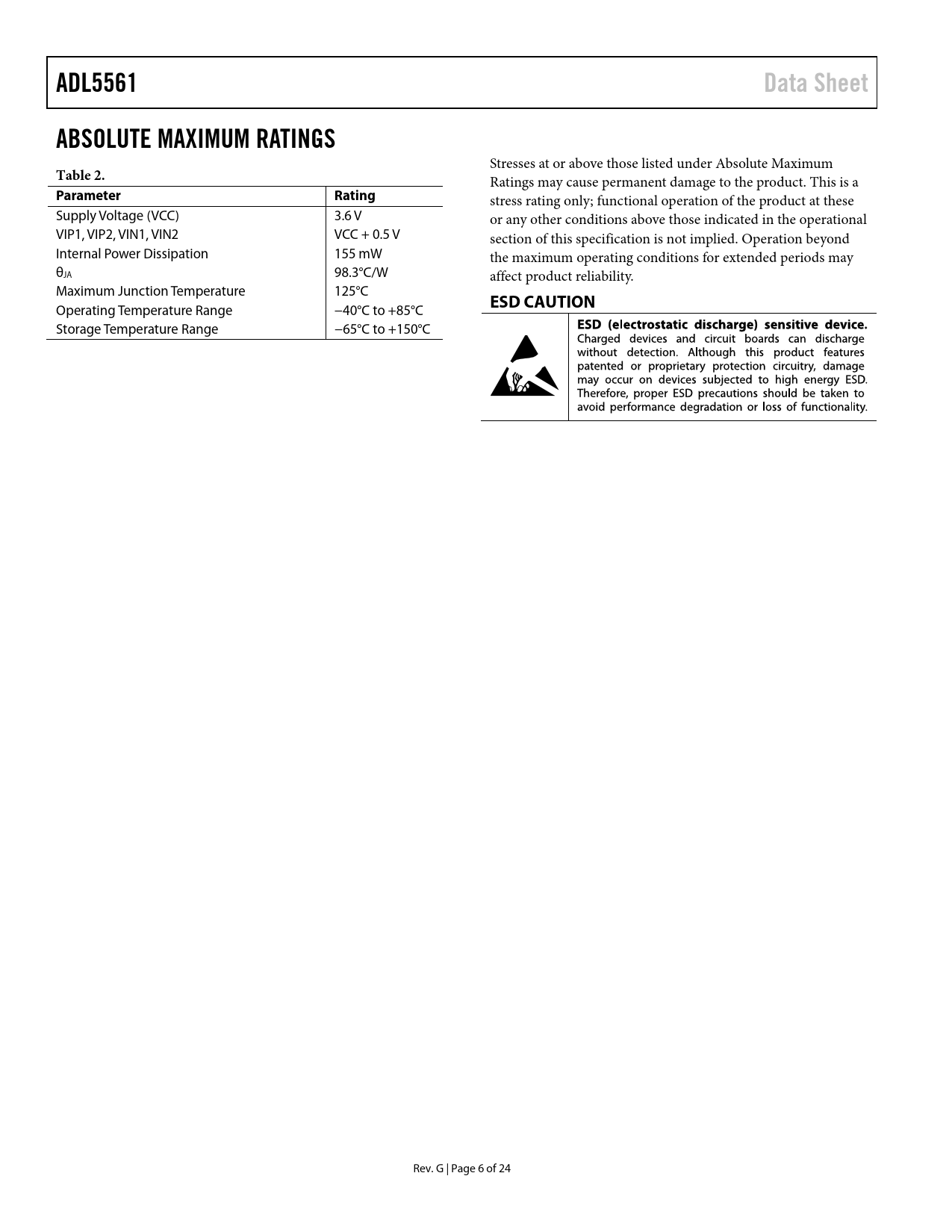

ADL5561 Data Sheet ABSOLUTE MAXIMUM RATINGS
Stresses at or above those listed under Absolute Maximum
Table 2.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these Supply Voltage (VCC) 3.6 V or any other conditions above those indicated in the operational VIP1, VIP2, VIN1, VIN2 VCC + 0.5 V section of this specification is not implied. Operation beyond Internal Power Dissipation 155 mW the maximum operating conditions for extended periods may θJA 98.3°C/W affect product reliability. Maximum Junction Temperature 125°C
ESD CAUTION
Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Rev. G | Page 6 of 24 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION BASIC STRUCTURE APPLICATIONS INFORMATION BASIC CONNECTIONS INPUT AND OUTPUT INTERFACING Single-Ended Input to Differential Output GAIN ADJUSTMENT AND INTERFACING ADC INTERFACING LAYOUT CONSIDERATIONS SOLDERING INFORMATION EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
