Datasheet AD876 (Analog Devices)
Hersteller | Analog Devices |
Beschreibung | 10-Bit 20 MSPS 160 mW CMOS A/D Converter |
Seiten / Seite | 17 / 1 — 10-Bit 20 MSPS 160 mW. CMOS A/D Converter. AD876. FEATURES. FUNCTIONAL … |
Revision | B |
Dateiformat / Größe | PDF / 374 Kb |
Dokumentensprache | Englisch |
10-Bit 20 MSPS 160 mW. CMOS A/D Converter. AD876. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Modelllinie für dieses Datenblatt

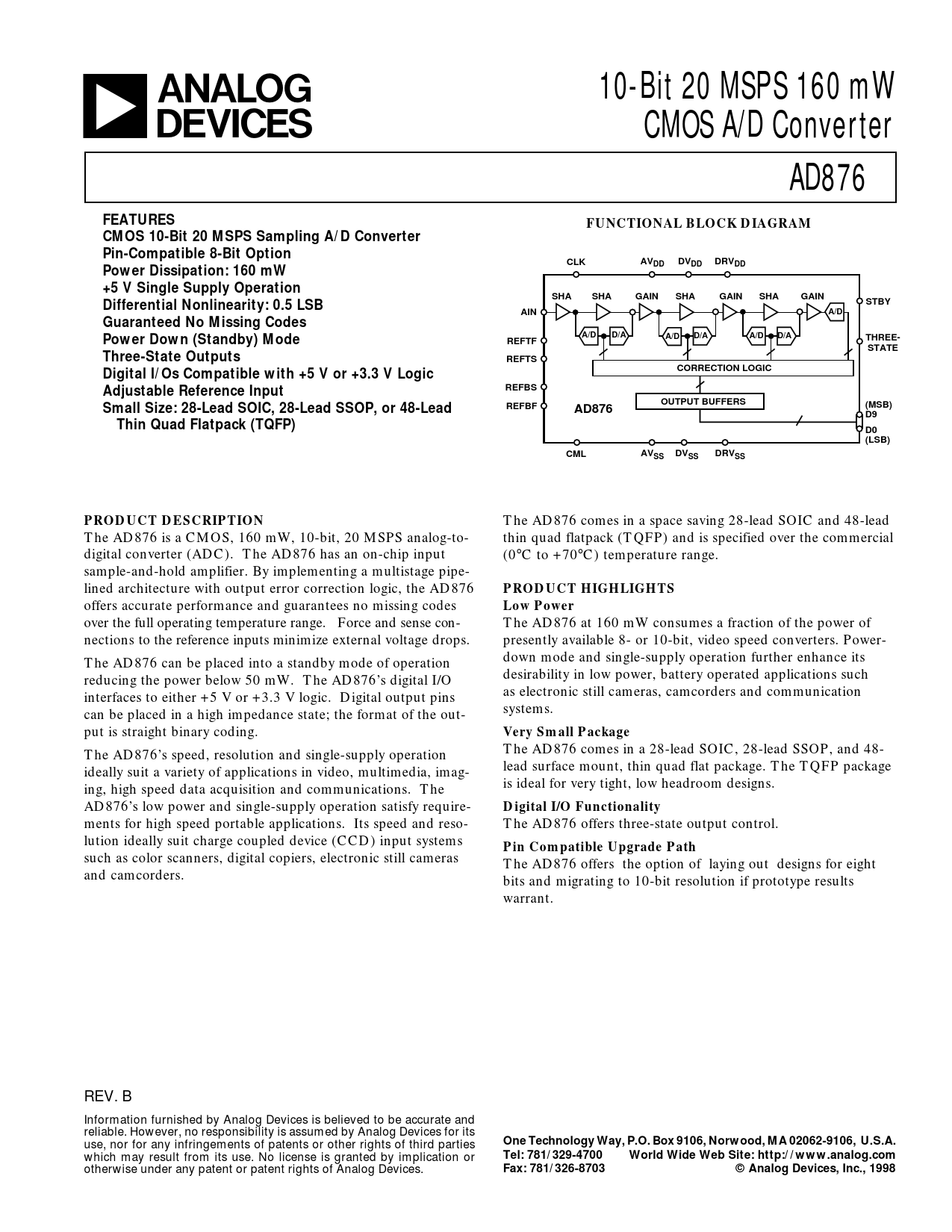

Textversion des Dokuments
a
10-Bit 20 MSPS 160 mW CMOS A/D Converter AD876 FEATURES FUNCTIONAL BLOCK DIAGRAM CMOS 10-Bit 20 MSPS Sampling A/D Converter Pin-Compatible 8-Bit Option CLK AV DV DRV DD DD DD Power Dissipation: 160 mW +5 V Single Supply Operation SHA SHA GAIN SHA GAIN SHA GAIN Differential Nonlinearity: 0.5 LSB STBY AIN A/D Guaranteed No Missing Codes Power Down (Standby) Mode A/D D/A A/D D/A A/D D/A REFTF THREE- STATE Three-State Outputs REFTS Digital I/Os Compatible with +5 V or +3.3 V Logic CORRECTION LOGIC Adjustable Reference Input REFBS OUTPUT BUFFERS Small Size: 28-Lead SOIC, 28-Lead SSOP, or 48-Lead REFBF (MSB) AD876 D9 Thin Quad Flatpack (TQFP) D0 (LSB) CML AV DV DRV SS SS SS PRODUCT DESCRIPTION
The AD876 comes in a space saving 28-lead SOIC and 48-lead The AD876 is a CMOS, 160 mW, 10-bit, 20 MSPS analog-to- thin quad flatpack (TQFP) and is specified over the commercial digital converter (ADC). The AD876 has an on-chip input (0°C to +70°C) temperature range. sample-and-hold amplifier. By implementing a multistage pipe- lined architecture with output error correction logic, the AD876
PRODUCT HIGHLIGHTS
offers accurate performance and guarantees no missing codes
Low Power
over the full operating temperature range. Force and sense con- The AD876 at 160 mW consumes a fraction of the power of nections to the reference inputs minimize external voltage drops. presently available 8- or 10-bit, video speed converters. Power- The AD876 can be placed into a standby mode of operation down mode and single-supply operation further enhance its reducing the power below 50 mW. The AD876’s digital I/O desirability in low power, battery operated applications such interfaces to either +5 V or +3.3 V logic. Digital output pins as electronic still cameras, camcorders and communication can be placed in a high impedance state; the format of the out- systems. put is straight binary coding.
Very Small Package
The AD876’s speed, resolution and single-supply operation The AD876 comes in a 28-lead SOIC, 28-lead SSOP, and 48- ideally suit a variety of applications in video, multimedia, imag- lead surface mount, thin quad flat package. The TQFP package ing, high speed data acquisition and communications. The is ideal for very tight, low headroom designs. AD876’s low power and single-supply operation satisfy require-
Digital I/O Functionality
ments for high speed portable applications. Its speed and reso- The AD876 offers three-state output control. lution ideally suit charge coupled device (CCD) input systems
Pin Compatible Upgrade Path
such as color scanners, digital copiers, electronic still cameras The AD876 offers the option of laying out designs for eight and camcorders. bits and migrating to 10-bit resolution if prototype results warrant. REV. B Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
which may result from its use. No license is granted by implication or
Tel: 781/329-4700 World Wide Web Site: http://www.analog.com
otherwise under any patent or patent rights of Analog Devices.
Fax: 781/326-8703 © Analog Devices, Inc., 1998
