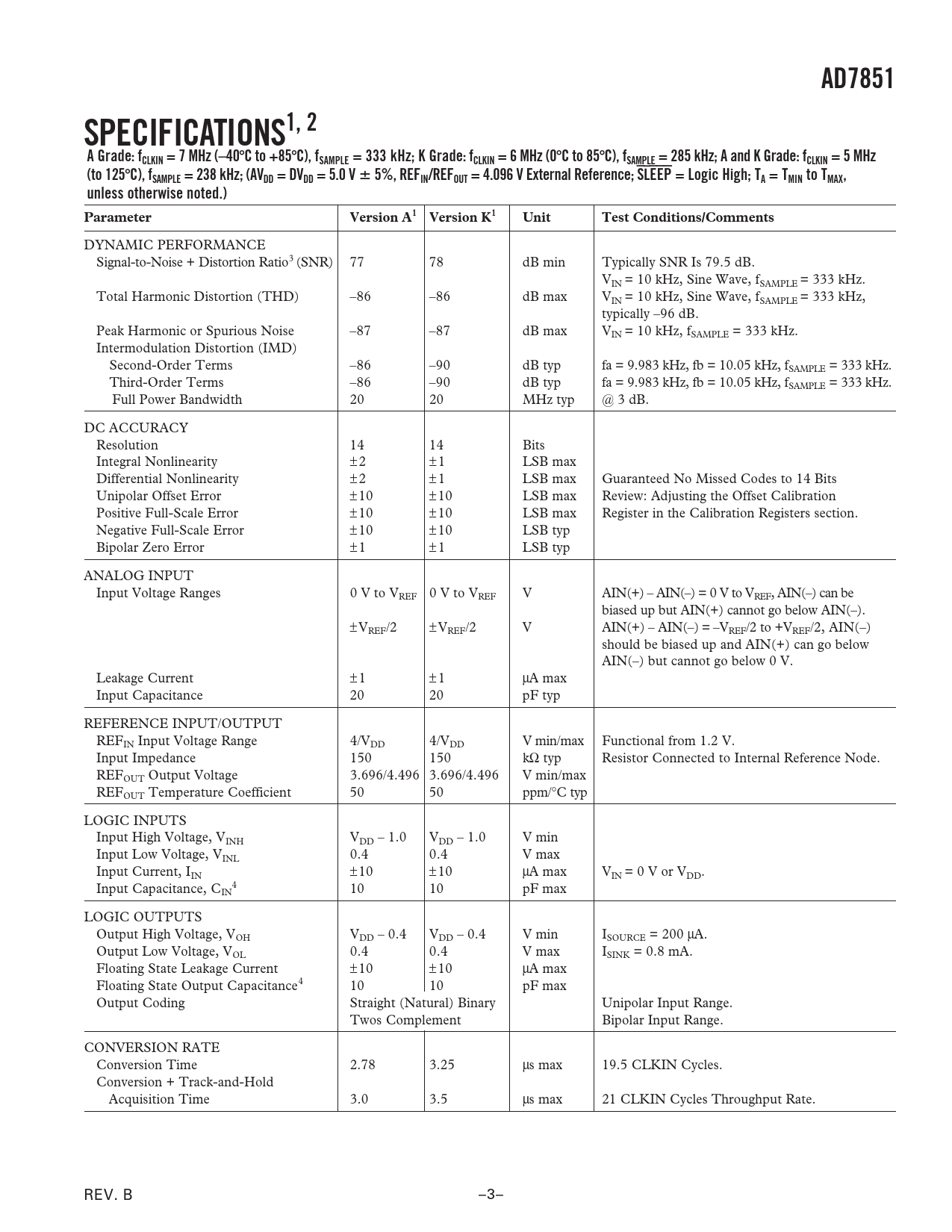

AD7851 SPECIFICATIONS1, 2 A Grade: fCLKIN = 7 MHz (–40
ⴗ
C to +85
ⴗ
C), fSAMPLE = 333 kHz; K Grade: fCLKIN = 6 MHz (0
ⴗ
C to 85
ⴗ
C), fSAMPLE = 285 kHz; A and K Grade: fCLKIN = 5 MHz (to 125
ⴗ
C), fSAMPLE = 238 kHz; (AVDD = DVDD = 5.0 V
ⴞ
5%, REFIN/REFOUT = 4.096 V External Reference; SLEEP = Logic High; TA = TMIN to TMAX, unless otherwise noted.) Parameter Version A1 Version K1 Unit Test Conditions/Comments
