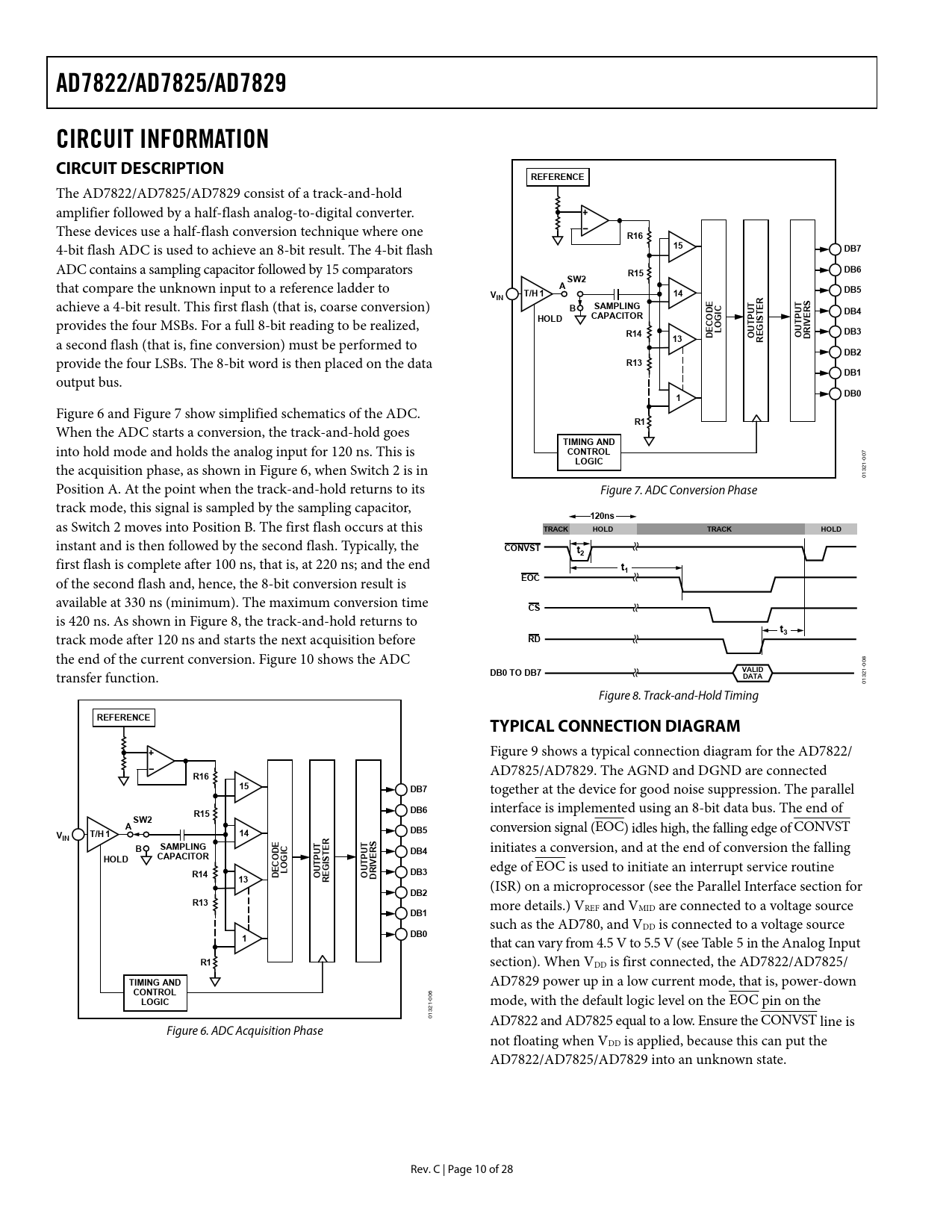

AD7822/AD7825/AD7829 CIRCUIT INFORMATION CIRCUIT DESCRIPTION REFERENCE
The AD7822/AD7825/AD7829 consist of a track-and-hold amplifier followed by a half-flash analog-to-digital converter. These devices use a half-flash conversion technique where one
R16
4-bit flash ADC is used to achieve an 8-bit result. The 4-bit flash
15 DB7
ADC contains a sampling capacitor followed by 15 comparators
R15 DB6 SW2
that compare the unknown input to a reference ladder to
A V T/H 1 DB5 14 IN
achieve a 4-bit result. This first flash (that is, coarse conversion)
R SAMPLING B T T DE U ET U RS DB4 HOLD CAPACITOR E
provides the four MSBs. For a full 8-bit reading to be realized,
CO TP IS TP V G R14 LOGIC DB3 DE OU OU DRI
a second flash (that is, fine conversion) must be performed to
13 RE DB2
provide the four LSBs. The 8-bit word is then placed on the data
R13 DB1
output bus.
DB0 1
Figure 6 and Figure 7 show simplified schematics of the ADC.
R1
When the ADC starts a conversion, the track-and-hold goes
TIMING AND
into hold mode and holds the analog input for 120 ns. This is
CONTROL LOGIC
007 the acquisition phase, as shown in Figure 6, when Switch 2 is in 21- 013 Position A. At the point when the track-and-hold returns to its Figure 7. ADC Conversion Phase track mode, this signal is sampled by the sampling capacitor,
120ns
as Switch 2 moves into Position B. The first flash occurs at this
TRACK HOLD TRACK HOLD
instant and is then followed by the second flash. Typically, the
CONVST t2
first flash is complete after 100 ns, that is, at 220 ns; and the end
t1
of the second flash and, hence, the 8-bit conversion result is
EOC
available at 330 ns (minimum). The maximum conversion time
CS
is 420 ns. As shown in Figure 8, the track-and-hold returns to
t3
track mode after 120 ns and starts the next acquisition before
RD
the end of the current conversion. Figure 10 shows the ADC 008
VALID
transfer function.
DB0 TO DB7 DATA
1321- 0 Figure 8. Track-and-Hold Timing
REFERENCE TYPICAL CONNECTION DIAGRAM
Figure 9 shows a typical connection diagram for the AD7822/ AD7825/AD7829. The AGND and DGND are connected
R16 15 DB7
together at the device for good noise suppression. The parallel
R15 DB6
interface is implemented using an 8-bit data bus. The end of
SW2 A
conversion signal (EOC) idles high, the falling edge of CONVST
V T/H 1 DB5 14 IN R SAMPLING B T T DE IC U ET U RS DB4
initiates a conversion, and at the end of conversion the falling
HOLD CAPACITOR G P E CO T IS TP V G
edge of EOC is used to initiate an interrupt service routine
R14 LO DB3 DE 13 OU OU RE DRI
(ISR) on a microprocessor (see the Parallel Interface section for
DB2 R13
more details.) V
DB1
REF and VMID are connected to a voltage source such as the AD780, and VDD is connected to a voltage source
DB0 1
that can vary from 4.5 V to 5.5 V (see Table 5 in the Analog Input
R1
section). When VDD is first connected, the AD7822/AD7825/
TIMING AND
AD7829 power up in a low current mode, that is, power-down
CONTROL LOGIC
006 mode, with the default logic level on the EOC pin on the 01321- AD7822 and AD7825 equal to a low. Ensure the CONVST line is Figure 6. ADC Acquisition Phase not floating when VDD is applied, because this can put the AD7822/AD7825/AD7829 into an unknown state. Rev. C | Page 10 of 28 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING CHARACTERISTICS TIMING DIAGRAM ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TERMINOLOGY CIRCUIT INFORMATION CIRCUIT DESCRIPTION TYPICAL CONNECTION DIAGRAM ADC TRANSFER FUNCTION ANALOG INPUT POWER-UP TIMES POWER VS. THROUGHPUT OPERATING MODES PARALLEL INTERFACE MICROPROCESSOR INTERFACING AD7822/AD7825/AD7829 TO 8051 AD7822/AD7825/AD7829 TO PIC16C6x/PIC16C7x AD7822/AD7825/AD7829 TO ADSP-21xx INTERFACING MULTIPLEXER ADDRESS INPUTS AD7822 STANDALONE OPERATION OUTLINE DIMENSIONS ORDERING GUIDE
