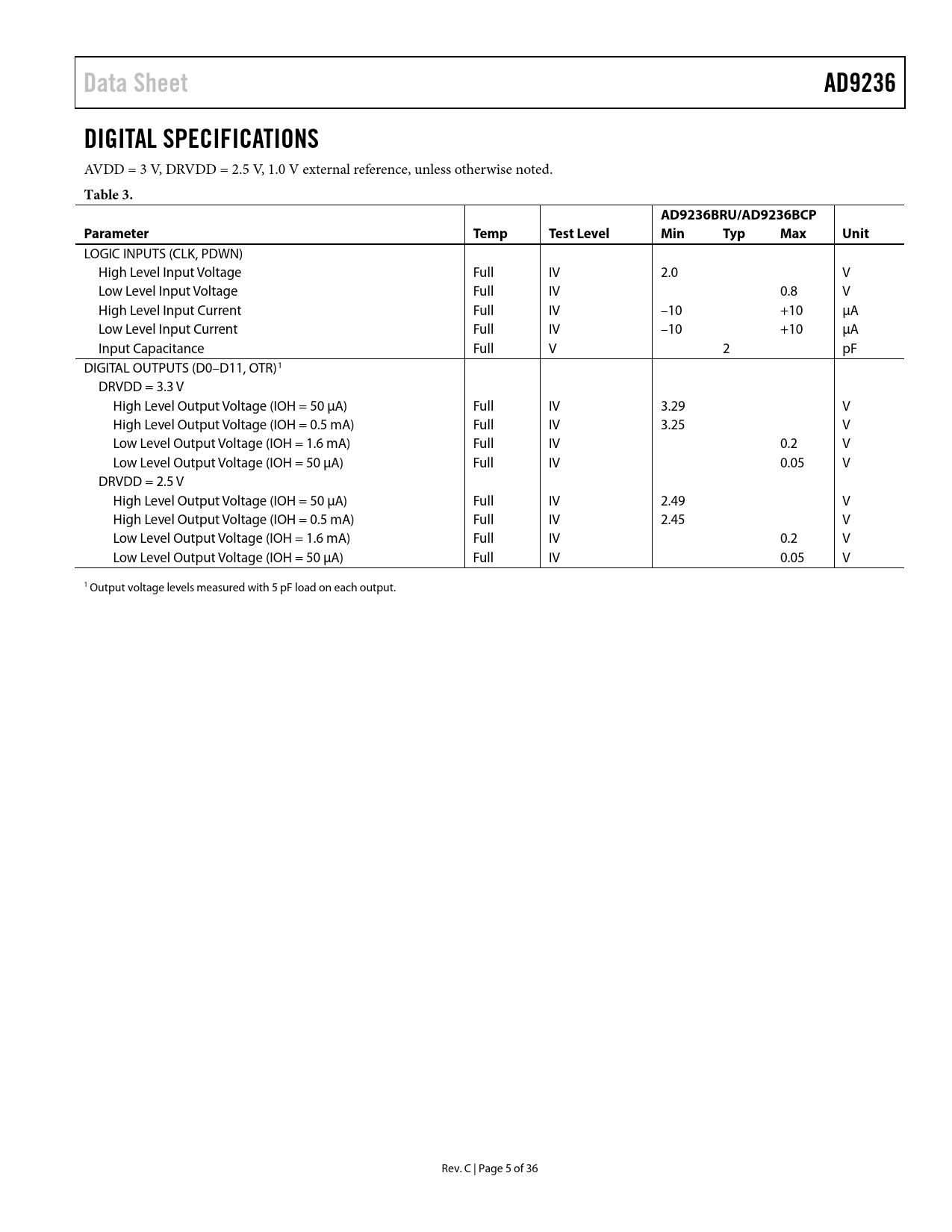

Data Sheet AD9236 DIGITAL SPECIFICATIONS
AVDD = 3 V, DRVDD = 2.5 V, 1.0 V external reference, unless otherwise noted.
Table 3. AD9236BRU/AD9236BCP Parameter Temp Test Level Min Typ Max Unit
LOGIC INPUTS (CLK, PDWN) High Level Input Voltage Full IV 2.0 V Low Level Input Voltage Full IV 0.8 V High Level Input Current Full IV –10 +10 µA Low Level Input Current Full IV –10 +10 µA Input Capacitance Full V 2 pF DIGITAL OUTPUTS (D0–D11, OTR)1 DRVDD = 3.3 V High Level Output Voltage (IOH = 50 µA) Full IV 3.29 V High Level Output Voltage (IOH = 0.5 mA) Full IV 3.25 V Low Level Output Voltage (IOH = 1.6 mA) Full IV 0.2 V Low Level Output Voltage (IOH = 50 µA) Full IV 0.05 V DRVDD = 2.5 V High Level Output Voltage (IOH = 50 µA) Full IV 2.49 V High Level Output Voltage (IOH = 0.5 mA) Full IV 2.45 V Low Level Output Voltage (IOH = 1.6 mA) Full IV 0.2 V Low Level Output Voltage (IOH = 50 µA) Full IV 0.05 V 1 Output voltage levels measured with 5 pF load on each output. Rev. C | Page 5 of 36 Document Outline Features Applications General Description Functional Block Diagram Product Highlights Revision History DC Specifications AC Specifications Digital Specifications Switching Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Terminology Pin Configurations and Function Descriptions Equivalent Circuits Typical Performance Characteristics Theory of Operation Analog Input and Reference Overview Differential Input Configurations Single-Ended Input Configuration Clock Input Considerations Jitter Considerations Power Dissipation and Standby Mode Digital Outputs Timing Voltage Reference Internal Reference Connection External Reference Operation Operational Mode Selection Evaluation Board TSSOP Evaluation Board LFCSP Evaluation Board Outline Dimensions Ordering Guide
