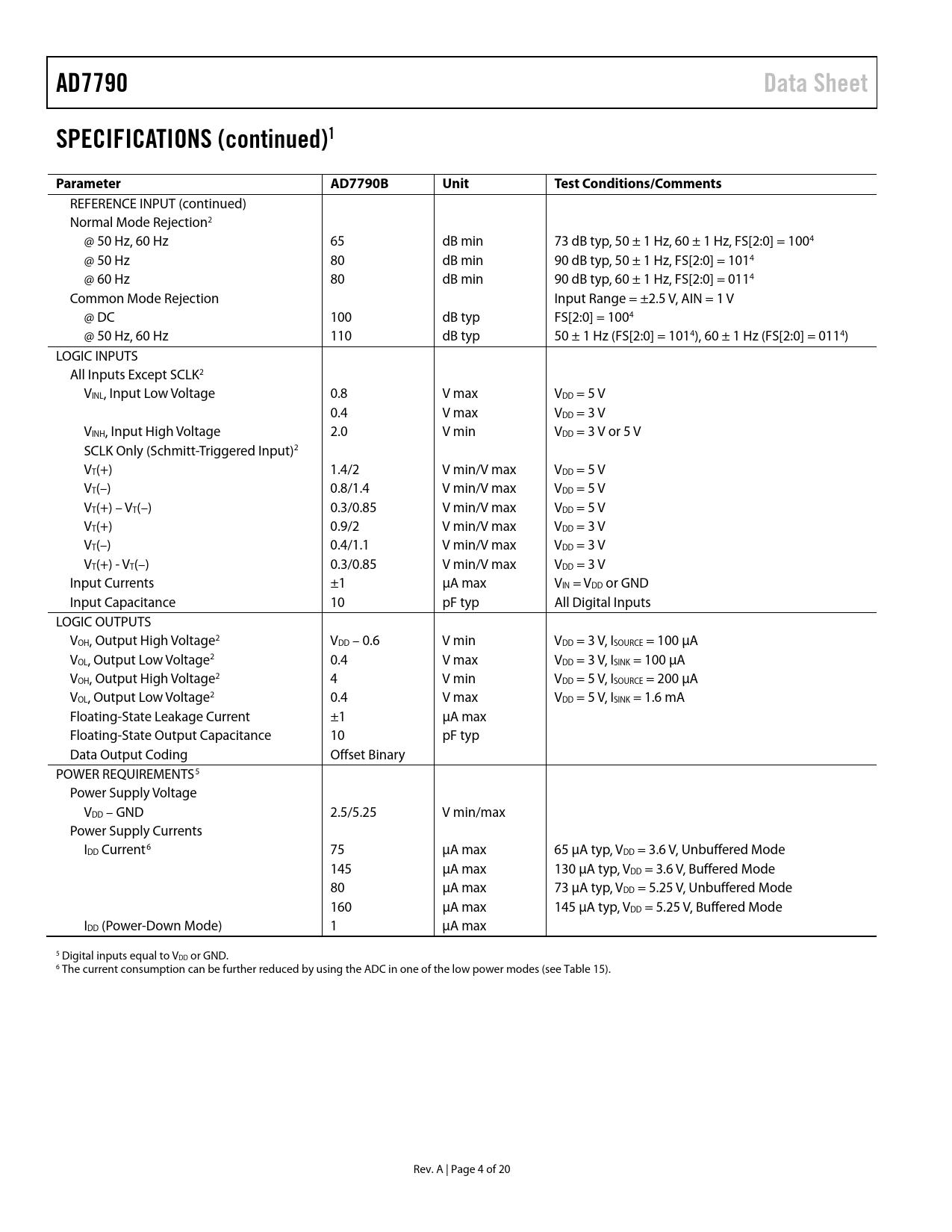

AD7790 Data Sheet SPECIFICATIONS (continued)1 Parameter AD7790B Unit Test Conditions/Comments
REFERENCE INPUT (continued) Normal Mode Rejection2 @ 50 Hz, 60 Hz 65 dB min 73 dB typ, 50 ± 1 Hz, 60 ± 1 Hz, FS[2:0] = 1004 @ 50 Hz 80 dB min 90 dB typ, 50 ± 1 Hz, FS[2:0] = 1014 @ 60 Hz 80 dB min 90 dB typ, 60 ± 1 Hz, FS[2:0] = 0114 Common Mode Rejection Input Range = ±2.5 V, AIN = 1 V @ DC 100 dB typ FS[2:0] = 1004 @ 50 Hz, 60 Hz 110 dB typ 50 ± 1 Hz (FS[2:0] = 1014), 60 ± 1 Hz (FS[2:0] = 0114) LOGIC INPUTS All Inputs Except SCLK2 VINL, Input Low Voltage 0.8 V max VDD = 5 V 0.4 V max VDD = 3 V VINH, Input High Voltage 2.0 V min VDD = 3 V or 5 V SCLK Only (Schmitt-Triggered Input)2 VT(+) 1.4/2 V min/V max VDD = 5 V VT(–) 0.8/1.4 V min/V max VDD = 5 V VT(+) – VT(–) 0.3/0.85 V min/V max VDD = 5 V VT(+) 0.9/2 V min/V max VDD = 3 V VT(–) 0.4/1.1 V min/V max VDD = 3 V VT(+) - VT(–) 0.3/0.85 V min/V max VDD = 3 V Input Currents ±1 µA max VIN = VDD or GND Input Capacitance 10 pF typ All Digital Inputs LOGIC OUTPUTS VOH, Output High Voltage2 VDD – 0.6 V min VDD = 3 V, ISOURCE = 100 µA VOL, Output Low Voltage2 0.4 V max VDD = 3 V, ISINK = 100 µA VOH, Output High Voltage2 4 V min VDD = 5 V, ISOURCE = 200 µA VOL, Output Low Voltage2 0.4 V max VDD = 5 V, ISINK = 1.6 mA Floating-State Leakage Current ±1 µA max Floating-State Output Capacitance 10 pF typ Data Output Coding Offset Binary POWER REQUIREMENTS5 Power Supply Voltage VDD – GND 2.5/5.25 V min/max Power Supply Currents IDD Current6 75 µA max 65 µA typ, VDD = 3.6 V, Unbuffered Mode 145 µA max 130 µA typ, VDD = 3.6 V, Buffered Mode 80 µA max 73 µA typ, VDD = 5.25 V, Unbuffered Mode 160 µA max 145 µA typ, VDD = 5.25 V, Buffered Mode IDD (Power-Down Mode) 1 µA max 5 Digital inputs equal to VDD or GND. 6 The current consumption can be further reduced by using the ADC in one of the low power modes (see Table 15). Rev. A | Page 4 of 20 Document Outline AD7790—Specifications Timing Characteristics Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics On-Chip Registers Communications Register (RS1, RS0 = 0, 0) Status Register (RS1, RS0 = 0, 0; Power-on/Reset = 0x88) Mode Register (RS1, RS0 = 0, 1; Power-on/Reset = 0x02) Filter Register (RS1, RS0 = 1, 0; Power-on/Reset = 0x04) Data Register (RS1, RS0 = 1, 1; Power-on/Reset = 0x0000) ADC Circuit Information Overview Noise Performance Reduced Current Modes Digital Interface Single Conversion Mode Continuous Conversion Mode Continuous Read Mode Circuit Description Analog Input Channel Programmable Gain Amplifier Bipolar Configuration Data Output Coding Reference Input VDD Monitor Grounding and Layout Outline Dimensions Ordering Guide
