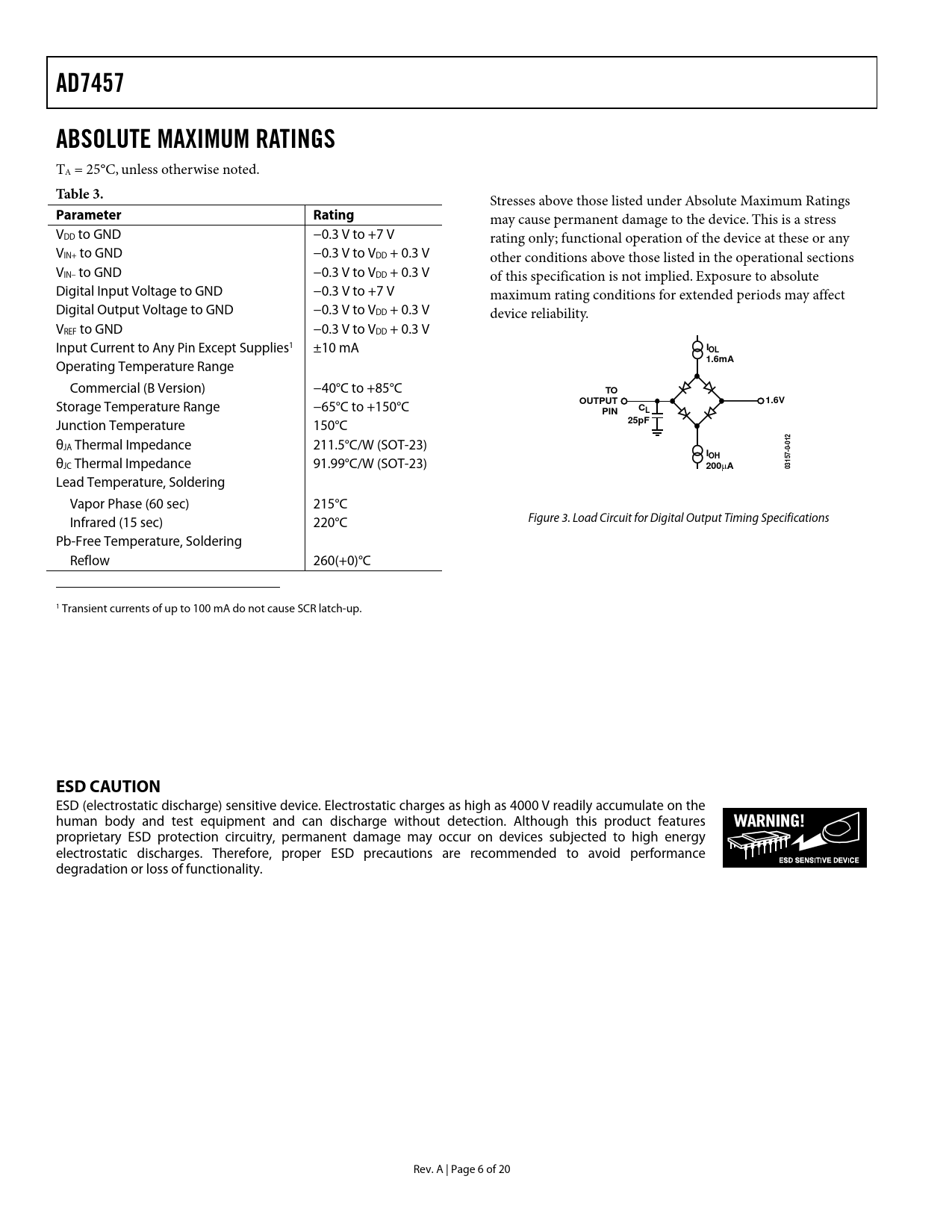

AD7457 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress VDD to GND −0.3 V to +7 V rating only; functional operation of the device at these or any VIN+ to GND −0.3 V to VDD + 0.3 V other conditions above those listed in the operational sections VIN– to GND −0.3 V to VDD + 0.3 V of this specification is not implied. Exposure to absolute Digital Input Voltage to GND −0.3 V to +7 V maximum rating conditions for extended periods may affect Digital Output Voltage to GND −0.3 V to VDD + 0.3 V device reliability. VREF to GND −0.3 V to VDD + 0.3 V Input Current to Any Pin Except Supplies1 ±10 mA
IOL 1.6mA
Operating Temperature Range Commercial (B Version) −40°C to +85°C
TO 1.6V
Storage Temperature Range −65°C to +150°C
OUTPUT PIN CL
Junction Temperature 150°C
25pF
θJA Thermal Impedance 211.5°C/W (SOT-23)
IOH
θJC Thermal Impedance 91.99°C/W (SOT-23)
200
µ
A 03157-0-012
Lead Temperature, Soldering Vapor Phase (60 sec) 215°C Infrared (15 sec) 220°C Figure 3. Load Circuit for Digital Output Timing Specifications Pb-Free Temperature, Soldering Reflow 260(+0)°C 1 Transient currents of up to 100 mA do not cause SCR latch-up.
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. A | Page 6 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION CIRCUIT INFORMATION CONVERTER OPERATION ADC TRANSFER FUNCTION TYPICAL CONNECTION DIAGRAM ANALOG INPUT ANALOG INPUT STRUCTURE DIGITAL INPUTS REFERENCE SECTION SERIAL INTERFACE POWER CONSUMPTION MICROPROCESSOR INTERFACING AD7457 to ADSP-218x APPLICATION HINTS GROUNDING AND LAYOUT OUTLINE DIMENSIONS ORDERING GUIDE
