Datasheet AD7687 (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | 16-Bit, 1.5 LSB INL, 250 kSPS PulSAR™ Differential ADC in MSOP/QFN |
| Seiten / Seite | 27 / 6 — Data Sheet. AD7687. Table 3. Parameter. Test Conditions/Comments. Min. … |
| Revision | E |
| Dateiformat / Größe | PDF / 625 Kb |
| Dokumentensprache | Englisch |
Data Sheet. AD7687. Table 3. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 8

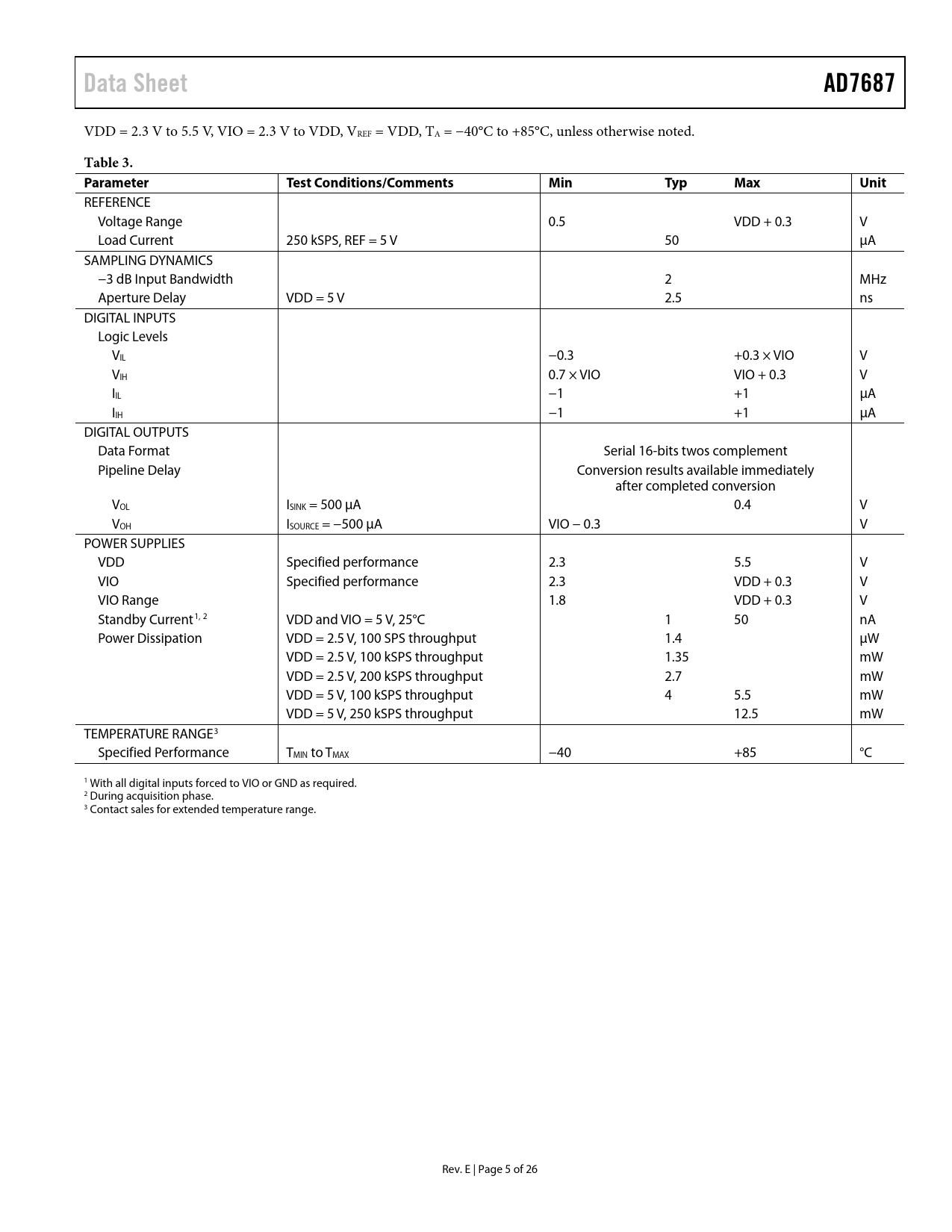

Data Sheet AD7687
VDD = 2.3 V to 5.5 V, VIO = 2.3 V to VDD, VREF = VDD, TA = −40°C to +85°C, unless otherwise noted.
Table 3. Parameter Test Conditions/Comments Min Typ Max Unit
REFERENCE Voltage Range 0.5 VDD + 0.3 V Load Current 250 kSPS, REF = 5 V 50 µA SAMPLING DYNAMICS −3 dB Input Bandwidth 2 MHz Aperture Delay VDD = 5 V 2.5 ns DIGITAL INPUTS Logic Levels VIL −0.3 +0.3 × VIO V VIH 0.7 × VIO VIO + 0.3 V IIL −1 +1 µA IIH −1 +1 µA DIGITAL OUTPUTS Data Format Serial 16-bits twos complement Pipeline Delay Conversion results available immediately after completed conversion VOL ISINK = 500 µA 0.4 V VOH ISOURCE = −500 µA VIO − 0.3 V POWER SUPPLIES VDD Specified performance 2.3 5.5 V VIO Specified performance 2.3 VDD + 0.3 V VIO Range 1.8 VDD + 0.3 V Standby Current1, 2 VDD and VIO = 5 V, 25°C 1 50 nA Power Dissipation VDD = 2.5 V, 100 SPS throughput 1.4 µW VDD = 2.5 V, 100 kSPS throughput 1.35 mW VDD = 2.5 V, 200 kSPS throughput 2.7 mW VDD = 5 V, 100 kSPS throughput 4 5.5 mW VDD = 5 V, 250 kSPS throughput 12.5 mW TEMPERATURE RANGE3 Specified Performance TMIN to TMAX −40 +85 °C 1 With all digital inputs forced to VIO or GND as required. 2 During acquisition phase. 3 Contact sales for extended temperature range. Rev. E | Page 5 of 26 Document Outline FEATURES APPLICATIONS TYPICAL APPLICATION CIRCUIT GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION CIRCUIT INFORMATION CONVERTER OPERATION Transfer Functions TYPICAL CONNECTION DIAGRAM ANALOG INPUT DRIVER AMPLIFIER CHOICE SINGLE-TO-DIFFERENTIAL DRIVER VOLTAGE REFERENCE INPUT POWER SUPPLY SUPPLYING THE ADC FROM THE REFERENCE DIGITAL INTERFACE CS\ MODE, 3-WIRE WITHOUT BUSY INDICATOR CS\ MODE, 3-WIRE WITH BUSY INDICATOR CS\ MODE, 4-WIRE WITHOUT BUSY INDICATOR CS\ MODE, 4-WIRE WITH BUSY INDICATOR CHAIN MODE WITHOUT BUSY INDICATOR CHAIN MODE WITH BUSY INDICATOR APPLICATIONS INFORMATION LAYOUT EVALUATING THE PERFORMANCE OF THE AD7687 OUTLINE DIMENSIONS ORDERING GUIDE
