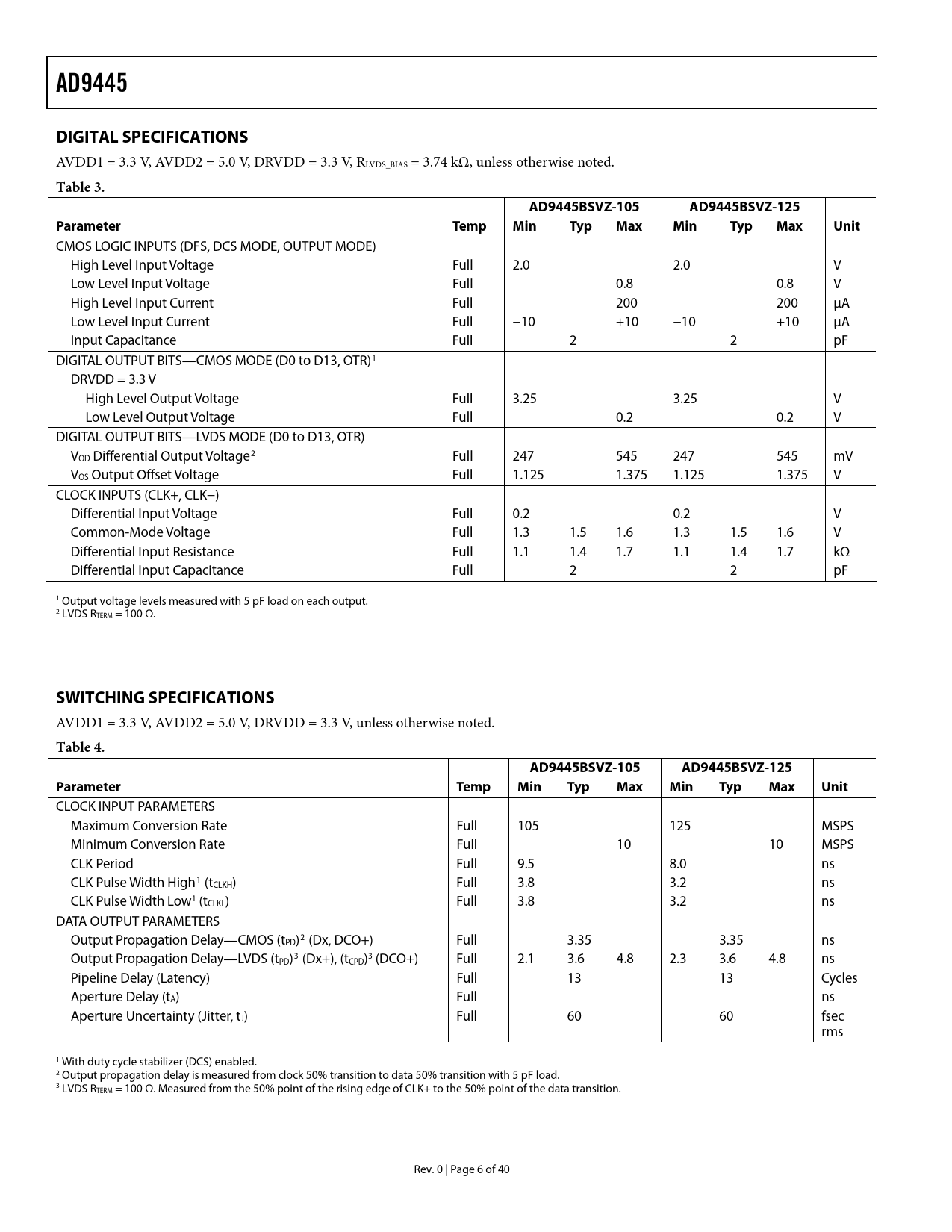

AD9445 DIGITAL SPECIFICATIONS
AVDD1 = 3.3 V, AVDD2 = 5.0 V, DRVDD = 3.3 V, RLVDS_BIAS = 3.74 kΩ, unless otherwise noted.
Table 3. AD9445BSVZ-105 AD9445BSVZ-125 Parameter Temp Min Typ Max Min Typ Max Unit
CMOS LOGIC INPUTS (DFS, DCS MODE, OUTPUT MODE) High Level Input Voltage Full 2.0 2.0 V Low Level Input Voltage Full 0.8 0.8 V High Level Input Current Full 200 200 μA Low Level Input Current Full −10 +10 −10 +10 μA Input Capacitance Full 2 2 pF DIGITAL OUTPUT BITS—CMOS MODE (D0 to D13, OTR)1 DRVDD = 3.3 V High Level Output Voltage Full 3.25 3.25 V Low Level Output Voltage Full 0.2 0.2 V DIGITAL OUTPUT BITS—LVDS MODE (D0 to D13, OTR) VOD Differential Output Voltage2 Full 247 545 247 545 mV VOS Output Offset Voltage Full 1.125 1.375 1.125 1.375 V CLOCK INPUTS (CLK+, CLK−) Differential Input Voltage Full 0.2 0.2 V Common-Mode Voltage Full 1.3 1.5 1.6 1.3 1.5 1.6 V Differential Input Resistance Full 1.1 1.4 1.7 1.1 1.4 1.7 kΩ Differential Input Capacitance Full 2 2 pF 1 Output voltage levels measured with 5 pF load on each output. 2 LVDS RTERM = 100 Ω.
SWITCHING SPECIFICATIONS
AVDD1 = 3.3 V, AVDD2 = 5.0 V, DRVDD = 3.3 V, unless otherwise noted.
Table 4. AD9445BSVZ-105 AD9445BSVZ-125 Parameter Temp Min Typ Max Min Typ Max Unit
CLOCK INPUT PARAMETERS Maximum Conversion Rate Full 105 125 MSPS Minimum Conversion Rate Full 10 10 MSPS CLK Period Full 9.5 8.0 ns CLK Pulse Width High1 (tCLKH) Full 3.8 3.2 ns CLK Pulse Width Low1 (tCLKL) Full 3.8 3.2 ns DATA OUTPUT PARAMETERS Output Propagation Delay—CMOS (tPD)2 (Dx, DCO+) Full 3.35 3.35 ns Output Propagation Delay—LVDS (tPD)3 (Dx+), (tCPD)3 (DCO+) Full 2.1 3.6 4.8 2.3 3.6 4.8 ns Pipeline Delay (Latency) Full 13 13 Cycles Aperture Delay (tA) Full ns Aperture Uncertainty (Jitter, tJ) Full 60 60 fsec rms 1 With duty cycle stabilizer (DCS) enabled. 2 Output propagation delay is measured from clock 50% transition to data 50% transition with 5 pF load. 3 LVDS RTERM = 100 Ω. Measured from the 50% point of the rising edge of CLK+ to the 50% point of the data transition. Rev. 0 | Page 6 of 40 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DC SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TERMINOLOGY PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS EQUIVALENT CIRCUITS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION ANALOG INPUT AND REFERENCE OVERVIEW Internal Reference Connection Internal Reference Trim External Reference Operation Analog Inputs High IF Applications CLOCK INPUT CONSIDERATIONS Jitter Considerations POWER CONSIDERATIONS DIGITAL OUTPUTS LVDS Mode CMOS Mode TIMING OPERATIONAL MODE SELECTION Data Format Select Output Mode Select Duty Cycle Stabilizer RF ENABLE EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
