AD9233. SPECIFICATIONS DC SPECIFICATIONS. Table 1. AD9233BCPZ-80. AD9233BCPZ-105. AD9233BCPZ-125. Parameter. Temp
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 11

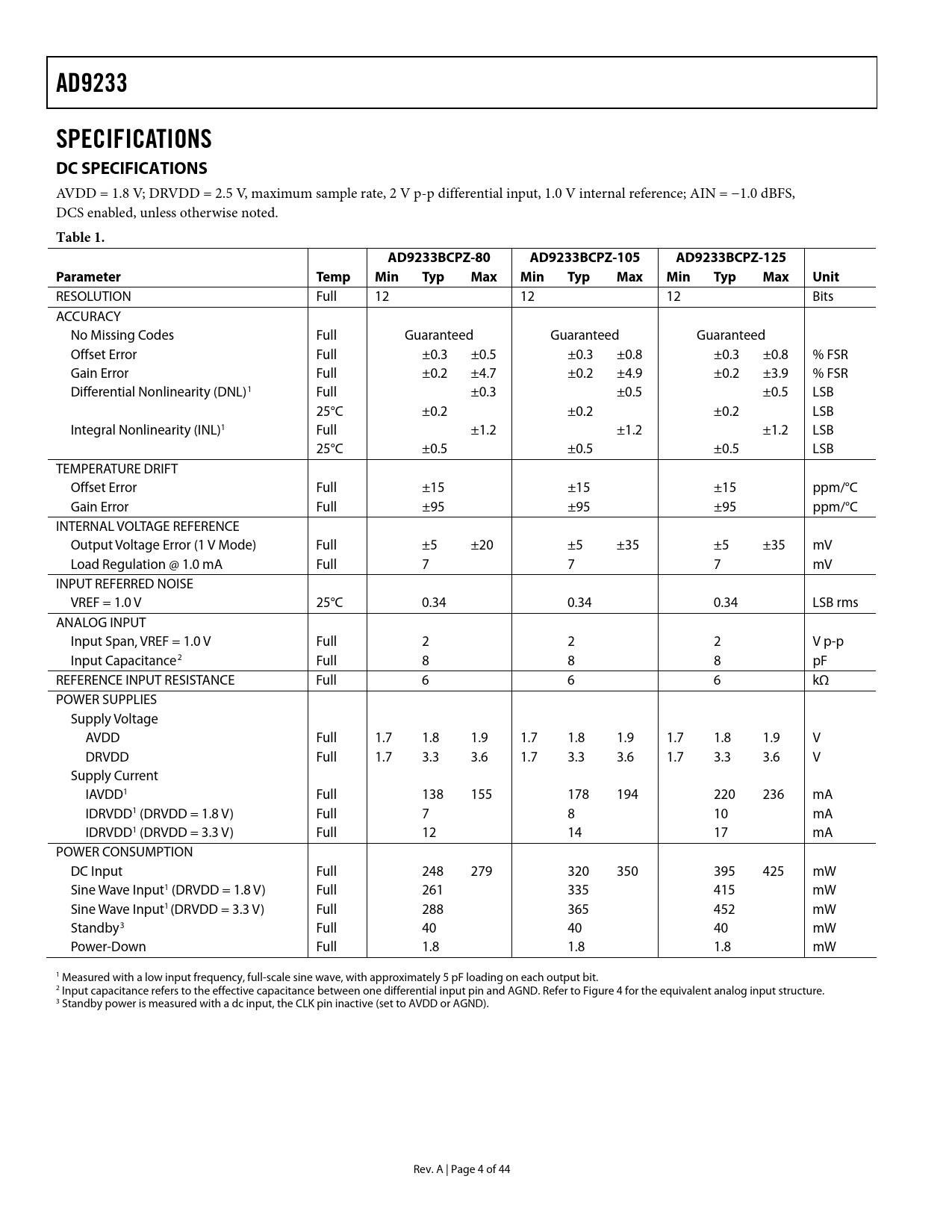

AD9233 SPECIFICATIONS DC SPECIFICATIONS
AVDD = 1.8 V; DRVDD = 2.5 V, maximum sample rate, 2 V p-p differential input, 1.0 V internal reference; AIN = −1.0 dBFS, DCS enabled, unless otherwise noted.
Table 1. AD9233BCPZ-80 AD9233BCPZ-105 AD9233BCPZ-125 Parameter Temp Min Typ Max Min Typ Max Min Typ Max Unit
RESOLUTION Full 12 12 12 Bits ACCURACY No Missing Codes Full Guaranteed Guaranteed Guaranteed Offset Error Full ±0.3 ±0.5 ±0.3 ±0.8 ±0.3 ±0.8 % FSR Gain Error Full ±0.2 ±4.7 ±0.2 ±4.9 ±0.2 ±3.9 % FSR Differential Nonlinearity (DNL)1 Full ±0.3 ±0.5 ±0.5 LSB 25°C ±0.2 ±0.2 ±0.2 LSB Integral Nonlinearity (INL)1 Full ±1.2 ±1.2 ±1.2 LSB 25°C ±0.5 ±0.5 ±0.5 LSB TEMPERATURE DRIFT Offset Error Full ±15 ±15 ±15 ppm/°C Gain Error Full ±95 ±95 ±95 ppm/°C INTERNAL VOLTAGE REFERENCE Output Voltage Error (1 V Mode) Full ±5 ±20 ±5 ±35 ±5 ±35 mV Load Regulation @ 1.0 mA Full 7 7 7 mV INPUT REFERRED NOISE VREF = 1.0 V 25°C 0.34 0.34 0.34 LSB rms ANALOG INPUT Input Span, VREF = 1.0 V Full 2 2 2 V p-p Input Capacitance2 Full 8 8 8 pF REFERENCE INPUT RESISTANCE Full 6 6 6 kΩ POWER SUPPLIES Supply Voltage AVDD Full 1.7 1.8 1.9 1.7 1.8 1.9 1.7 1.8 1.9 V DRVDD Full 1.7 3.3 3.6 1.7 3.3 3.6 1.7 3.3 3.6 V Supply Current IAVDD1 Full 138 155 178 194 220 236 mA IDRVDD1 (DRVDD = 1.8 V) Full 7 8 10 mA IDRVDD1 (DRVDD = 3.3 V) Full 12 14 17 mA POWER CONSUMPTION DC Input Full 248 279 320 350 395 425 mW Sine Wave Input1 (DRVDD = 1.8 V) Full 261 335 415 mW Sine Wave Input1 (DRVDD = 3.3 V) Full 288 365 452 mW Standby3 Full 40 40 40 mW Power-Down Full 1.8 1.8 1.8 mW 1 Measured with a low input frequency, full-scale sine wave, with approximately 5 pF loading on each output bit. 2 Input capacitance refers to the effective capacitance between one differential input pin and AGND. Refer to Figure 4 for the equivalent analog input structure. 3 Standby power is measured with a dc input, the CLK pin inactive (set to AVDD or AGND). Rev. A | Page 4 of 44 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DC SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS TIMING DIAGRAM ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS EQUIVALENT CIRCUITS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION ANALOG INPUT CONSIDERATIONS Input Common Mode Differential Input Configurations Single-Ended Input Configuration VOLTAGE REFERENCE Internal Reference Connection External Reference Operation CLOCK INPUT CONSIDERATIONS Clock Input Options Clock Duty Cycle JITTER CONSIDERATIONS POWER DISSIPATION AND STANDBY MODE Power-Down Mode Standby Mode DIGITAL OUTPUTS Out-of-Range (OR) Condition Digital Output Enable Function (OEB) TIMING Data Clock Output (DCO) SERIAL PORT INTERFACE (SPI) CONFIGURATION USING THE SPI HARDWARE INTERFACE CONFIGURATION WITHOUT THE SPI MEMORY MAP READING THE MEMORY MAP TABLE Open Locations Default Values Logic Levels SPI-Accessible Features LAYOUT CONSIDERATIONS POWER AND GROUND RECOMMENDATIONS Exposed Paddle Thermal Heat Slug Recommendations CML RBIAS REFERENCE DECOUPLING EVALUATION BOARD POWER SUPPLIES INPUT SIGNALS OUTPUT SIGNALS DEFAULT OPERATION AND JUMPER SELECTION SETTINGS POWER VIN VREF RBIAS CLOCK PDWN CSB SCLK/DFS SDIO/DCS ALTERNATIVE CLOCK CONFIGURATIONS ALTERNATIVE ANALOG INPUT DRIVE CONFIGURATION SCHEMATICS EVALUATION BOARD LAYOUTS BILL OF MATERIALS (BOM) OUTLINE DIMENSIONS ORDERING GUIDE
AD9233 SPECIFICATIONS DC SPECIFICATIONS
AVDD = 1.8 V; DRVDD = 2.5 V, maximum sample rate, 2 V p-p differential input, 1.0 V internal reference; AIN = −1.0 dBFS, DCS enabled, unless otherwise noted.
Table 1. AD9233BCPZ-80 AD9233BCPZ-105 AD9233BCPZ-125 Parameter Temp Min Typ Max Min Typ Max Min Typ Max Unit
RESOLUTION Full 12 12 12 Bits ACCURACY No Missing Codes Full Guaranteed Guaranteed Guaranteed Offset Error Full ±0.3 ±0.5 ±0.3 ±0.8 ±0.3 ±0.8 % FSR Gain Error Full ±0.2 ±4.7 ±0.2 ±4.9 ±0.2 ±3.9 % FSR Differential Nonlinearity (DNL)1 Full ±0.3 ±0.5 ±0.5 LSB 25°C ±0.2 ±0.2 ±0.2 LSB Integral Nonlinearity (INL)1 Full ±1.2 ±1.2 ±1.2 LSB 25°C ±0.5 ±0.5 ±0.5 LSB TEMPERATURE DRIFT Offset Error Full ±15 ±15 ±15 ppm/°C Gain Error Full ±95 ±95 ±95 ppm/°C INTERNAL VOLTAGE REFERENCE Output Voltage Error (1 V Mode) Full ±5 ±20 ±5 ±35 ±5 ±35 mV Load Regulation @ 1.0 mA Full 7 7 7 mV INPUT REFERRED NOISE VREF = 1.0 V 25°C 0.34 0.34 0.34 LSB rms ANALOG INPUT Input Span, VREF = 1.0 V Full 2 2 2 V p-p Input Capacitance2 Full 8 8 8 pF REFERENCE INPUT RESISTANCE Full 6 6 6 kΩ POWER SUPPLIES Supply Voltage AVDD Full 1.7 1.8 1.9 1.7 1.8 1.9 1.7 1.8 1.9 V DRVDD Full 1.7 3.3 3.6 1.7 3.3 3.6 1.7 3.3 3.6 V Supply Current IAVDD1 Full 138 155 178 194 220 236 mA IDRVDD1 (DRVDD = 1.8 V) Full 7 8 10 mA IDRVDD1 (DRVDD = 3.3 V) Full 12 14 17 mA POWER CONSUMPTION DC Input Full 248 279 320 350 395 425 mW Sine Wave Input1 (DRVDD = 1.8 V) Full 261 335 415 mW Sine Wave Input1 (DRVDD = 3.3 V) Full 288 365 452 mW Standby3 Full 40 40 40 mW Power-Down Full 1.8 1.8 1.8 mW 1 Measured with a low input frequency, full-scale sine wave, with approximately 5 pF loading on each output bit. 2 Input capacitance refers to the effective capacitance between one differential input pin and AGND. Refer to Figure 4 for the equivalent analog input structure. 3 Standby power is measured with a dc input, the CLK pin inactive (set to AVDD or AGND). Rev. A | Page 4 of 44 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DC SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS TIMING DIAGRAM ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS EQUIVALENT CIRCUITS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION ANALOG INPUT CONSIDERATIONS Input Common Mode Differential Input Configurations Single-Ended Input Configuration VOLTAGE REFERENCE Internal Reference Connection External Reference Operation CLOCK INPUT CONSIDERATIONS Clock Input Options Clock Duty Cycle JITTER CONSIDERATIONS POWER DISSIPATION AND STANDBY MODE Power-Down Mode Standby Mode DIGITAL OUTPUTS Out-of-Range (OR) Condition Digital Output Enable Function (OEB) TIMING Data Clock Output (DCO) SERIAL PORT INTERFACE (SPI) CONFIGURATION USING THE SPI HARDWARE INTERFACE CONFIGURATION WITHOUT THE SPI MEMORY MAP READING THE MEMORY MAP TABLE Open Locations Default Values Logic Levels SPI-Accessible Features LAYOUT CONSIDERATIONS POWER AND GROUND RECOMMENDATIONS Exposed Paddle Thermal Heat Slug Recommendations CML RBIAS REFERENCE DECOUPLING EVALUATION BOARD POWER SUPPLIES INPUT SIGNALS OUTPUT SIGNALS DEFAULT OPERATION AND JUMPER SELECTION SETTINGS POWER VIN VREF RBIAS CLOCK PDWN CSB SCLK/DFS SDIO/DCS ALTERNATIVE CLOCK CONFIGURATIONS ALTERNATIVE ANALOG INPUT DRIVE CONFIGURATION SCHEMATICS EVALUATION BOARD LAYOUTS BILL OF MATERIALS (BOM) OUTLINE DIMENSIONS ORDERING GUIDE
