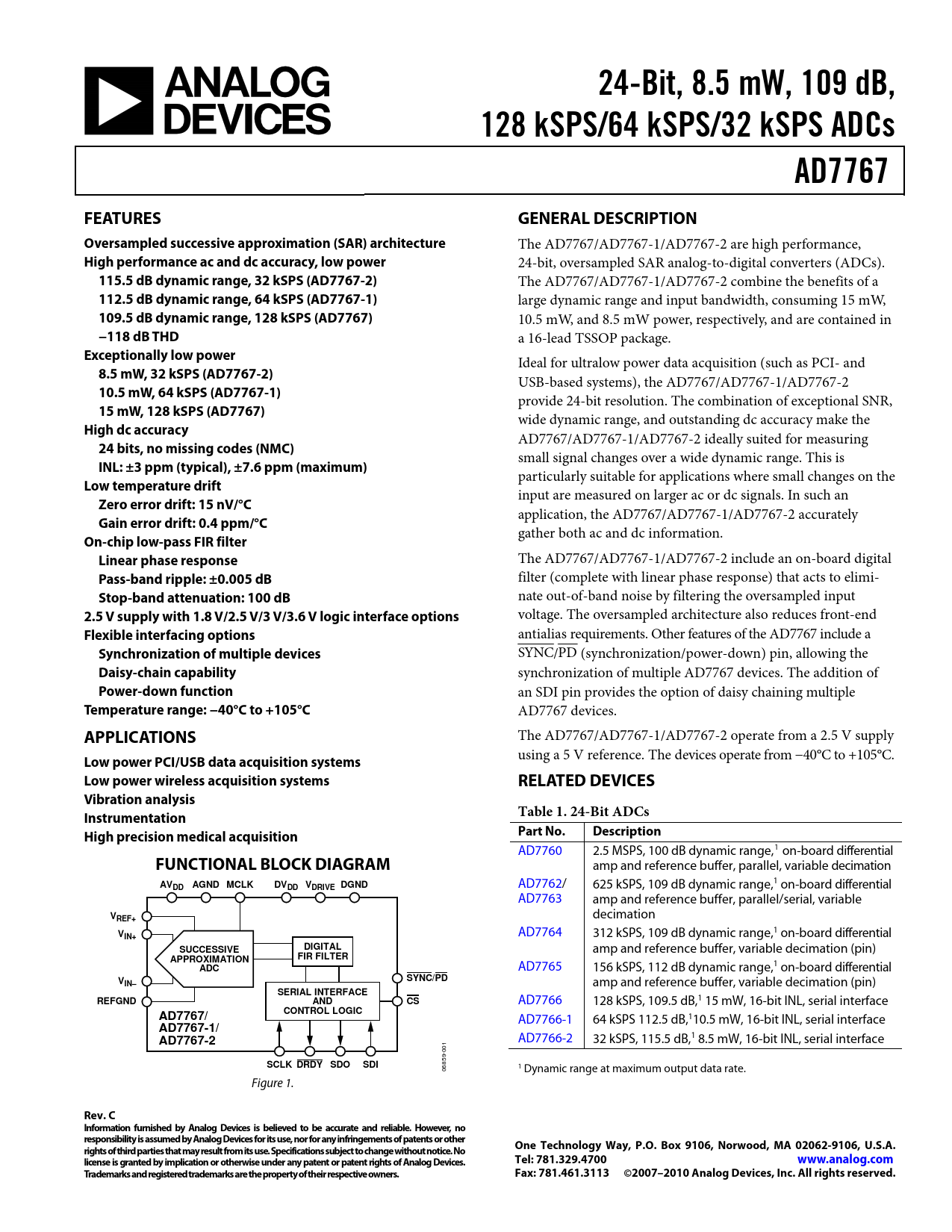

24-Bit, 8.5 mW, 109 dB, 128 kSPS/64 kSPS/32 kSPS ADCs AD7767 FEATURES GENERAL DESCRIPTION Oversampled successive approximation (SAR) architecture
The AD7767/AD7767-1/AD7767-2 are high performance,
High performance ac and dc accuracy, low power
24-bit, oversampled SAR analog-to-digital converters (ADCs).
115.5 dB dynamic range, 32 kSPS (AD7767-2)
The AD7767/AD7767-1/AD7767-2 combine the benefits of a
112.5 dB dynamic range, 64 kSPS (AD7767-1)
large dynamic range and input bandwidth, consuming 15 mW,
109.5 dB dynamic range, 128 kSPS (AD7767)
10.5 mW, and 8.5 mW power, respectively, and are contained in
−118 dB THD
a 16-lead TSSOP package.
Exceptionally low power
Ideal for ultralow power data acquisition (such as PCI- and
8.5 mW, 32 kSPS (AD7767-2)
USB-based systems), the AD7767/AD7767-1/AD7767-2
10.5 mW, 64 kSPS (AD7767-1)
provide 24-bit resolution. The combination of exceptional SNR,
15 mW, 128 kSPS (AD7767)
wide dynamic range, and outstanding dc accuracy make the
High dc accuracy
AD7767/AD7767-1/AD7767-2 ideally suited for measuring
24 bits, no missing codes (NMC)
small signal changes over a wide dynamic range. This is
INL: ±3 ppm (typical), ±7.6 ppm (maximum)
particularly suitable for applications where small changes on the
Low temperature drift
input are measured on larger ac or dc signals. In such an
Zero error drift: 15 nV/°C
application, the AD7767/AD7767-1/AD7767-2 accurately
Gain error drift: 0.4 ppm/°C
gather both ac and dc information.
On-chip low-pass FIR filter Linear phase response
The AD7767/AD7767-1/AD7767-2 include an on-board digital
Pass-band ripple: ±0.005 dB
filter (complete with linear phase response) that acts to elimi-
Stop-band attenuation: 100 dB
nate out-of-band noise by filtering the oversampled input
2.5 V supply with 1.8 V/2.5 V/3 V/3.6 V logic interface options
voltage. The oversampled architecture also reduces front-end
Flexible interfacing options
antialias requirements. Other features of the AD7767 include a
Synchronization of multiple devices
SYNC/PD (synchronization/power-down) pin, allowing the
Daisy-chain capability
synchronization of multiple AD7767 devices. The addition of
Power-down function
an SDI pin provides the option of daisy chaining multiple
Temperature range: −40°C to +105°C
AD7767 devices.
APPLICATIONS
The AD7767/AD7767-1/AD7767-2 operate from a 2.5 V supply using a 5 V reference. The devices operate from −40°C to +105°C.
Low power PCI/USB data acquisition systems Low power wireless acquisition systems RELATED DEVICES Vibration analysis Table 1. 24-Bit ADCs Instrumentation High precision medical acquisition Part No. Description
AD7760 2.5 MSPS, 100 dB dynamic range,1 on-board differential
FUNCTIONAL BLOCK DIAGRAM
amp and reference buffer, parallel, variable decimation
AVDD AGND MCLK DVDD VDRIVE DGND
AD7762/ 625 kSPS, 109 dB dynamic range,1 on-board differential AD7763 amp and reference buffer, parallel/serial, variable
V
decimation
REF+ V
AD7764
IN+
312 kSPS, 109 dB dynamic range,1 on-board differential
SUCCESSIVE DIGITAL
amp and reference buffer, variable decimation (pin)
APPROXIMATION FIR FILTER ADC
AD7765 156 kSPS, 112 dB dynamic range,1 on-board differential
V SYNC/PD IN–
amp and reference buffer, variable decimation (pin)
SERIAL INTERFACE REFGND AND CS
AD7766 128 kSPS, 109.5 dB,1 15 mW, 16-bit INL, serial interface
CONTROL LOGIC AD7767/
AD7766-1 64 kSPS 112.5 dB,110.5 mW, 16-bit INL, serial interface
AD7767-1/ AD7767-2
AD7766-2 32 kSPS, 115.5 dB,1 8.5 mW, 16-bit INL, serial interface 1 00 9-
SCLK DRDY SDO SDI
85 1 06 Dynamic range at maximum output data rate. Figure 1.
