| Hersteller | Analog Devices |
| Beschreibung | 16-Bit, 8-Channel, 500 kSPS PulSAR ADC |
| Seiten / Seite | 32 / 7 — Data Sheet. AD7699. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. Rating. … |
| Revision | G |
| Dateiformat / Größe | PDF / 683 Kb |
| Dokumentensprache | Englisch |

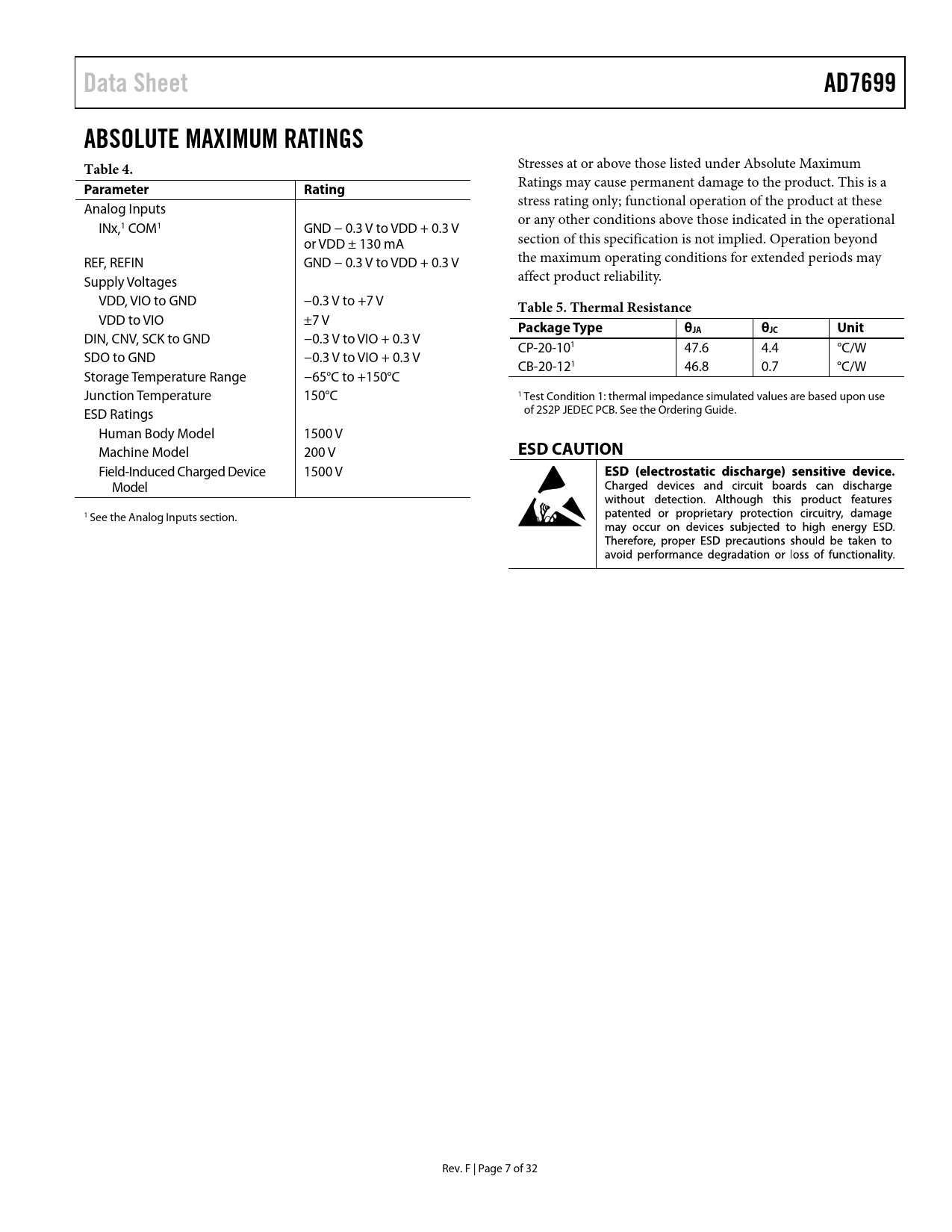

Data Sheet. AD7699. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. Rating. Table 5. Thermal Resistance. Package Type. θJA. θJC. Unit
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 18 link to page 31
Data Sheet AD7699 ABSOLUTE MAXIMUM RATINGS Table 4.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Analog Inputs stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational INx,1 COM1 GND − 0.3 V to VDD + 0.3 V or VDD ± 130 mA section of this specification is not implied. Operation beyond REF, REFIN GND − 0.3 V to VDD + 0.3 V the maximum operating conditions for extended periods may Supply Voltages affect product reliability. VDD, VIO to GND −0.3 V to +7 V
Table 5. Thermal Resistance
VDD to VIO ±7 V
Package Type θJA θJC Unit
DIN, CNV, SCK to GND −0.3 V to VIO + 0.3 V CP-20-101 47.6 4.4 °C/W SDO to GND −0.3 V to VIO + 0.3 V CB-20-121 46.8 0.7 °C/W Storage Temperature Range −65°C to +150°C Junction Temperature 150°C 1 Test Condition 1: thermal impedance simulated values are based upon use ESD Ratings of 2S2P JEDEC PCB. See the Ordering Guide. Human Body Model 1500 V Machine Model 200 V
ESD CAUTION
Field-Induced Charged Device 1500 V Model 1 See the Analog Inputs section. Rev. F | Page 7 of 32 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION OVERVIEW CONVERTER OPERATION TRANSFER FUNCTIONS TYPICAL CONNECTION DIAGRAMS Unipolar or Bipolar Bipolar Single Supply ANALOG INPUTS Input Structure Selectable Low-Pass Filter Input Configurations Sequencer Examples Source Resistance DRIVER AMPLIFIER CHOICE VOLTAGE REFERENCE OUTPUT/INPUT Internal Reference/Temperature Sensor External Reference and Internal Buffer External Reference Reference Decoupling POWER SUPPLY SUPPLYING THE ADC FROM THE REFERENCE DIGITAL INTERFACE READING/WRITING DURING CONVERSION, FAST HOSTS READING/WRITING DURING ACQUISITION, ANY SPEED HOSTS READING/WRITING SPANNING CONVERSION, ANY SPEED HOST CONFIGURATION REGISTER, CFG GENERAL TIMING WITHOUT A BUSY INDICATOR GENERAL TIMING WITH A BUSY INDICATOR READ/WRITE SPANNING CONVERSION WITHOUT A BUSY INDICATOR READ/WRITE SPANNING CONVERSION WITH A BUSY INDICATOR CHANNEL SEQUENCER Examples APPLICATION HINTS LAYOUT EVALUATING AD7699 PERFORMANCE OUTLINE DIMENSIONS ORDERING GUIDE
