Datasheet AD7986 (Analog Devices) - 7
| Hersteller | Analog Devices |
| Beschreibung | 18-Bit, 2 MSPS PulSAR 15 mW ADC in QFN |
| Seiten / Seite | 29 / 7 — AD7986. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 5. Parameter. Rating. … |
| Revision | D |
| Dateiformat / Größe | PDF / 629 Kb |
| Dokumentensprache | Englisch |

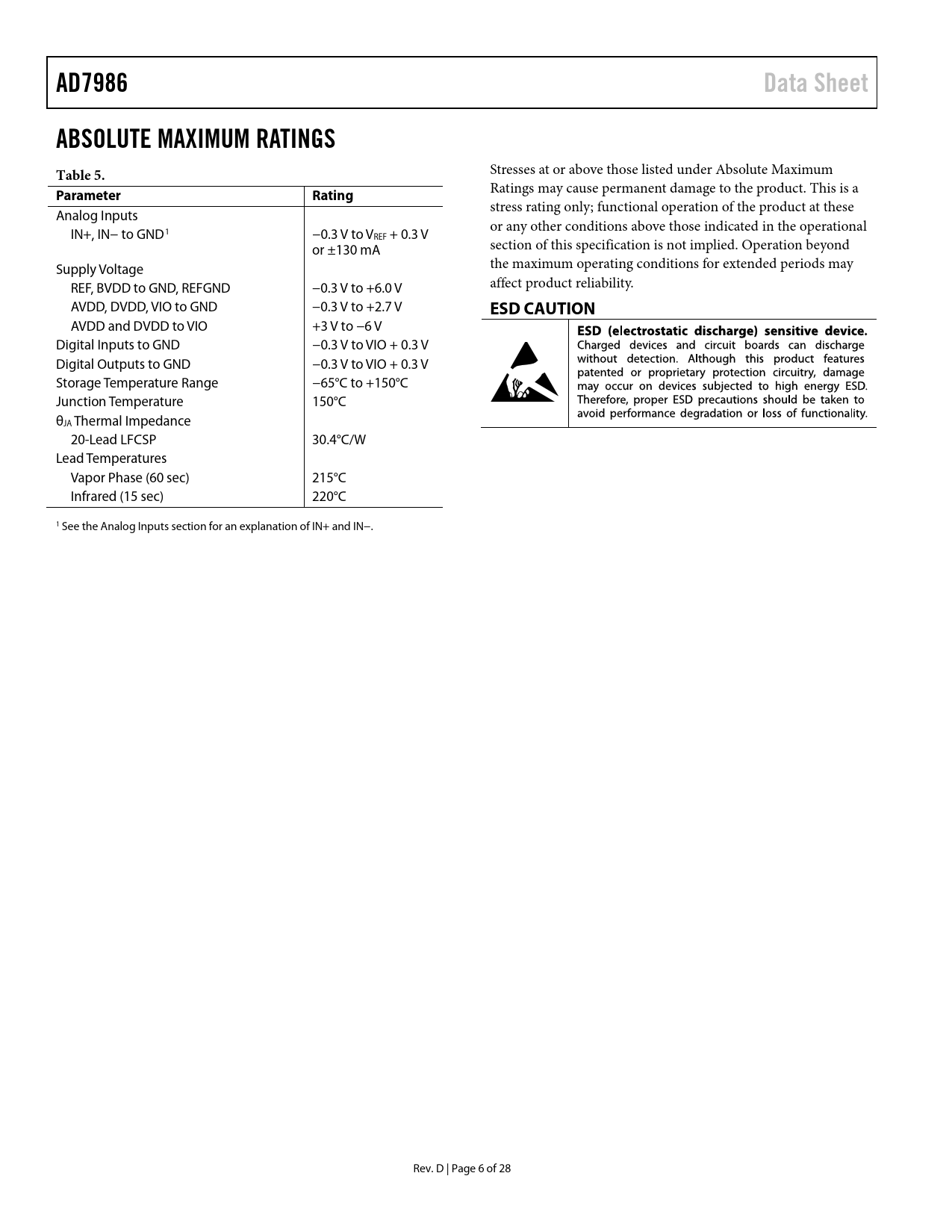

AD7986. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 5. Parameter. Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 16
AD7986 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 5.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Analog Inputs or any other conditions above those indicated in the operational IN+, IN− to GND1 −0.3 V to VREF + 0.3 V or ±130 mA section of this specification is not implied. Operation beyond Supply Voltage the maximum operating conditions for extended periods may REF, BVDD to GND, REFGND −0.3 V to +6.0 V affect product reliability. AVDD, DVDD, VIO to GND −0.3 V to +2.7 V
ESD CAUTION
AVDD and DVDD to VIO +3 V to −6 V Digital Inputs to GND −0.3 V to VIO + 0.3 V Digital Outputs to GND −0.3 V to VIO + 0.3 V Storage Temperature Range −65°C to +150°C Junction Temperature 150°C θ JA Thermal Impedance 20-Lead LFCSP 30.4°C/W Lead Temperatures Vapor Phase (60 sec) 215°C Infrared (15 sec) 220°C 1 See the Analog Inputs section for an explanation of IN+ and IN−. Rev. D | Page 6 of 28 Document Outline FEATURES APPLICATIONS TYPICAL APPLICATION CIRCUIT GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION CIRCUIT INFORMATION CONVERTER OPERATION CONVERSION MODES OF OPERATION Transfer Functions TYPICAL CONNECTION DIAGRAM ANALOG INPUTS DRIVER AMPLIFIER CHOICE VOLTAGE REFERENCE INPUT Internal Reference, REF = 4.096V (PDREF = Low) External 1.2 V Reference and Internal Buffer (PDREF = High) External Reference (PDREF = High, REFIN = Low) Reference Decoupling POWER SUPPLY DIGITAL INTERFACE DATA READING OPTIONS Reading During Conversion, Fast Hosts (Turbo or Normal Mode) Split-Reading, Any Speed Host (Turbo or Normal Mode) Reading During Acquisition, Any Speed Hosts (Turbo or Normal Mode) /CS MODE, 3-WIRE WITHOUT BUSY INDICATOR /CS MODE, 3-WIRE WITH BUSY INDICATOR /CS MODE, 4-WIRE WITHOUT BUSY INDICATOR /CS MODE, 4-WIRE WITH BUSY INDICATOR CHAIN MODE WITHOUT BUSY INDICATOR CHAIN MODE WITH BUSY INDICATOR APPLICATION HINTS LAYOUT EVALUATING THE PERFORMANCE OF THE AD7986 OUTLINE DIMENSIONS ORDERING GUIDE
