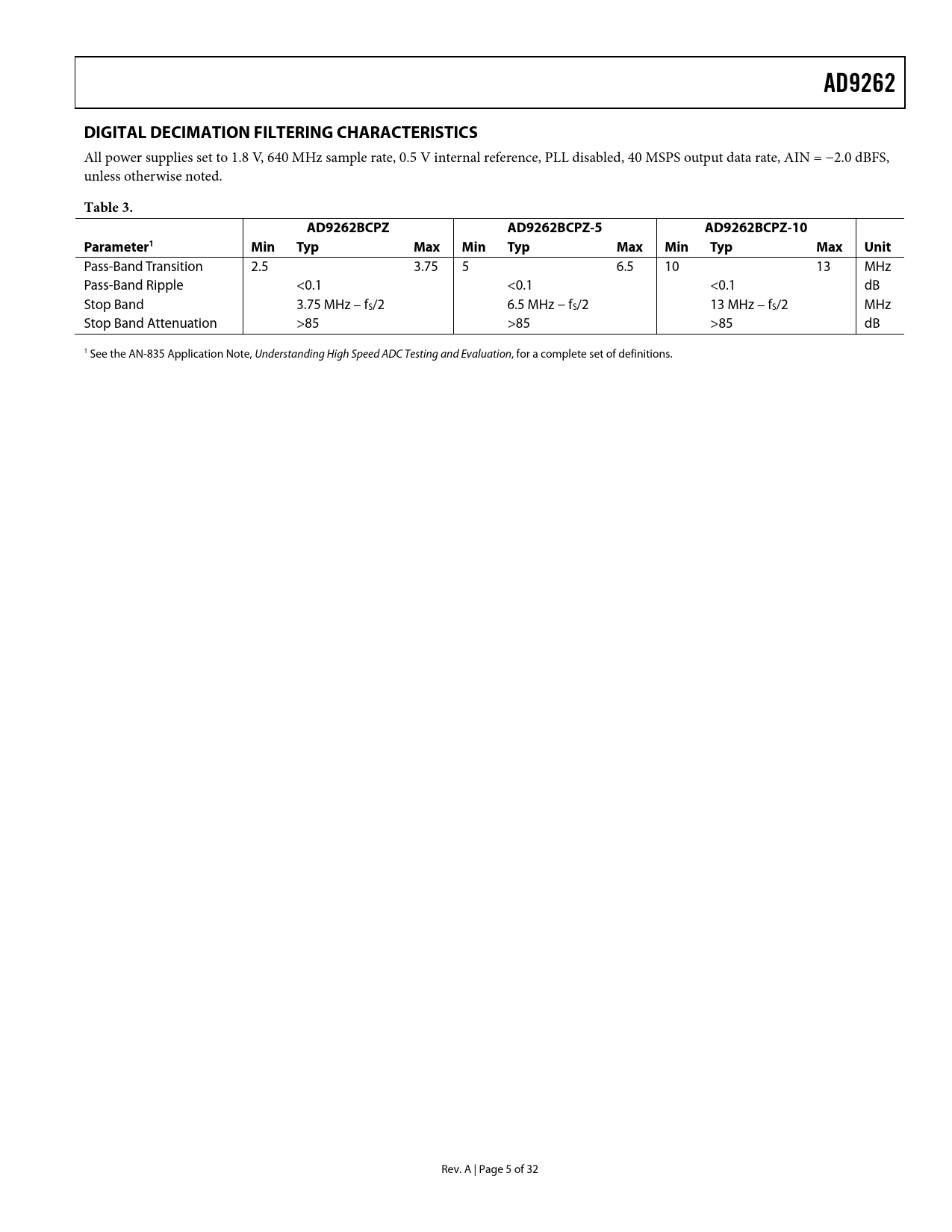

AD9262 DIGITAL DECIMATION FILTERING CHARACTERISTICS
All power supplies set to 1.8 V, 640 MHz sample rate, 0.5 V internal reference, PLL disabled, 40 MSPS output data rate, AIN = −2.0 dBFS, unless otherwise noted.
Table 3. AD9262BCPZ AD9262BCPZ-5 AD9262BCPZ-10 Parameter1 Min Typ Max Min Typ Max Min Typ Max Unit
Pass-Band Transition 2.5 3.75 5 6.5 10 13 MHz Pass-Band Ripple <0.1 <0.1 <0.1 dB Stop Band 3.75 MHz − fS/2 6.5 MHz − fS/2 13 MHz − fS/2 MHz Stop Band Attenuation >85 >85 >85 dB 1 See the AN-835 Application Note, Understanding High Speed ADC Testing and Evaluation, for a complete set of definitions. Rev. A | Page 5 of 32 Document Outline Features Applications General Description Functional Block Diagram Product Highlights Revision History Specifications DC Specifications AC Specifications Digital Decimation Filtering Characteristics Digital Specifications Switching Specifications Timing Diagram Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics AD9262BCPZ AD9262BCPZ-5 AD9262BCPZ-10 Equivalent Circuits Theory of Operation Analog Input Considerations Input Common Mode Differential Input Configurations Voltage Reference Internal Reference Connection External Reference Operation Clock Input Considerations Direct Clocking Internal PLL Clock Distribution PLL Autoband Select Jitter Considerations Power Dissipation and Standby Mode Digital Engine Bandwidth Selection Decimation Filters Sample Rate Converter Cascaded Filter Responses DC and Quadrature Error Correction (QEC) LO Leakage (DC) Correction QEC and DC Correction Range Digital Outputs Digital Output Format Interleaved Outputs Overrange (OR) Condition Timing Serial Port Interface (SPI) Configuration Using the SPI Hardware Interface Applications Information Filtering Requirement Memory Map Memory Map Definitions Outline Dimensions Ordering Guide
