TiMing characTerisTics. The. denotes the specifications which apply over the full operating

TiMing characTerisTics The denotes the specifications which apply over the full operating

Modelllinie für dieses Datenblatt

Textversion des Dokuments

LT3746
TiMing characTerisTics The
l

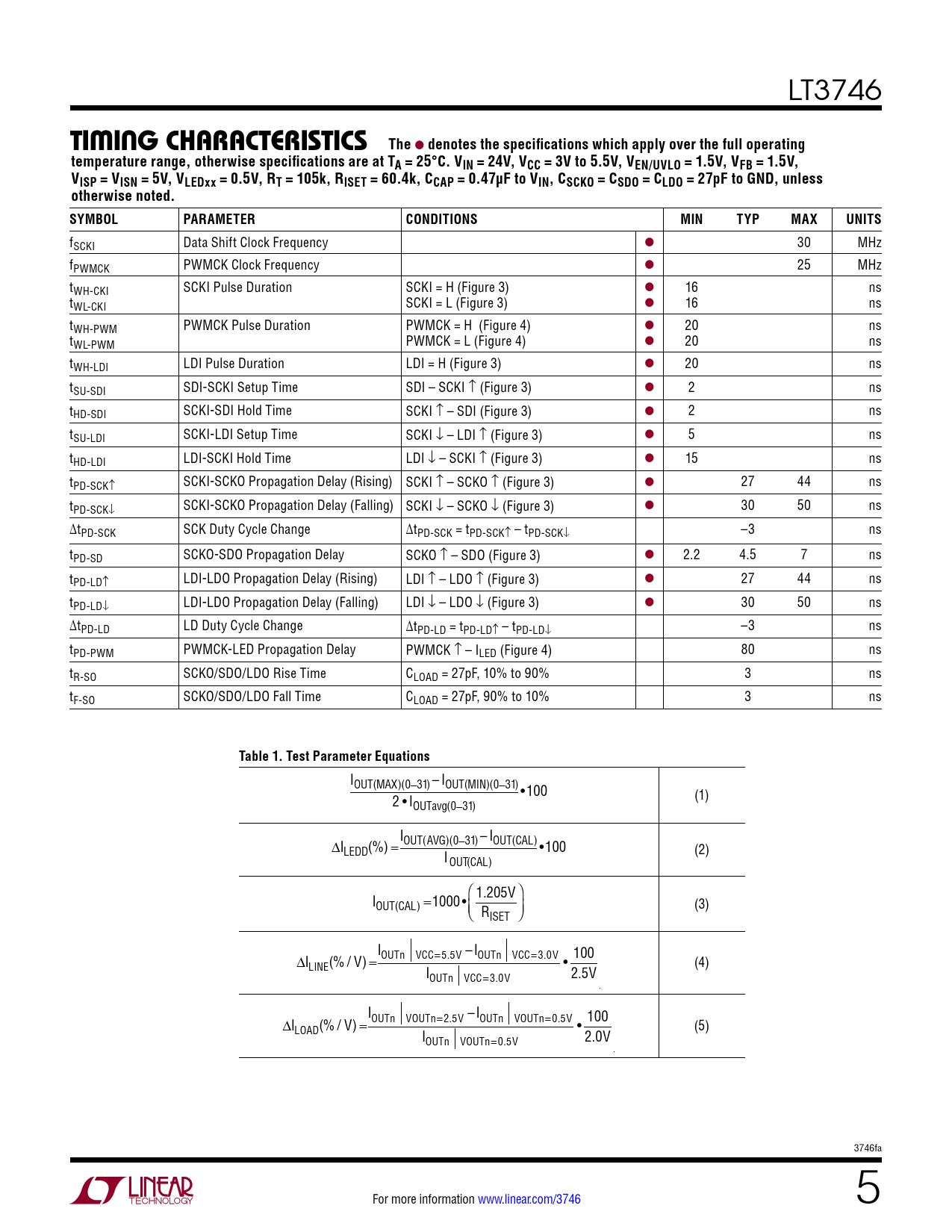

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 24V, VCC = 3V to 5.5V, VEN/UVLO = 1.5V, VFB = 1.5V, VISP = VISN = 5V, VLEDxx = 0.5V, RT = 105k, RISET = 60.4k, CCAP = 0.47µF to VIN, CSCKO = CSDO = CLDO = 27pF to GND, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
fSCKI Data Shift Clock Frequency l 30 MHz fPWMCK PWMCK Clock Frequency l 25 MHz tWH-CKI SCKI Pulse Duration SCKI = H (Figure 3) l 16 ns tWL-CKI SCKI = L (Figure 3) l 16 ns tWH-PWM PWMCK Pulse Duration PWMCK = H (Figure 4) l 20 ns tWL-PWM PWMCK = L (Figure 4) l 20 ns tWH-LDI LDI Pulse Duration LDI = H (Figure 3) l 20 ns tSU-SDI SDI-SCKI Setup Time SDI – SCKI ↑ (Figure 3) l 2 ns tHD-SDI SCKI-SDI Hold Time SCKI ↑ – SDI (Figure 3) l 2 ns tSU-LDI SCKI-LDI Setup Time SCKI ↓ – LDI ↑ (Figure 3) l 5 ns tHD-LDI LDI-SCKI Hold Time LDI ↓ – SCKI ↑ (Figure 3) l 15 ns tPD-SCK↑ SCKI-SCKO Propagation Delay (Rising) SCKI ↑ – SCKO ↑ (Figure 3) l 27 44 ns tPD-SCK↓ SCKI-SCKO Propagation Delay (Fal ing) SCKI ↓ – SCKO ↓ (Figure 3) l 30 50 ns ∆tPD-SCK SCK Duty Cycle Change ∆tPD-SCK = tPD-SCK↑ – tPD-SCK↓ –3 ns tPD-SD SCKO-SDO Propagation Delay SCKO ↑ – SDO (Figure 3) l 2.2 4.5 7 ns tPD-LD↑ LDI-LDO Propagation Delay (Rising) LDI ↑ – LDO ↑ (Figure 3) l 27 44 ns tPD-LD↓ LDI-LDO Propagation Delay (Fal ing) LDI ↓ – LDO ↓ (Figure 3) l 30 50 ns ∆tPD-LD LD Duty Cycle Change ∆tPD-LD = tPD-LD↑ – tPD-LD↓ –3 ns tPD-PWM PWMCK-LED Propagation Delay PWMCK ↑ – ILED (Figure 4) 80 ns tR-SO SCKO/SDO/LDO Rise Time CLOAD = 27pF, 10% to 90% 3 ns tF-SO SCKO/SDO/LDO Fal Time CLOAD = 27pF, 90% to 10% 3 ns
Table 1. Test Parameter Equations
IOUT(MAX)(0−31)–IOUT(MIN)(0−31)•100 2 • I (1) OUTavg(0−31) I ΔI OUT(AVG)(0−31) – IOUT(CAL) LEDD(%) = •100 I (2) OUT(CAL) ⎛ 1.205V⎞ IOUT(CAL) =1000•⎝⎜ RISET ⎠⎟ (3) I ∆I OUTn VCC=5.5V – IOUTn VCC=3.0V LINE(% / V) = • 100 (4) I 2.5V OUTn VCC=3.0V I ∆I OUTn VOUTn=2.5V – IOUTn VOUTn=0.5V LOAD(% / V) = • 100 (5) I 2.0V OUTn VOUTn=0.5V 3746fa For more information www.linear.com/3746 5 Document Outline Description Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Pin Functions Block Diagram Applications Information Typical Application Related Parts
