Datasheet LTC3588-2 (Analog Devices) - 2
| Hersteller | Analog Devices |
| Beschreibung | Nanopower Energy Harvesting Power Supply with 14V Minimum VIN |
| Seiten / Seite | 18 / 2 — ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION … |
| Dateiformat / Größe | PDF / 434 Kb |
| Dokumentensprache | Englisch |

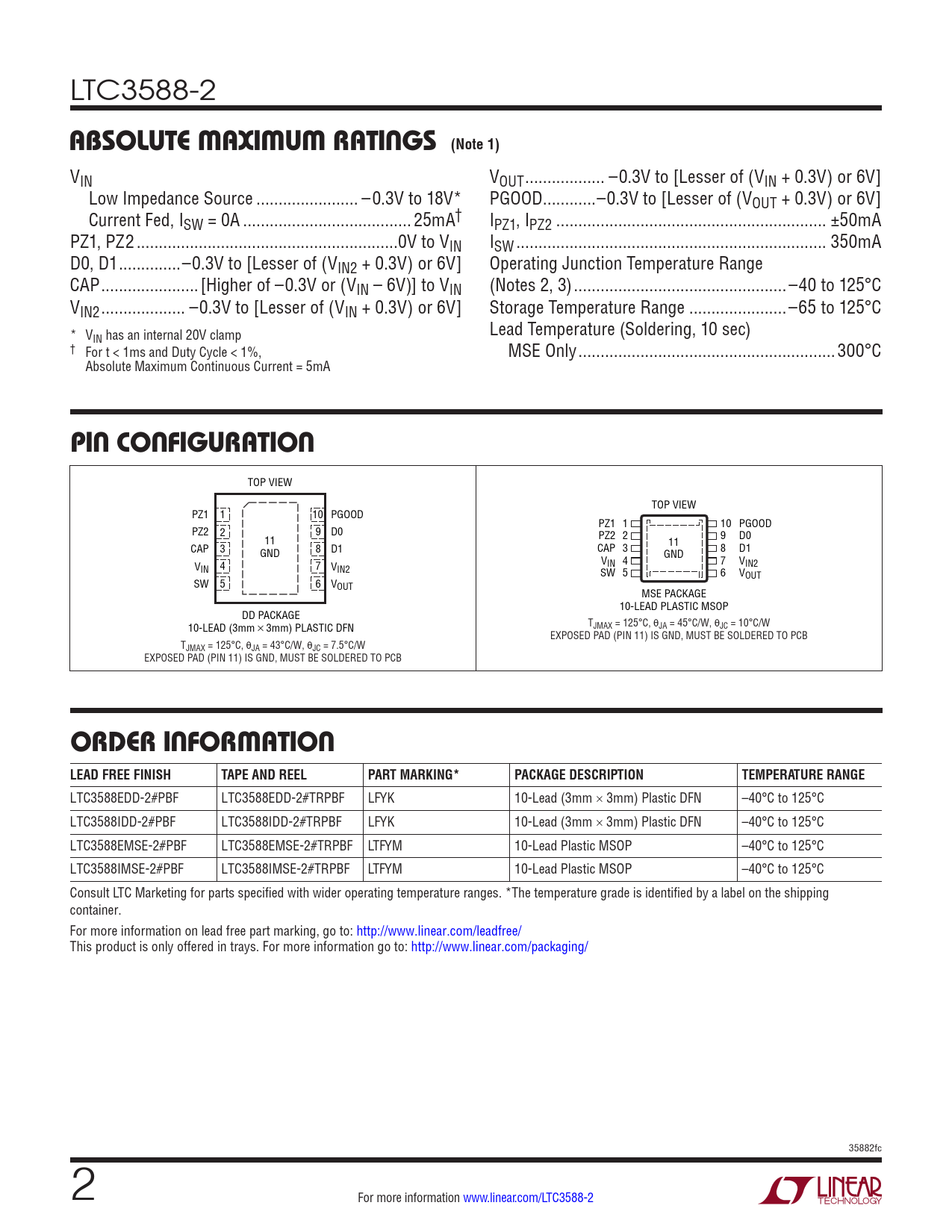

ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC3588-2
ABSOLUTE MAXIMUM RATINGS (Note 1)
VIN VOUT .. –0.3V to [Lesser of (VIN + 0.3V) or 6V] Low Impedance Source ... –0.3V to 18V* PGOOD ..–0.3V to [Lesser of (VOUT + 0.3V) or 6V] Current Fed, ISW = 0A ..25mA† IPZ1, IPZ2 ... ±50mA PZ1, PZ2 ...0V to VIN ISW .. 350mA D0, D1 ..–0.3V to [Lesser of (VIN2 + 0.3V) or 6V] Operating Junction Temperature Range CAP ..[Higher of –0.3V or (VIN – 6V)] to VIN (Notes 2, 3) ..–40 to 125°C VIN2 ... –0.3V to [Lesser of (VIN + 0.3V) or 6V] Storage Temperature Range ..–65 to 125°C Lead Temperature (Soldering, 10 sec) * VIN has an internal 20V clamp † For t < 1ms and Duty Cycle < 1%, MSE Only ..300°C Absolute Maximum Continuous Current = 5mA
PIN CONFIGURATION
TOP VIEW TOP VIEW PZ1 1 10 PGOOD PZ1 1 10 PGOOD PZ2 2 9 D0 11 PZ2 2 9 D0 11 CAP 3 GND 8 D1 CAP 3 8 D1 GND V VIN 4 7 VIN2 IN 4 7 VIN2 SW 5 6 VOUT SW 5 6 VOUT MSE PACKAGE 10-LEAD PLASTIC MSOP DD PACKAGE 10-LEAD (3mm × 3mm) PLASTIC DFN TJMAX = 125°C, θJA = 45°C/W, θJC = 10°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB TJMAX = 125°C, θJA = 43°C/W, θJC = 7.5°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3588EDD-2#PBF LTC3588EDD-2#TRPBF LFYK 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3588IDD-2#PBF LTC3588IDD-2#TRPBF LFYK 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3588EMSE-2#PBF LTC3588EMSE-2#TRPBF LTFYM 10-Lead Plastic MSOP –40°C to 125°C LTC3588IMSE-2#PBF LTC3588IMSE-2#TRPBF LTFYM 10-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http://www.linear.com/packaging/ 35882fc 2 For more information www.linear.com/LTC3588-2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Revision History Typical Application Related Parts
