Datasheet LTC3700 (Analog Devices) - 3
| Hersteller | Analog Devices |
| Beschreibung | Constant Frequency Step-Down DC/DC Controller with LDO Regulator |
| Seiten / Seite | 16 / 3 — ELECTRICAL CHARACTERISTICS The. denotes specifications that apply over … |
| Dateiformat / Größe | PDF / 221 Kb |
| Dokumentensprache | Englisch |

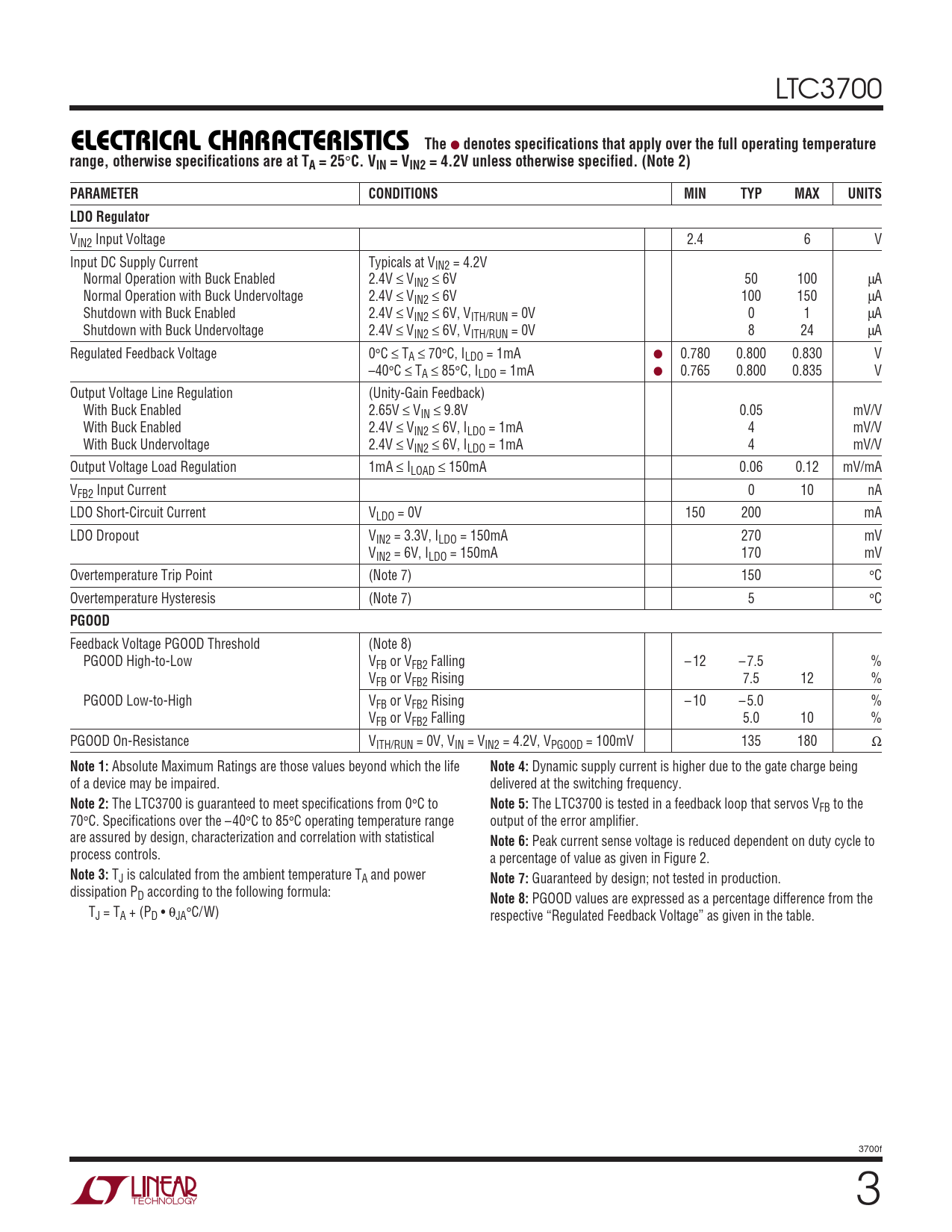

ELECTRICAL CHARACTERISTICS The. denotes specifications that apply over the full operating temperature
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC3700
ELECTRICAL CHARACTERISTICS The
●
denotes specifications that apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VIN = VIN2 = 4.2V unless otherwise specified. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS LDO Regulator
VIN2 Input Voltage 2.4 6 V Input DC Supply Current Typicals at VIN2 = 4.2V Normal Operation with Buck Enabled 2.4V ≤ VIN2 ≤ 6V 50 100 µA Normal Operation with Buck Undervoltage 2.4V ≤ VIN2 ≤ 6V 100 150 µA Shutdown with Buck Enabled 2.4V ≤ VIN2 ≤ 6V, VITH/RUN = 0V 0 1 µA Shutdown with Buck Undervoltage 2.4V ≤ VIN2 ≤ 6V, VITH/RUN = 0V 8 24 µA Regulated Feedback Voltage 0°C ≤ TA ≤ 70°C, ILDO = 1mA ● 0.780 0.800 0.830 V –40°C ≤ TA ≤ 85°C, ILDO = 1mA ● 0.765 0.800 0.835 V Output Voltage Line Regulation (Unity-Gain Feedback) With Buck Enabled 2.65V ≤ VIN ≤ 9.8V 0.05 mV/V With Buck Enabled 2.4V ≤ VIN2 ≤ 6V, ILDO = 1mA 4 mV/V With Buck Undervoltage 2.4V ≤ VIN2 ≤ 6V, ILDO = 1mA 4 mV/V Output Voltage Load Regulation 1mA ≤ ILOAD ≤ 150mA 0.06 0.12 mV/mA VFB2 Input Current 0 10 nA LDO Short-Circuit Current VLDO = 0V 150 200 mA LDO Dropout VIN2 = 3.3V, ILDO = 150mA 270 mV VIN2 = 6V, ILDO = 150mA 170 mV Overtemperature Trip Point (Note 7) 150 °C Overtemperature Hysteresis (Note 7) 5 °C
PGOOD
Feedback Voltage PGOOD Threshold (Note 8) PGOOD High-to-Low VFB or VFB2 Falling – 12 – 7.5 % VFB or VFB2 Rising 7.5 12 % PGOOD Low-to-High VFB or VFB2 Rising – 10 – 5.0 % VFB or VFB2 Falling 5.0 10 % PGOOD On-Resistance VITH/RUN = 0V, VIN = VIN2 = 4.2V, VPGOOD = 100mV 135 180 Ω
