Datasheet LTC3534 (Analog Devices) - 5

HerstellerAnalog Devices
Beschreibung7V, 500mA Synchronous Buck-Boost DC/DC Converter
Seiten / Seite20 / 5 — Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. …
Dateiformat / GrößePDF / 468 Kb
DokumentenspracheEnglisch

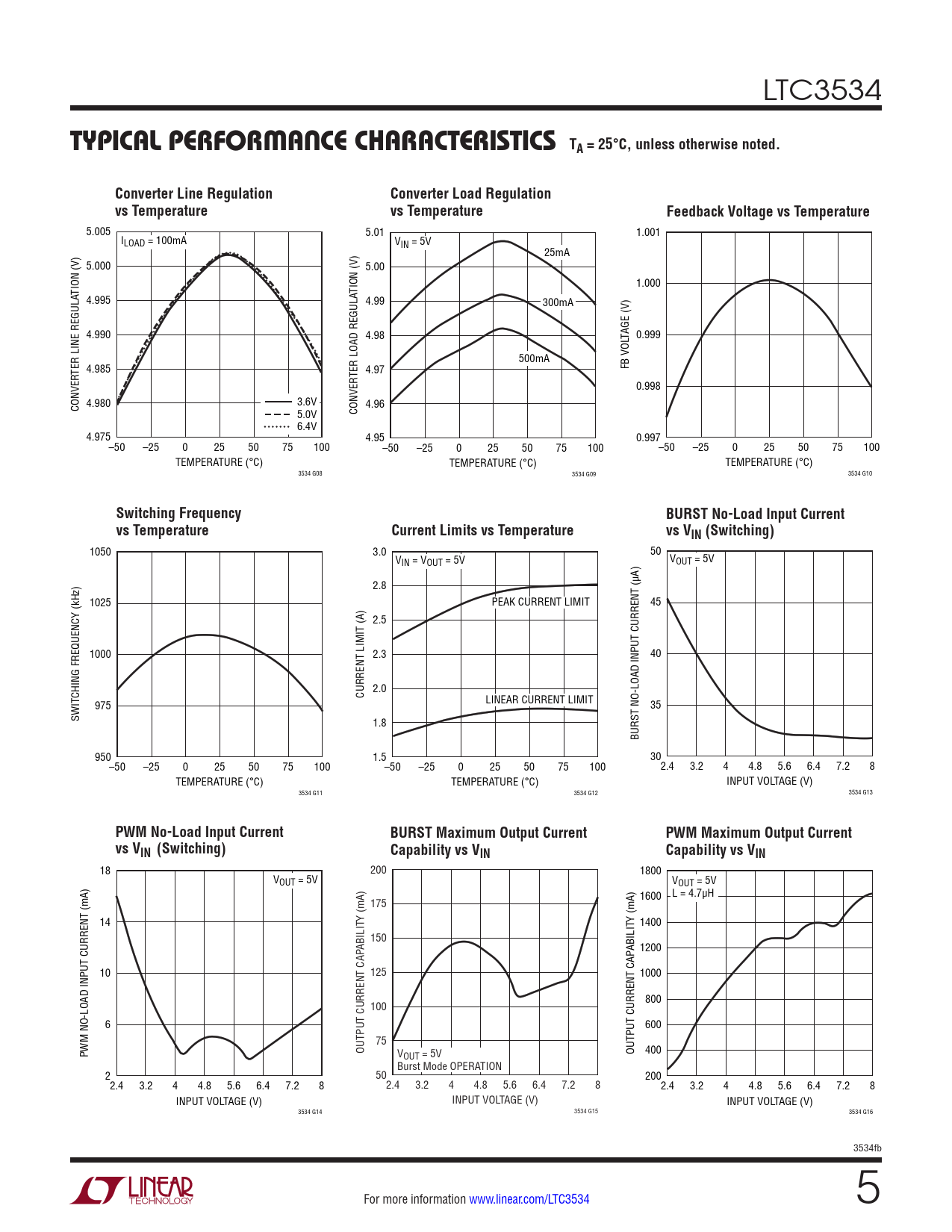

Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. Converter Line Regulation. Converter Load Regulation

Typical perForMance characTerisTics TA = 25°C, unless otherwise noted Converter Line Regulation Converter Load Regulation

Modelllinie für dieses Datenblatt

Textversion des Dokuments

LTC3534
Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. Converter Line Regulation Converter Load Regulation vs Temperature vs Temperature Feedback Voltage vs Temperature
5.005 5.01 1.001 ILOAD = 100mA VIN = 5V 25mA 5.000 5.00 1.000 TION (V) TION (V) 4.995 4.99 300mA 4.990 4.98 TAGE (V) 0.999 500mA TER LINE REGULA 4.985 FB VOL TER LOAD REGULA 4.97 0.998 CONVER 4.980 3.6V 4.96 5.0V CONVER 6.4V 4.975 4.95 0.997 –50 –25 0 25 50 75 100 –50 –25 0 25 50 75 100 –50 –25 0 25 50 75 100 TEMPERATURE (°C) TEMPERATURE (°C) TEMPERATURE (°C) 3534 G08 3534 G09 3534 G10
